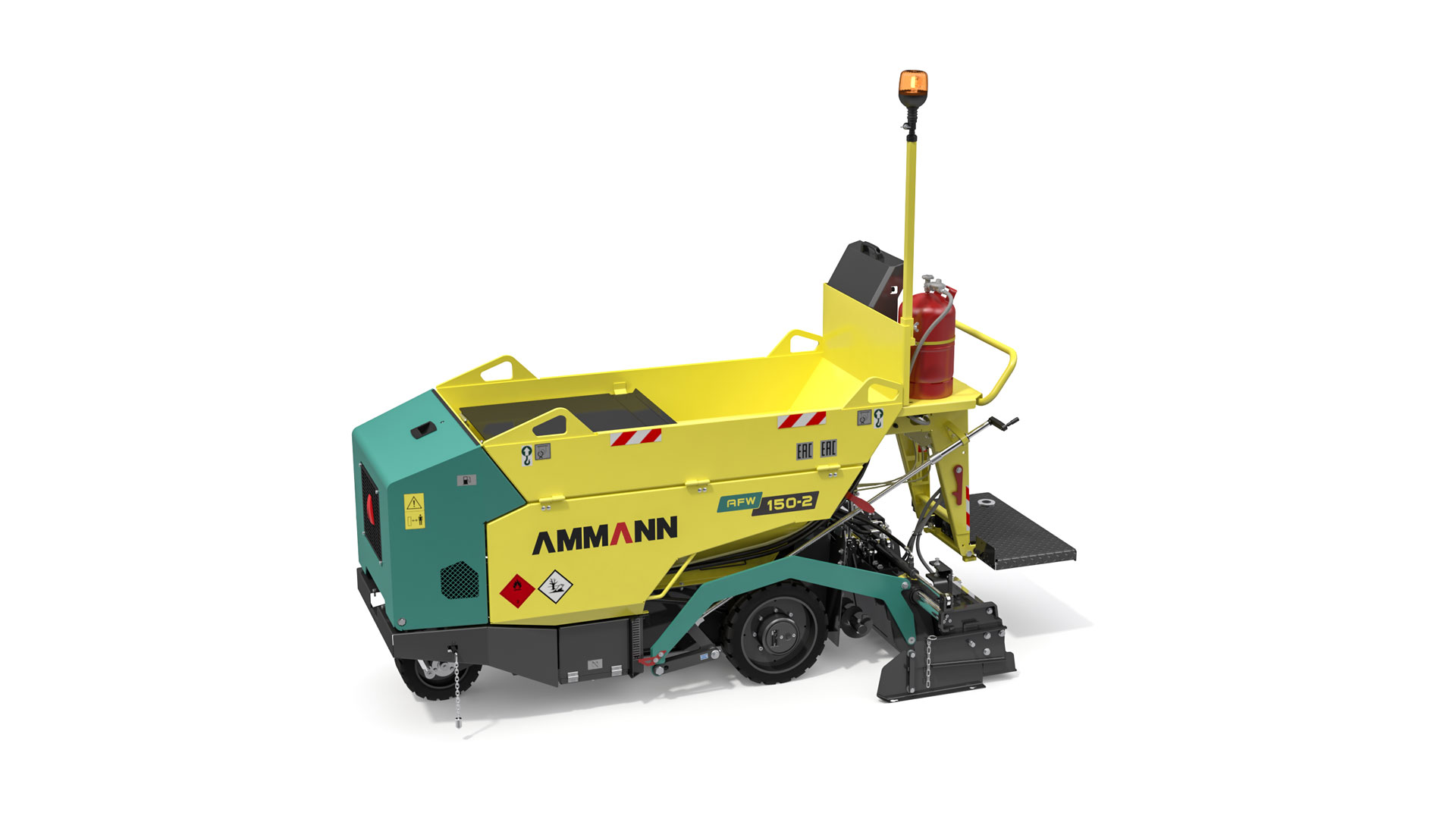

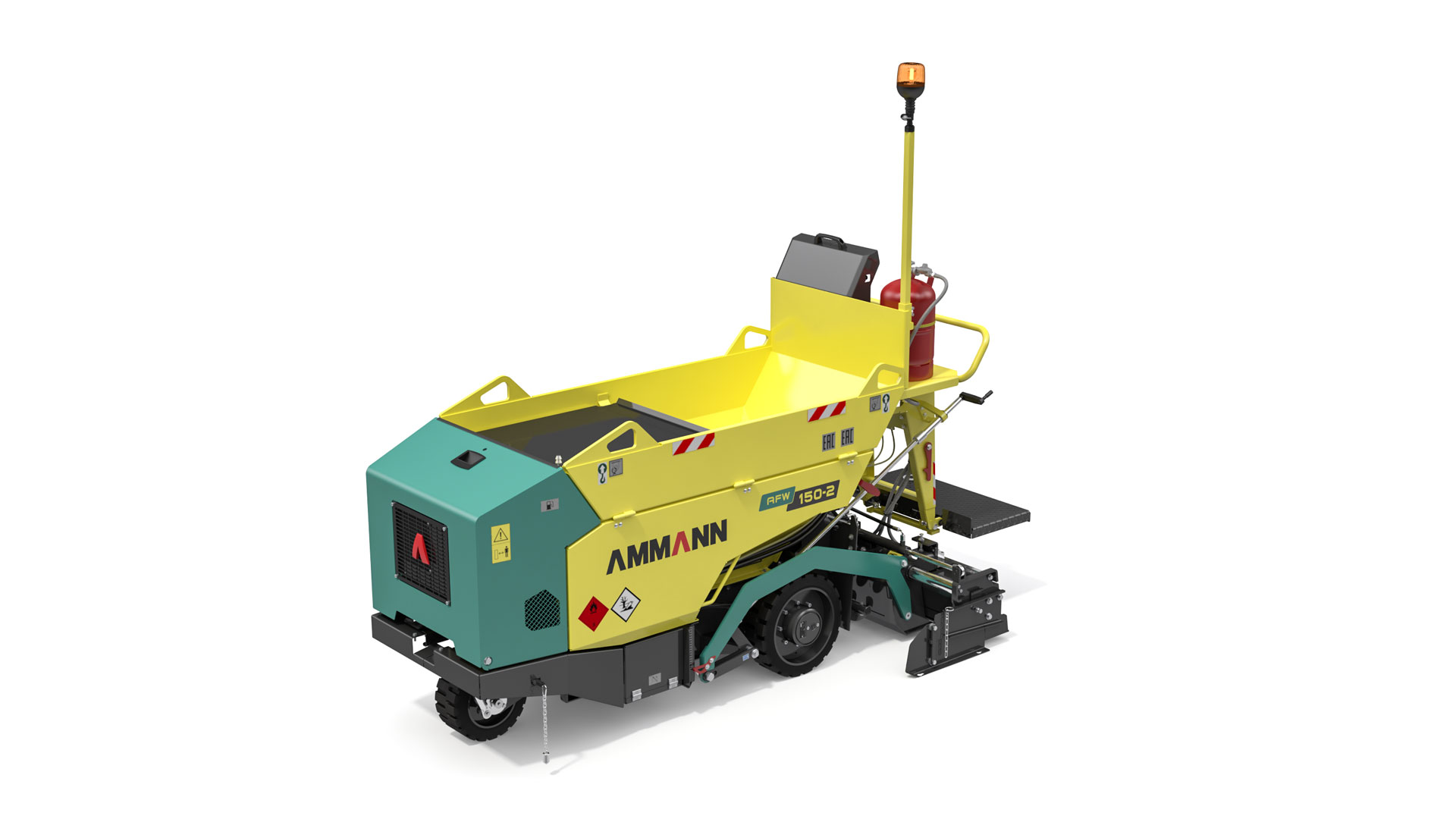

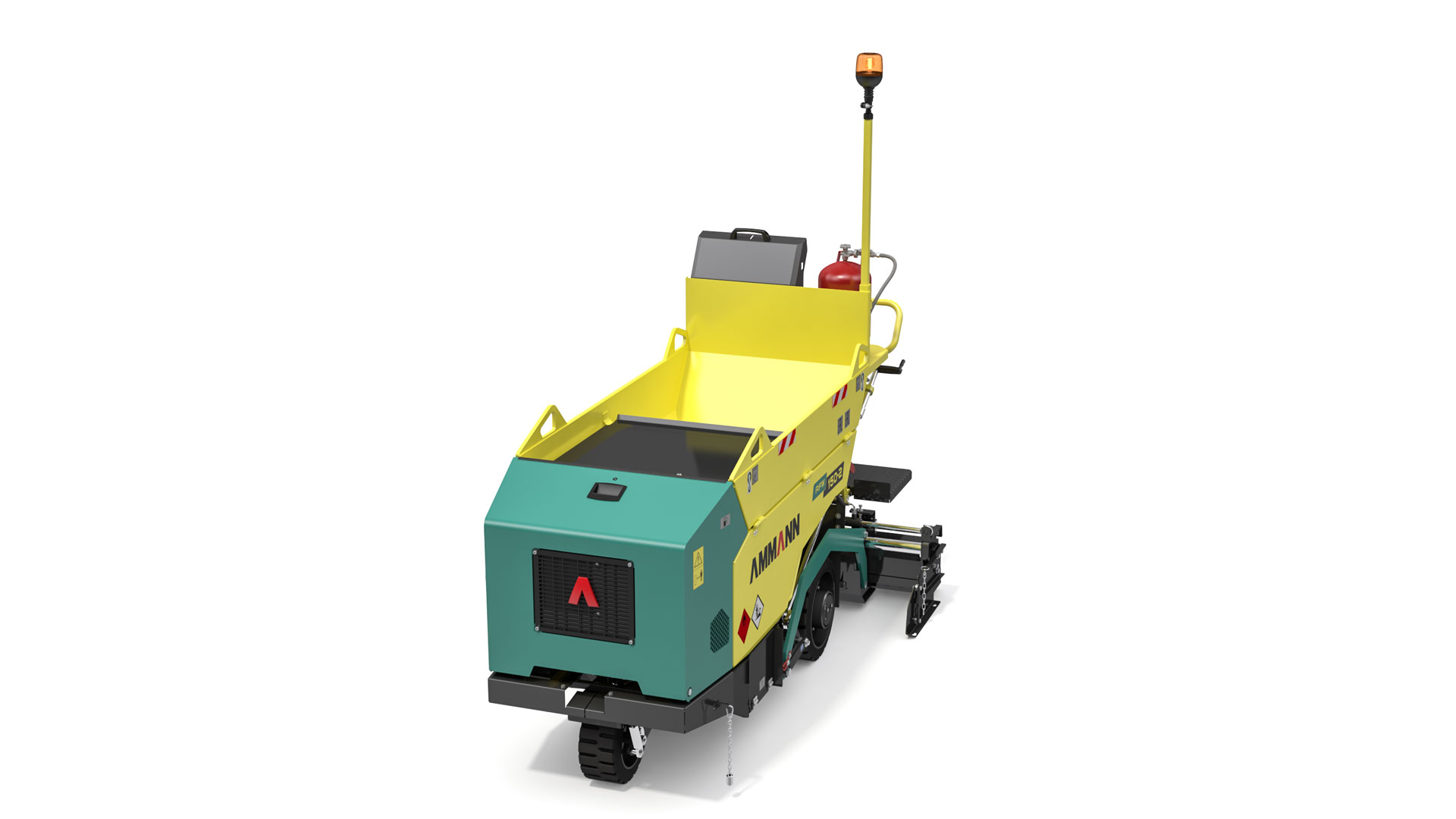

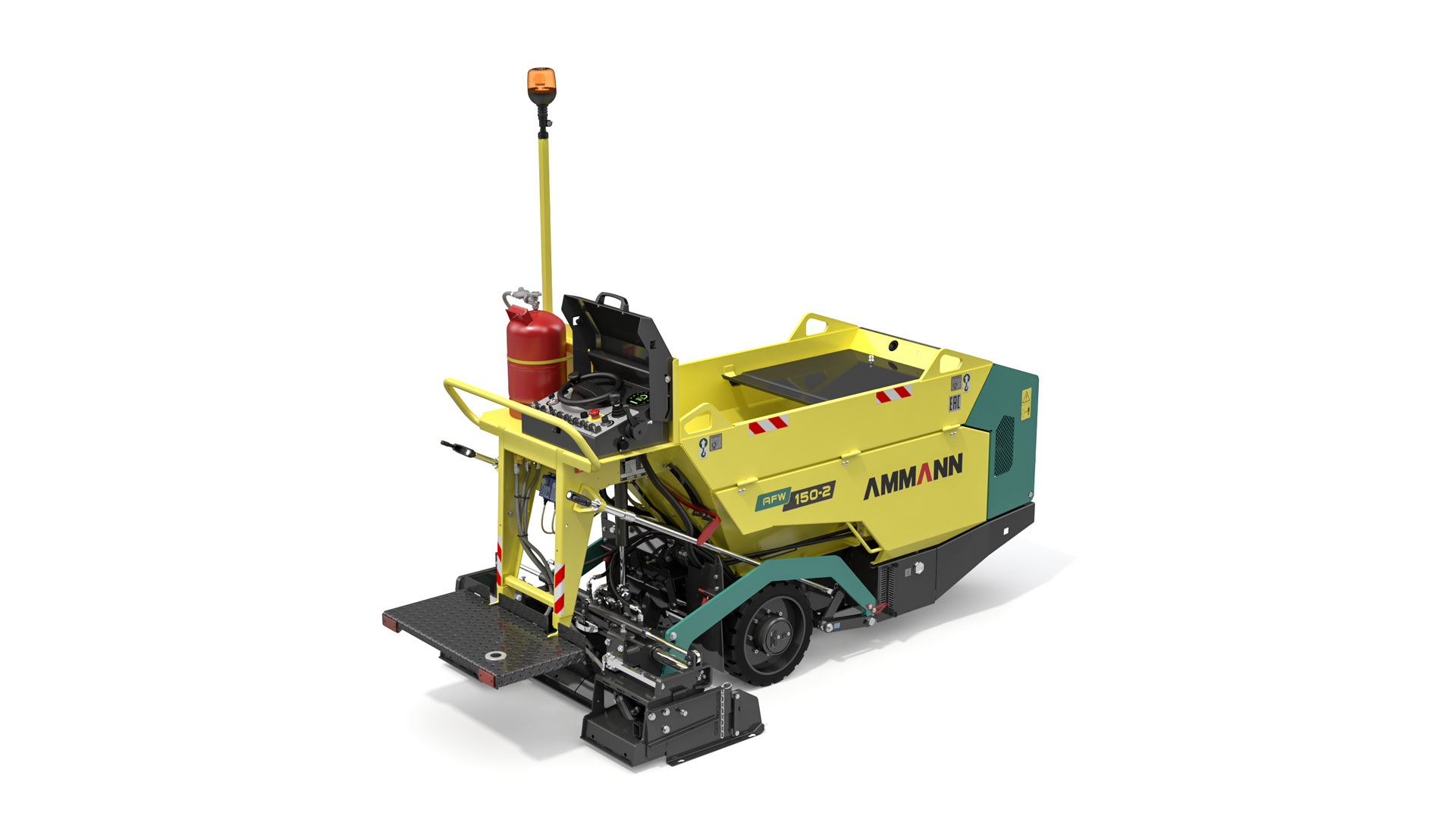

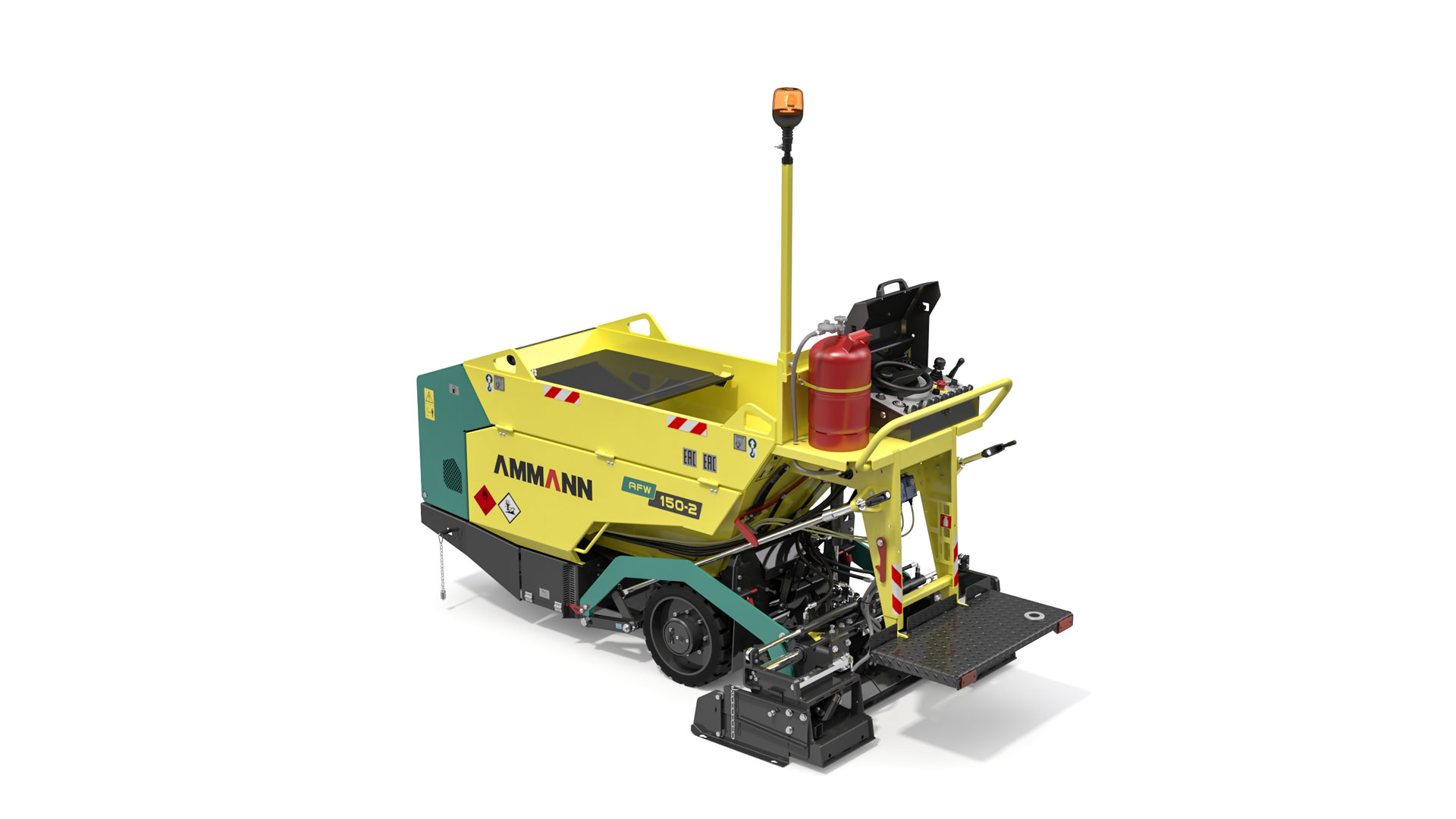

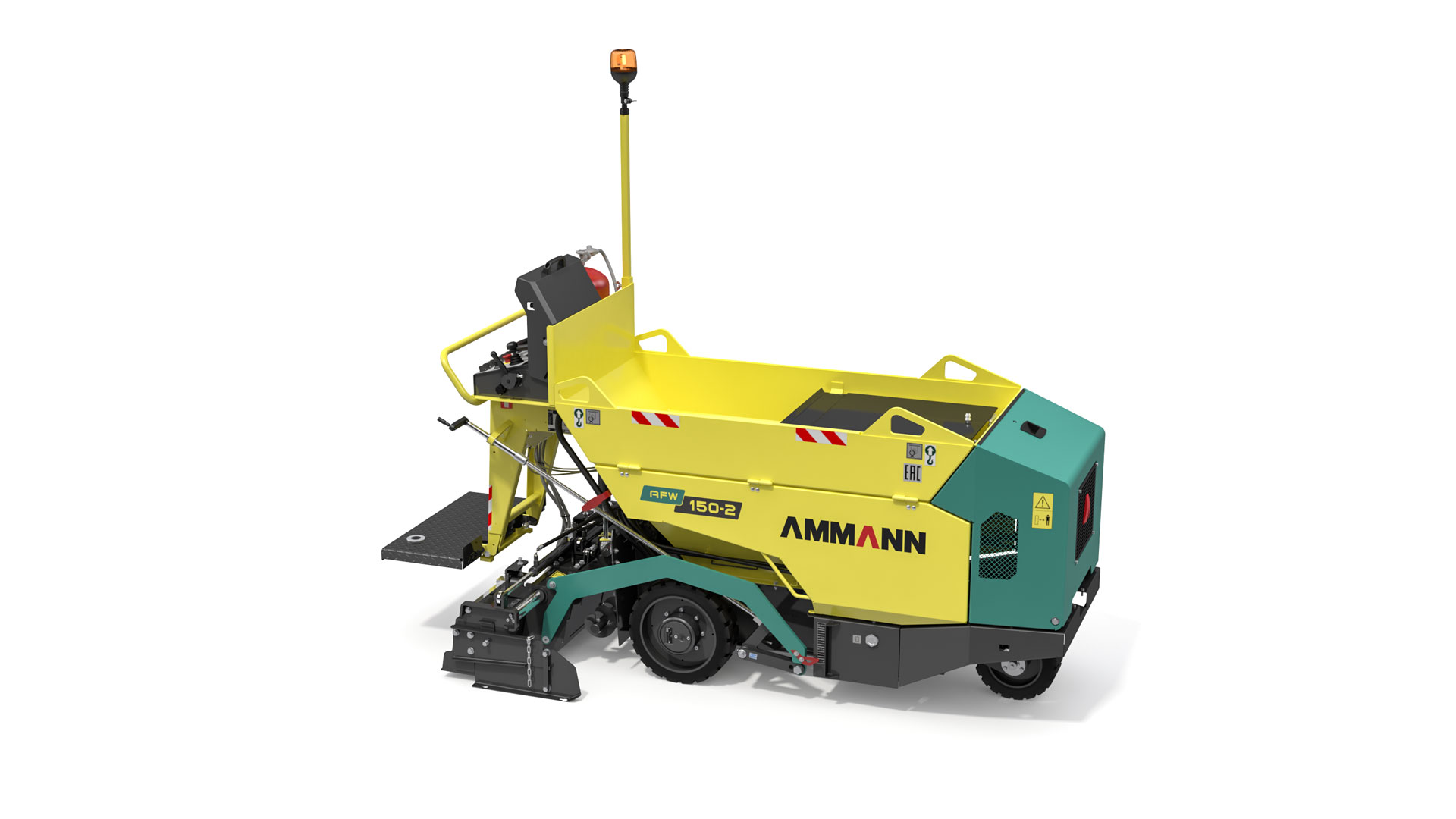

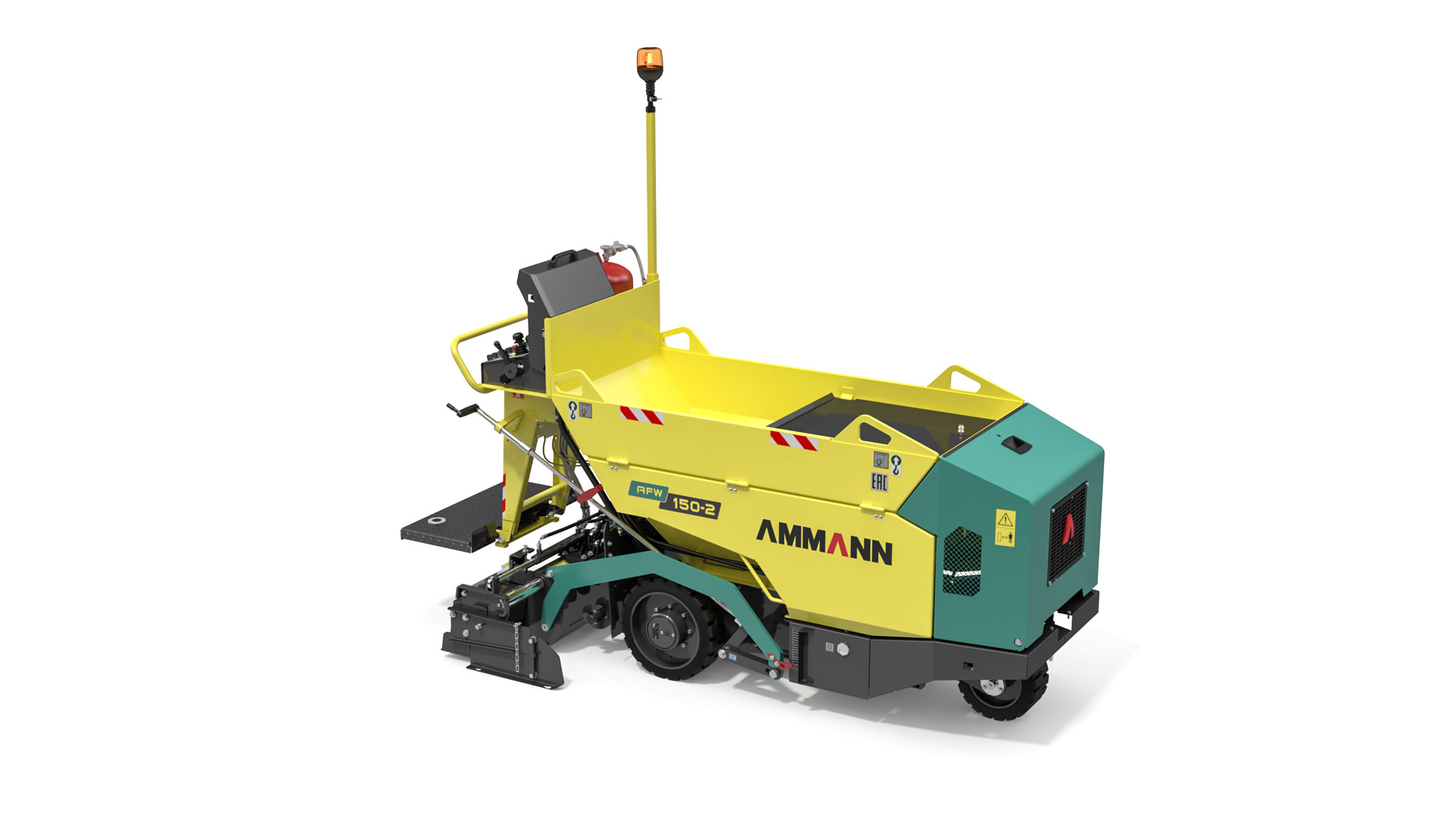

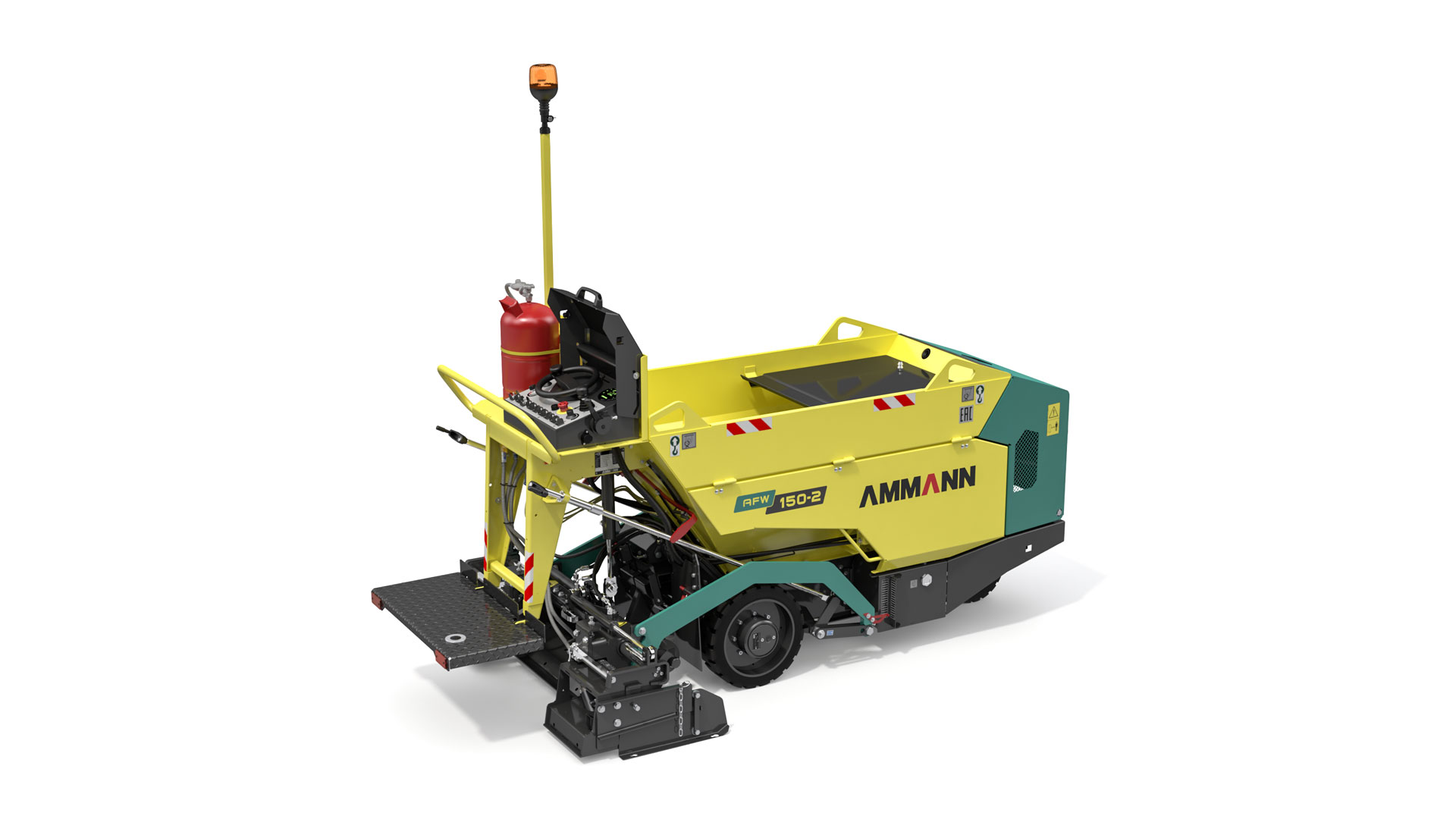

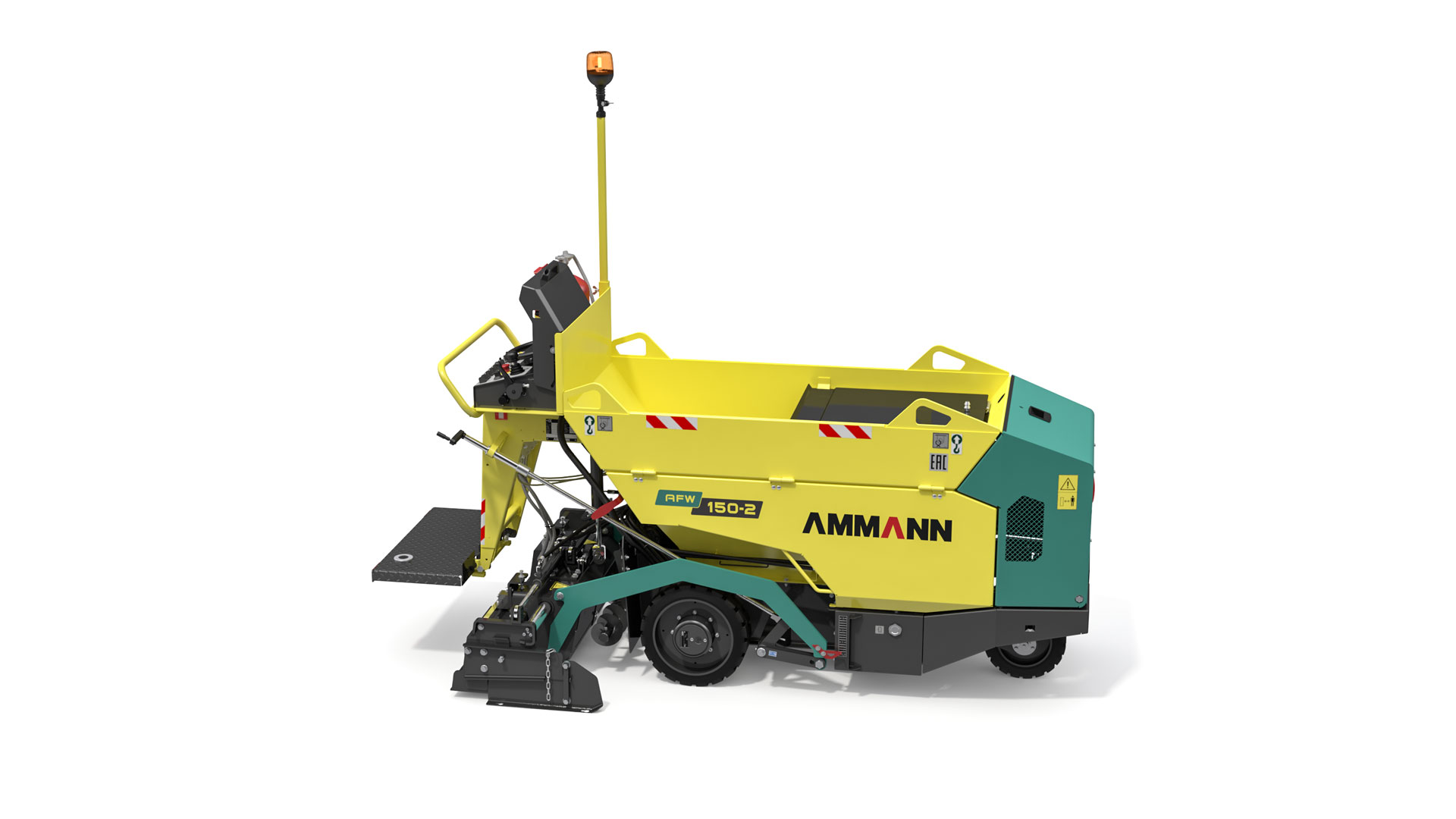

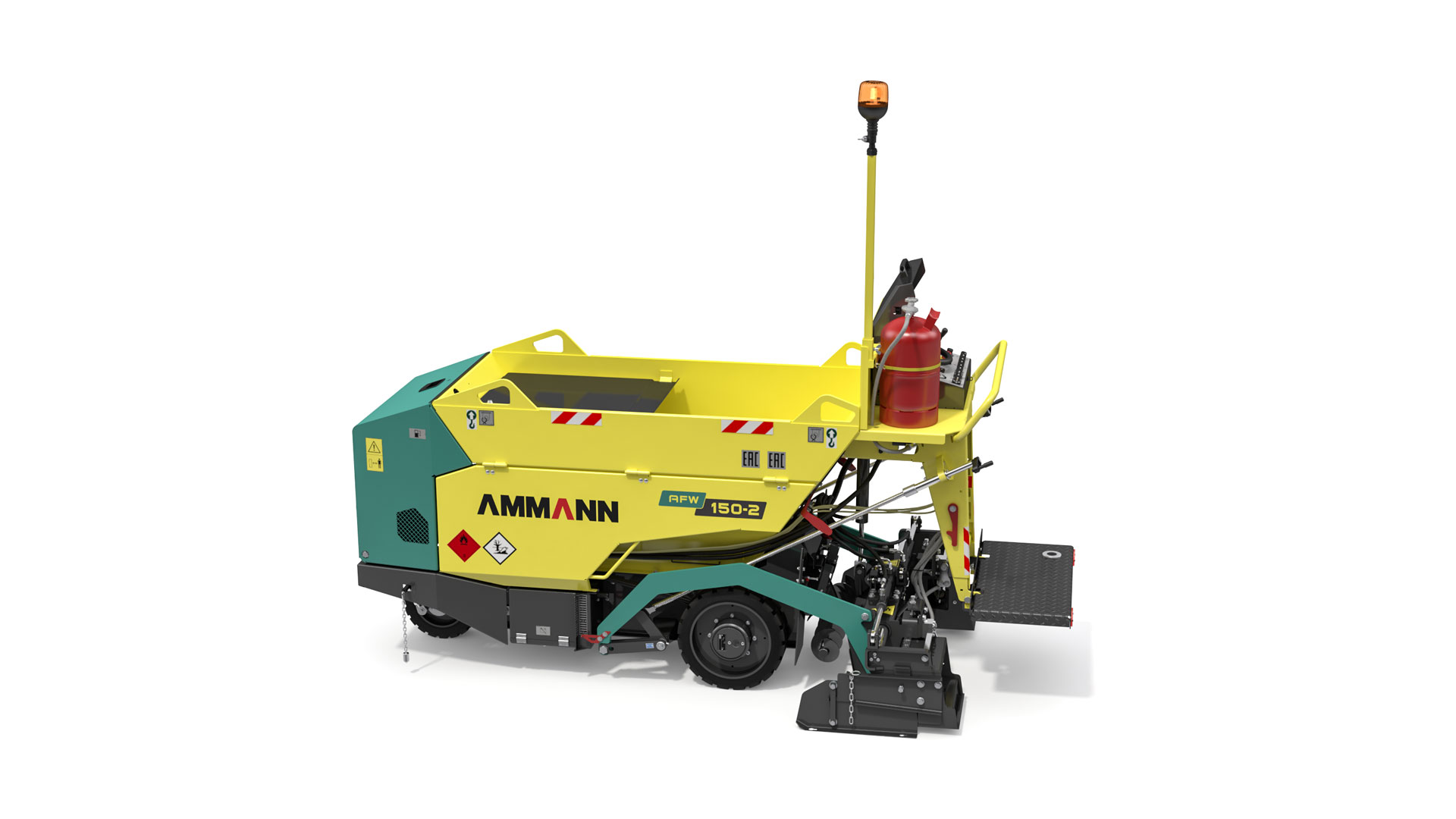

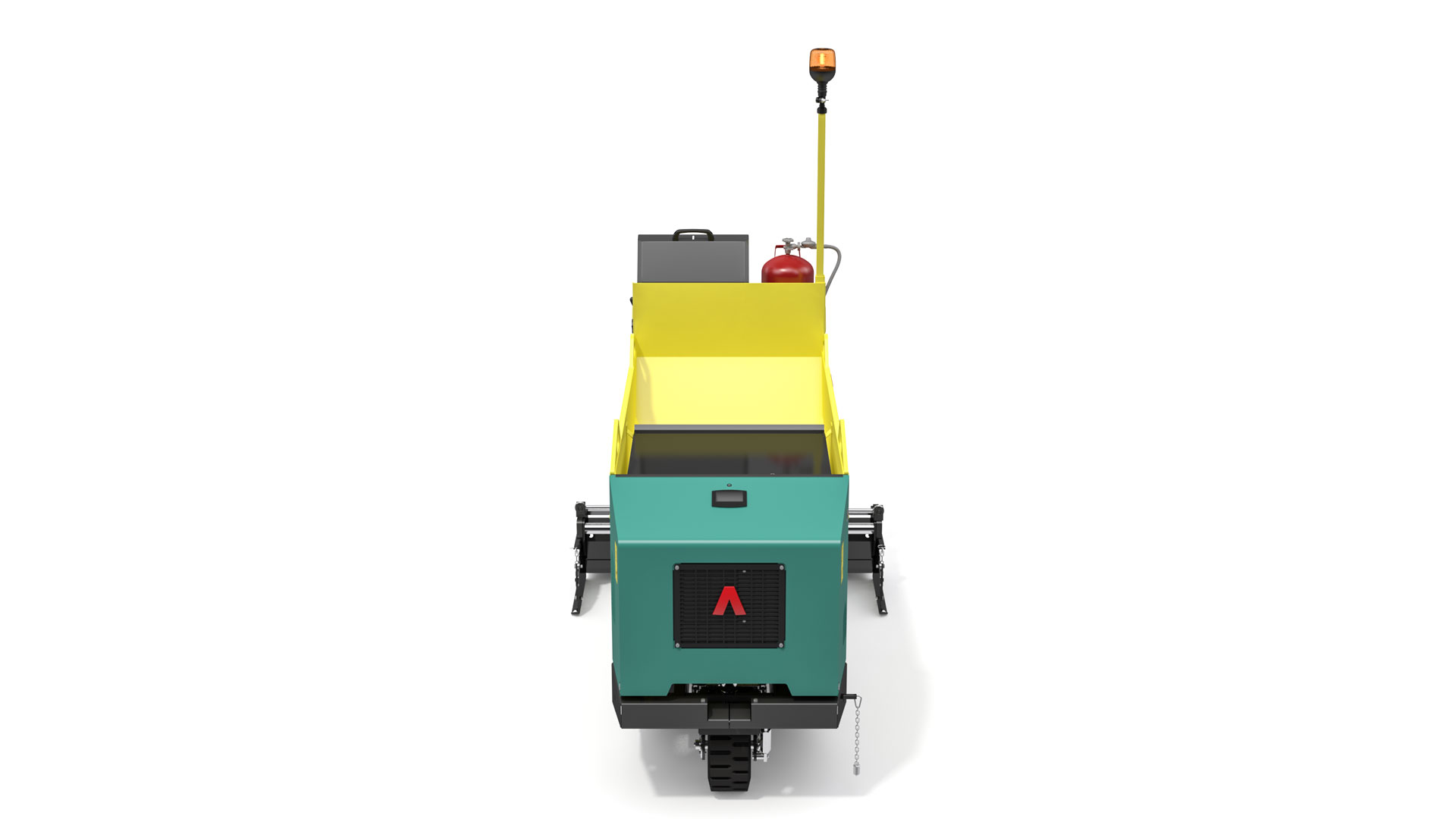

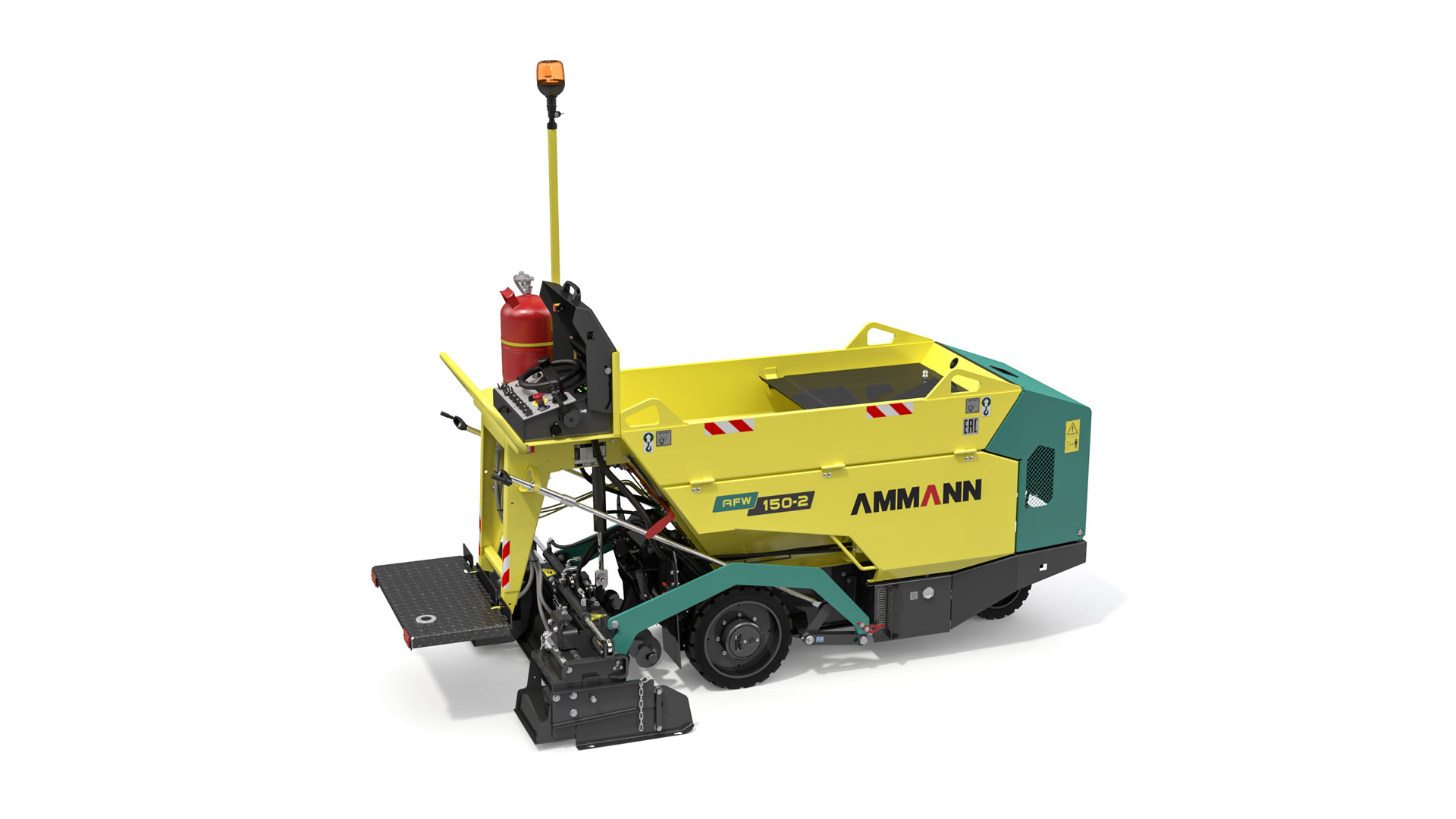

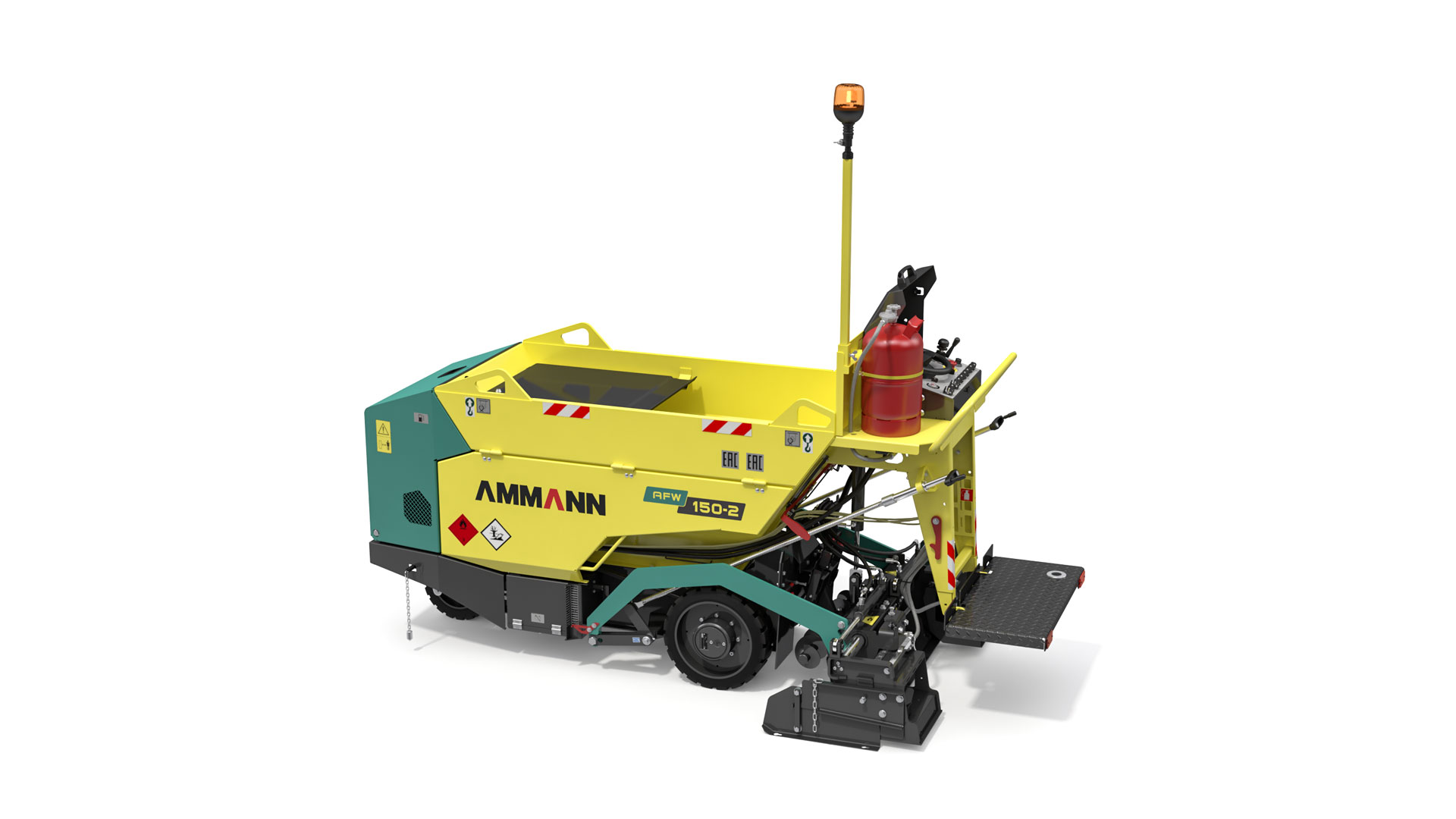

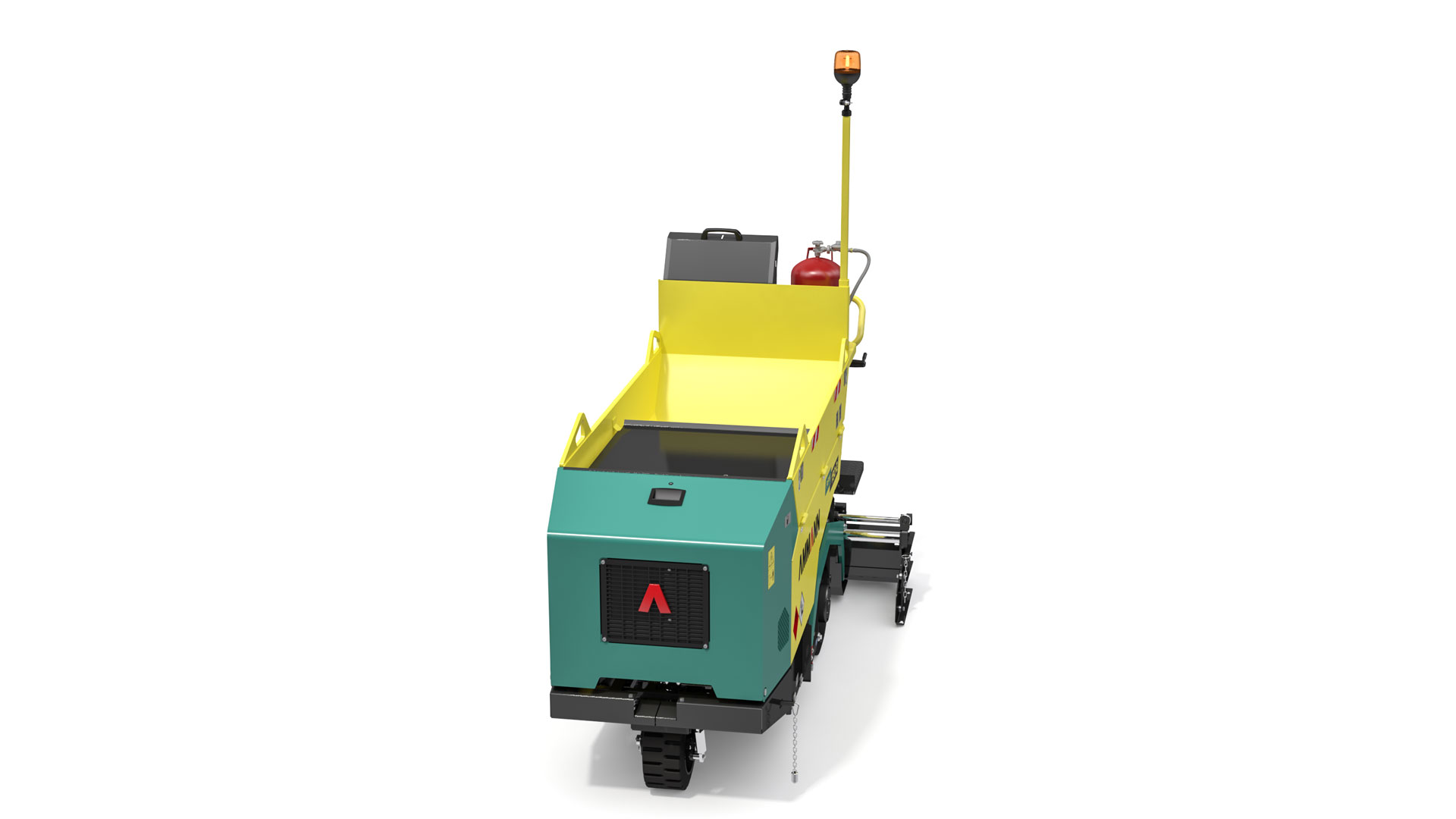

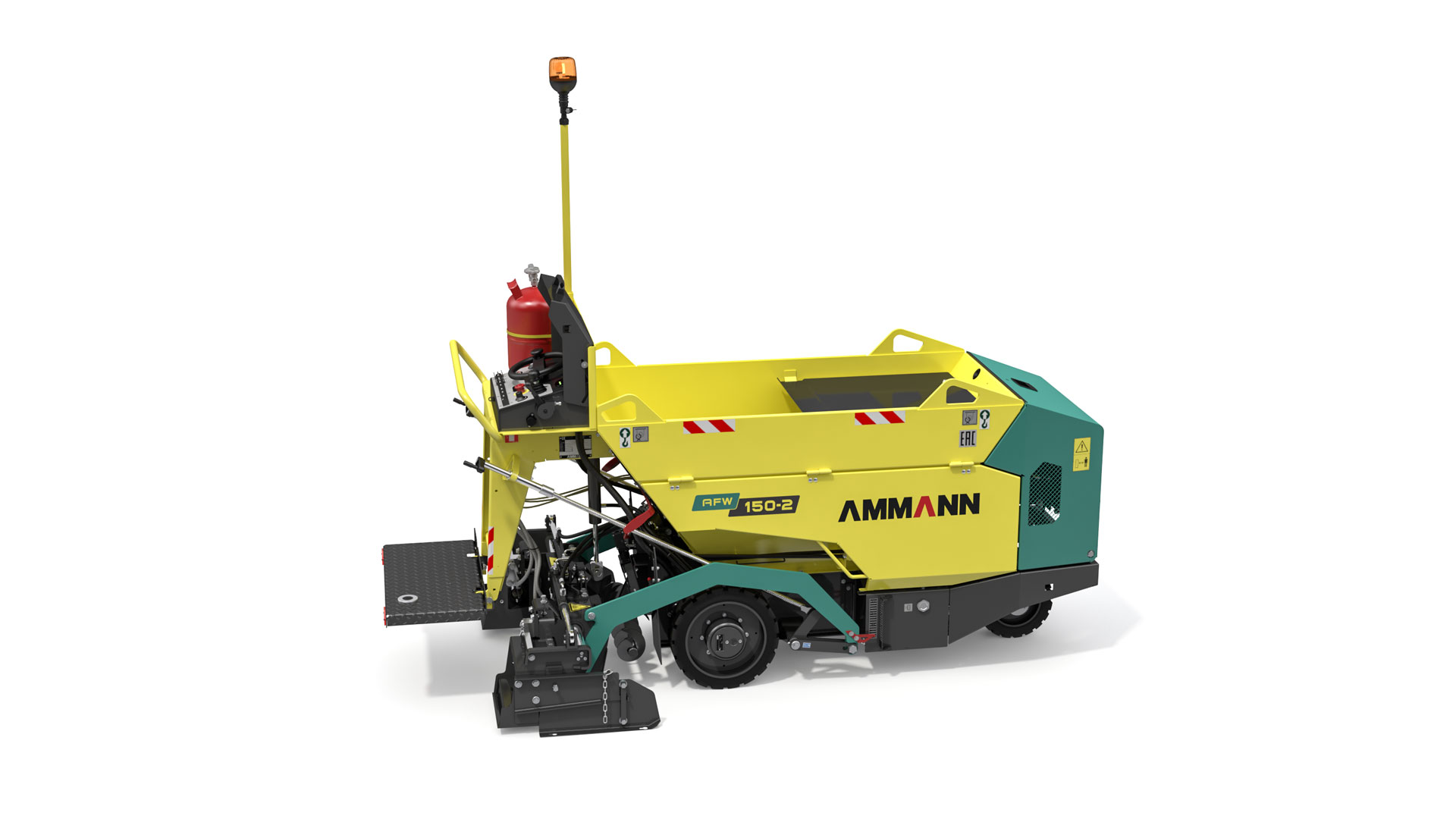

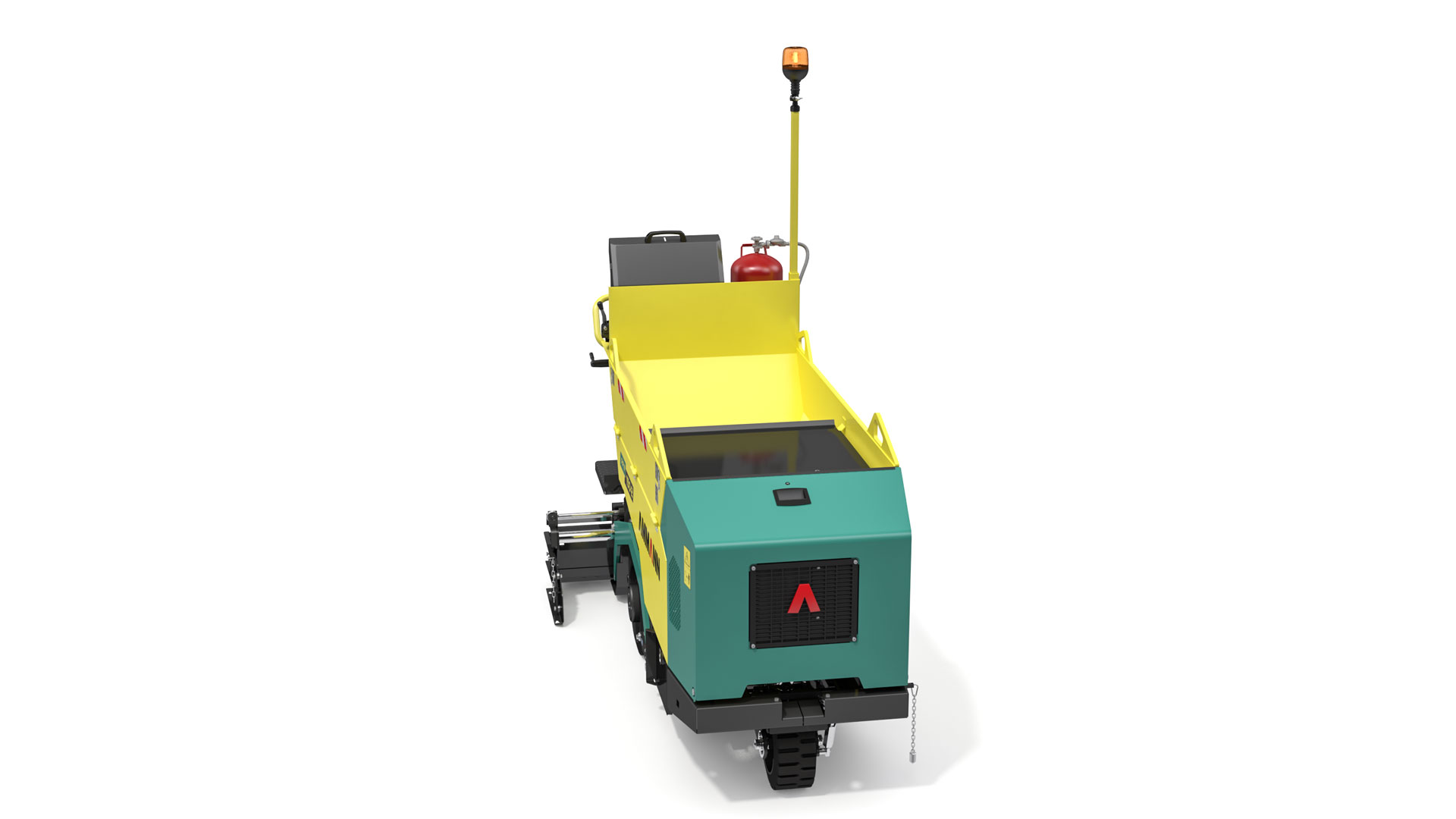

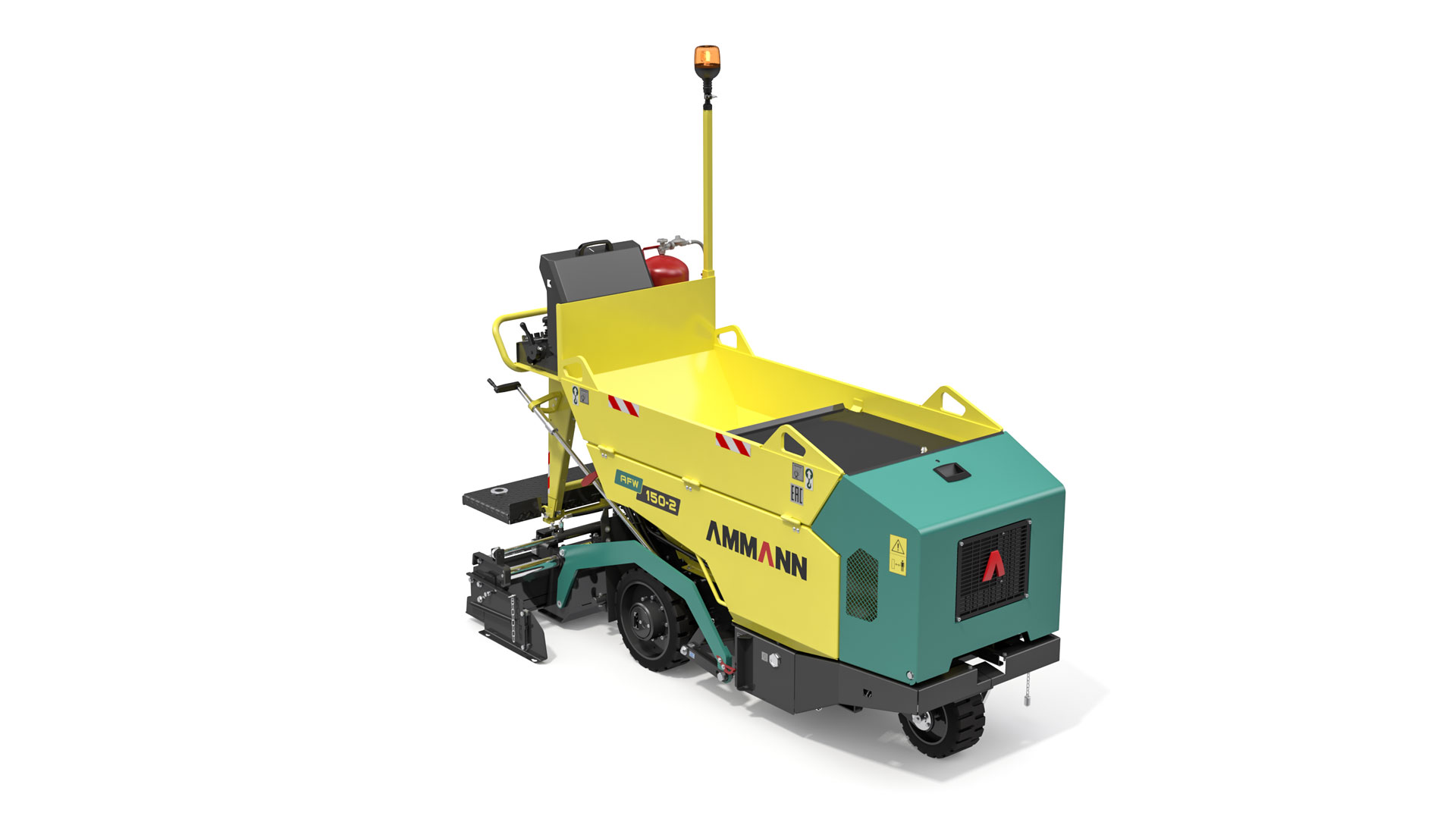

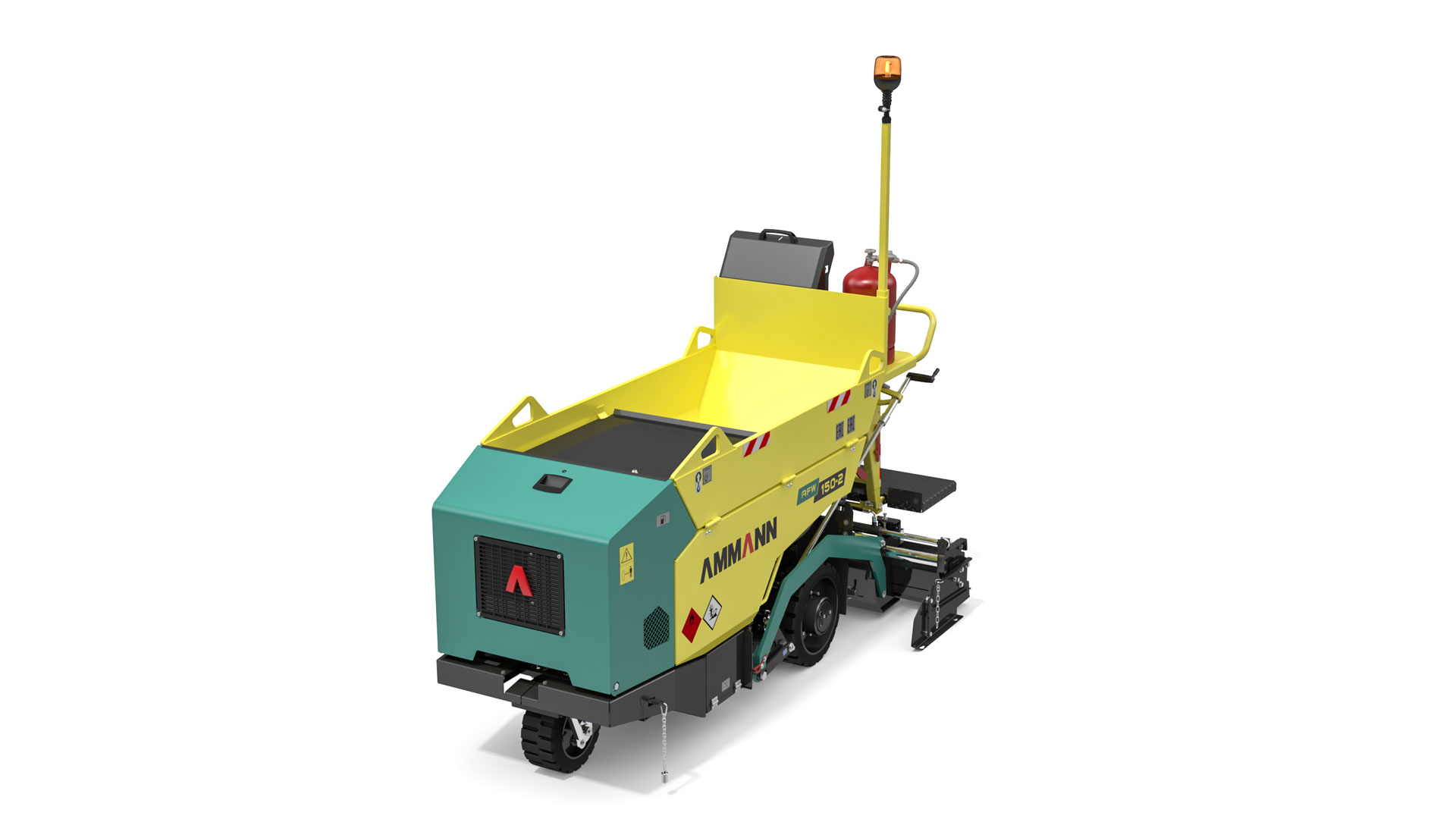

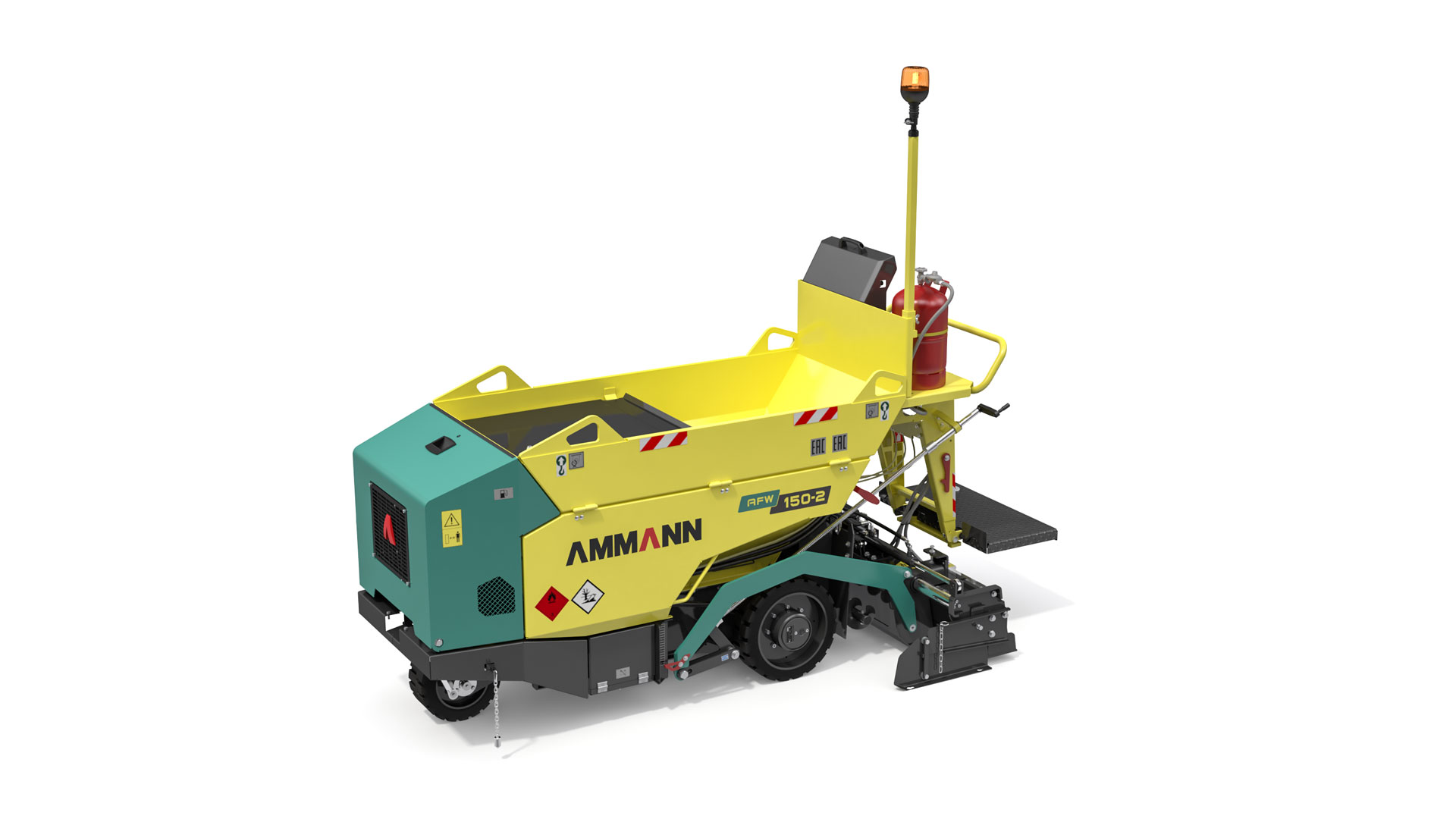

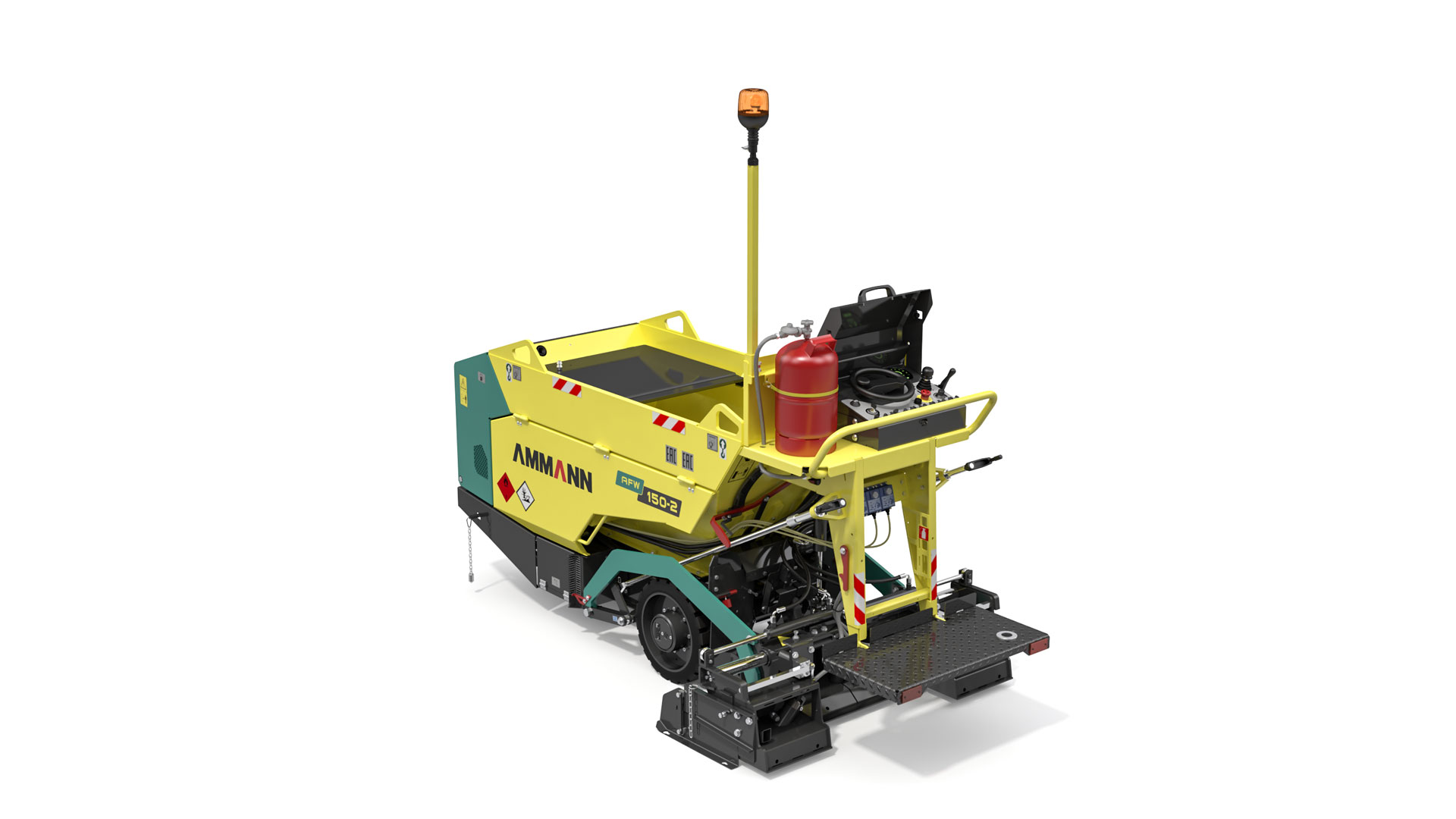

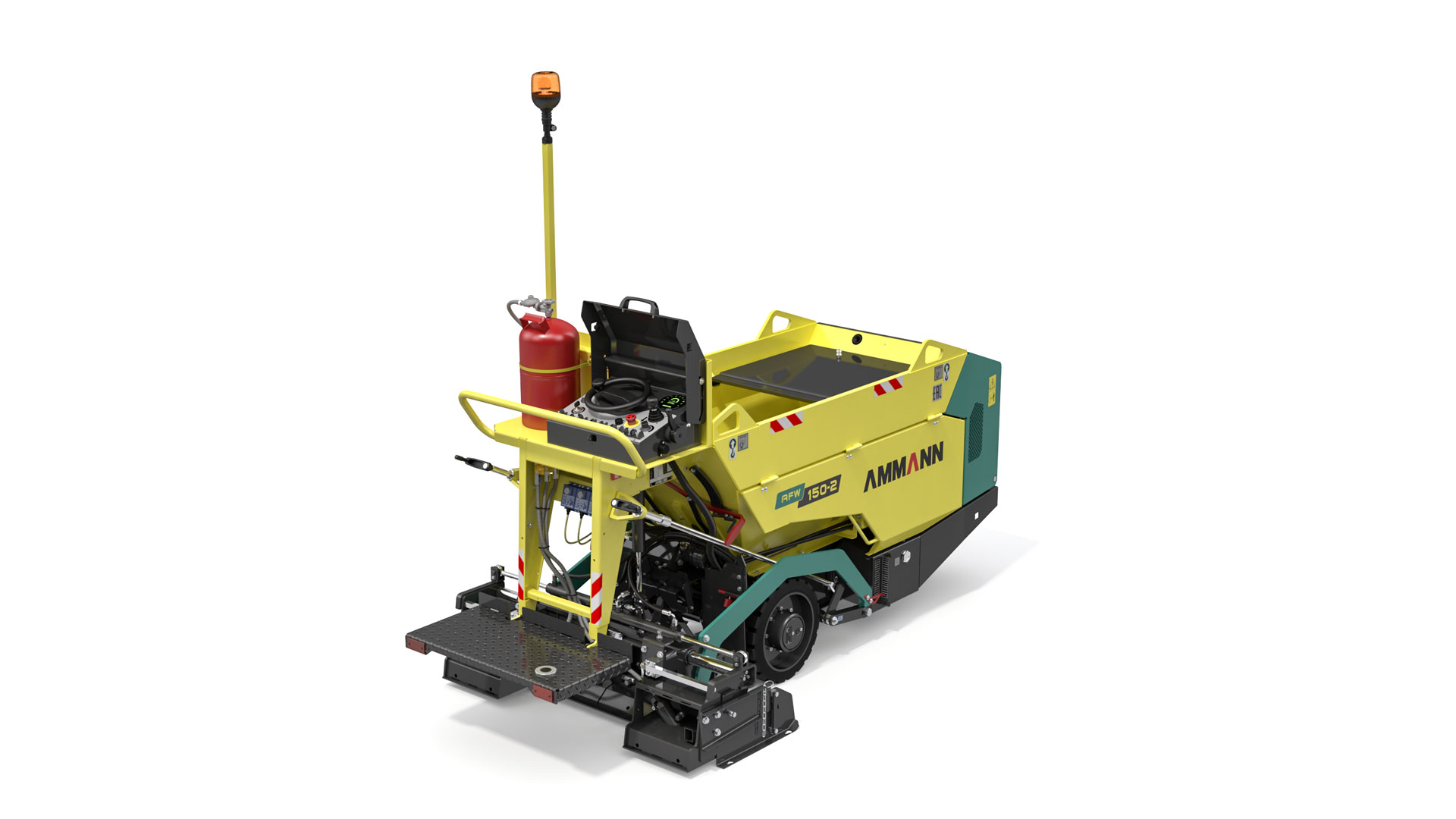

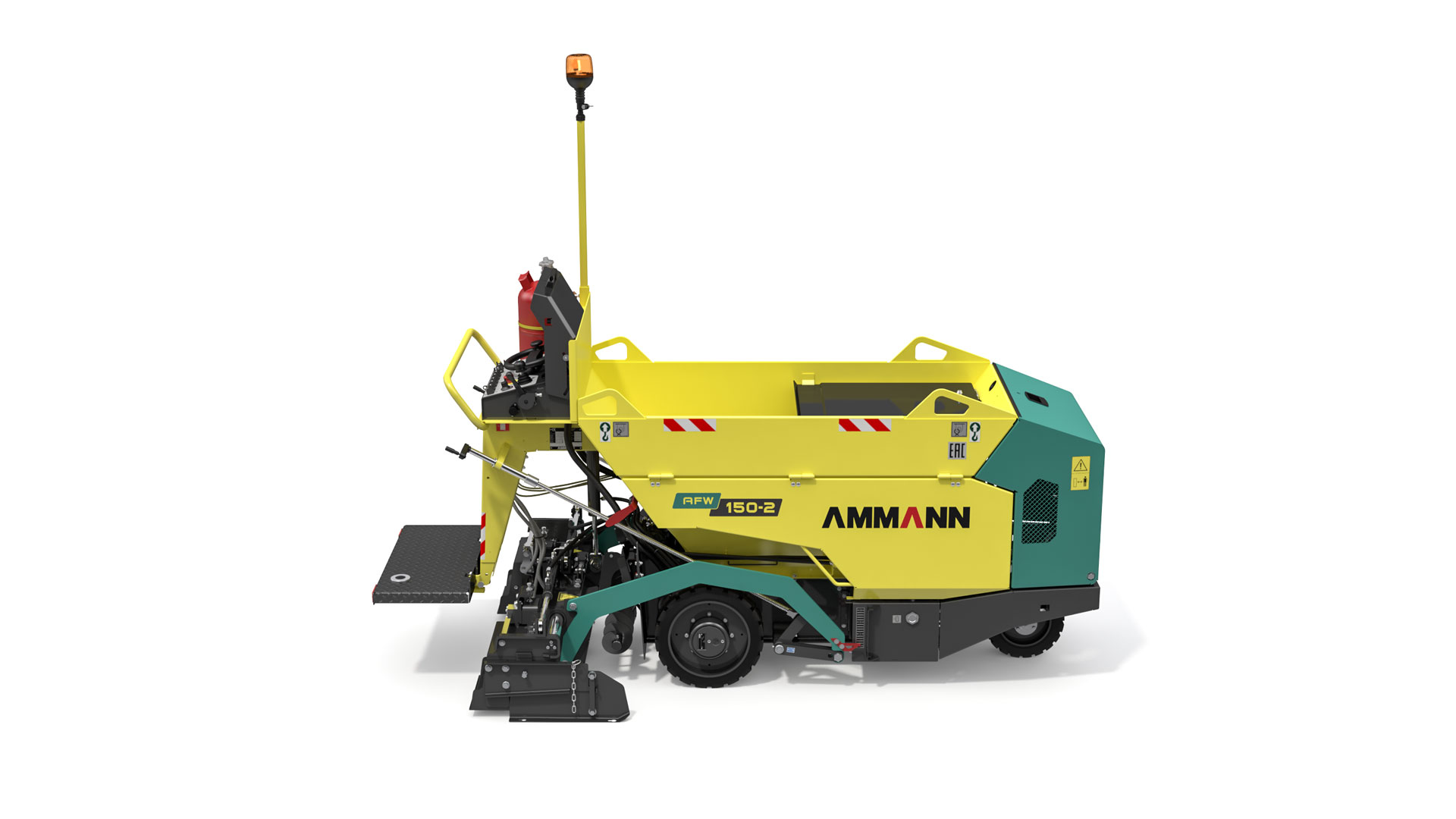

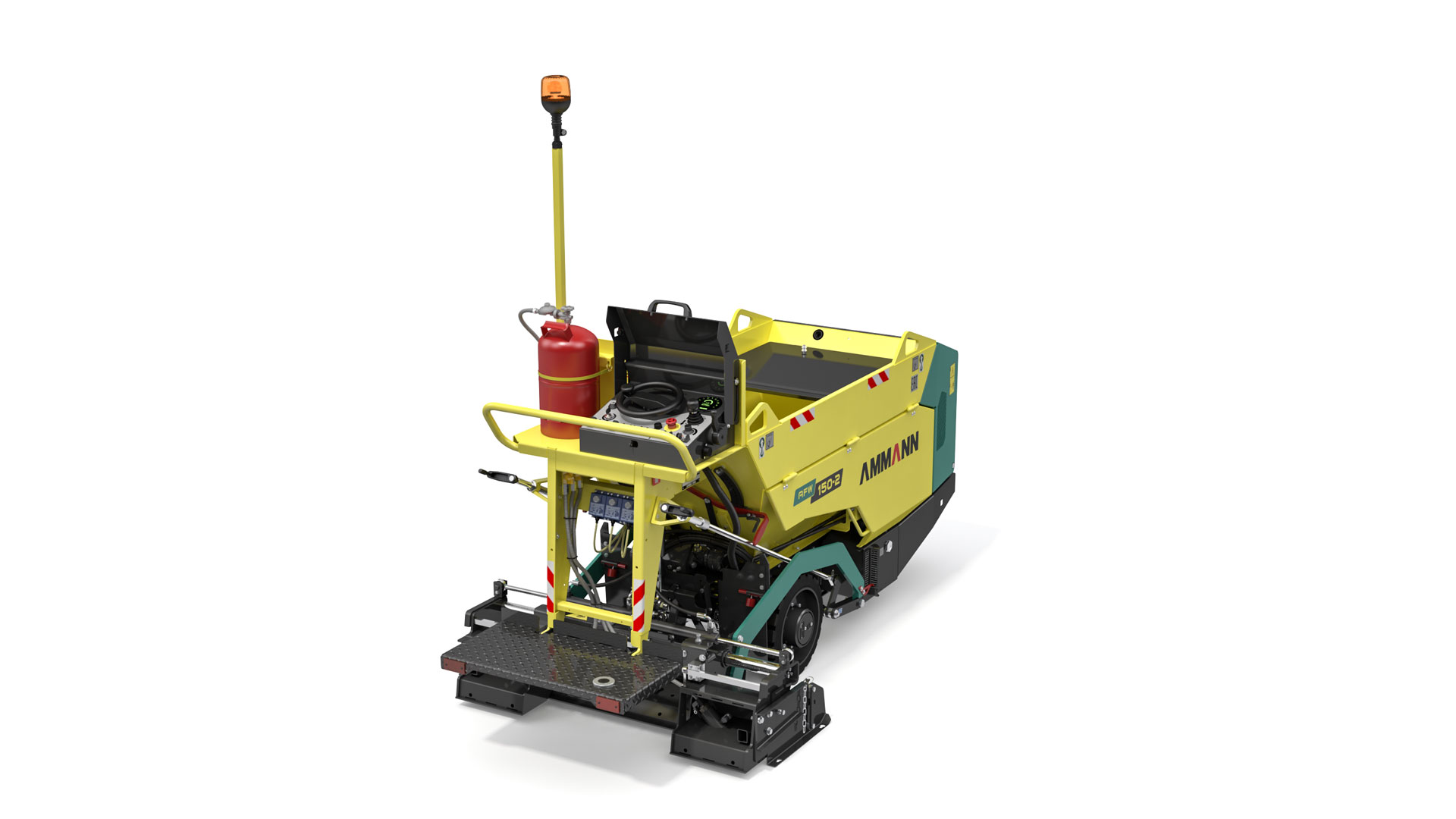

AFW 150-2 MINI PAVER

Compact Paver

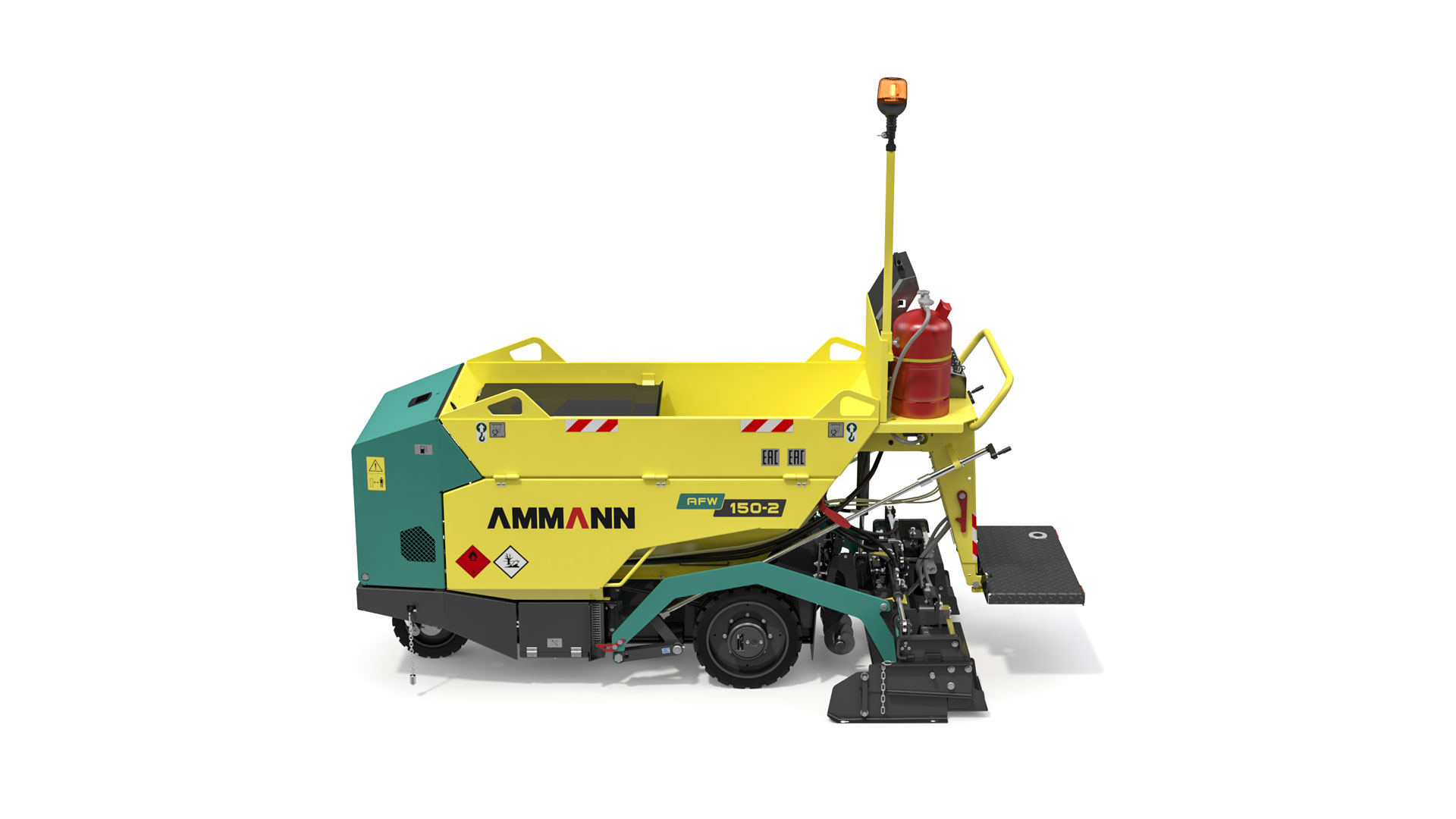

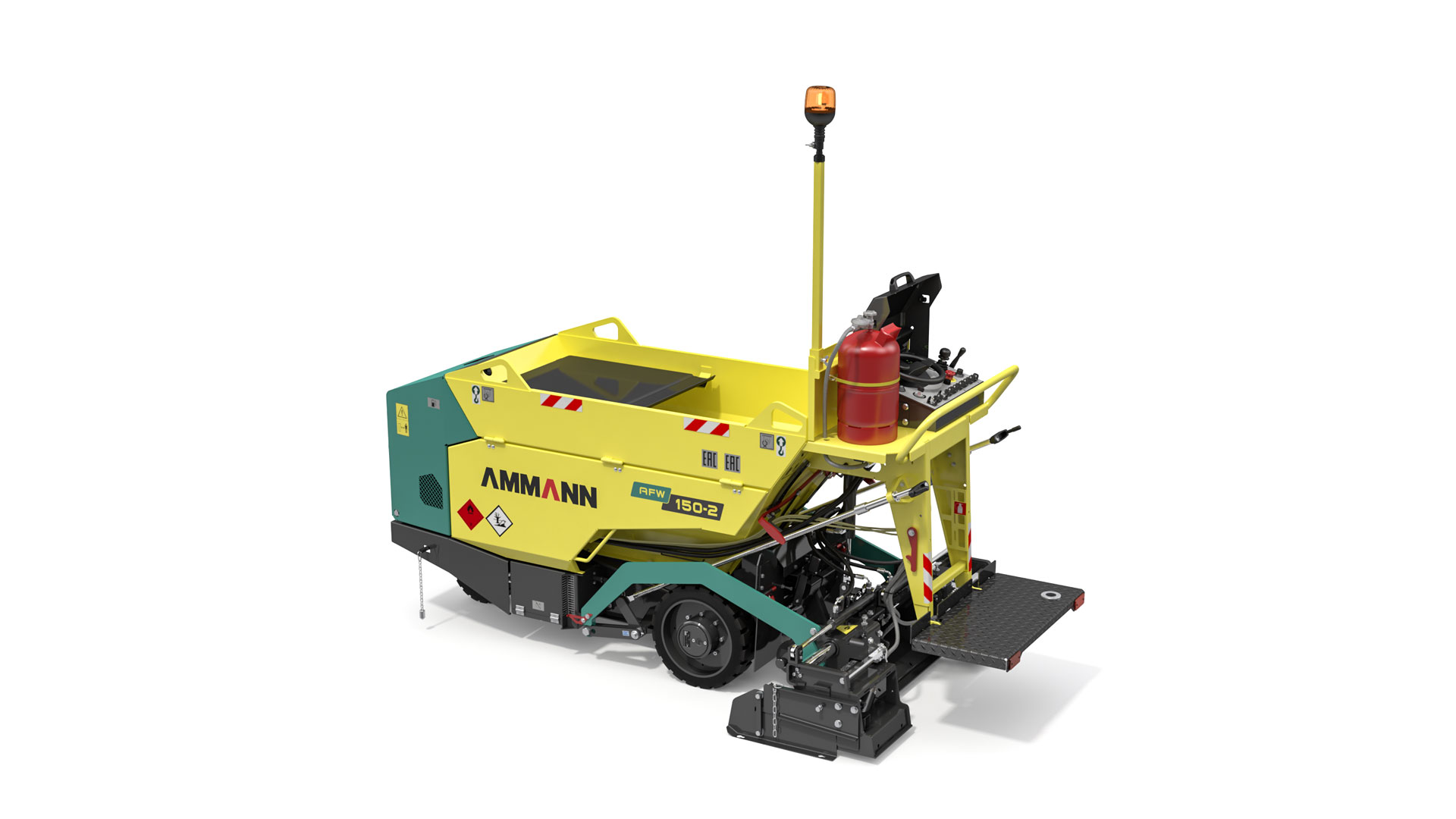

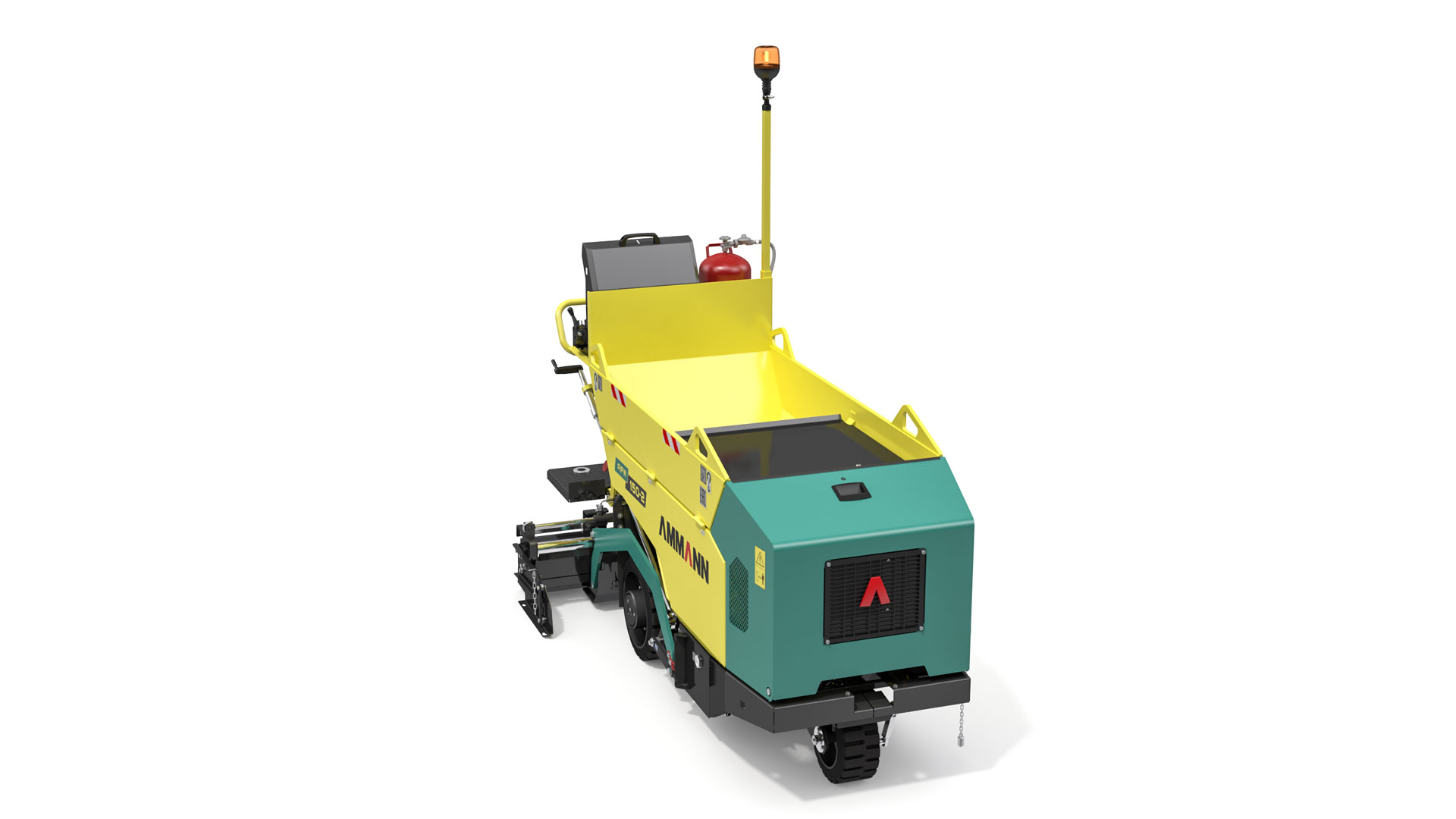

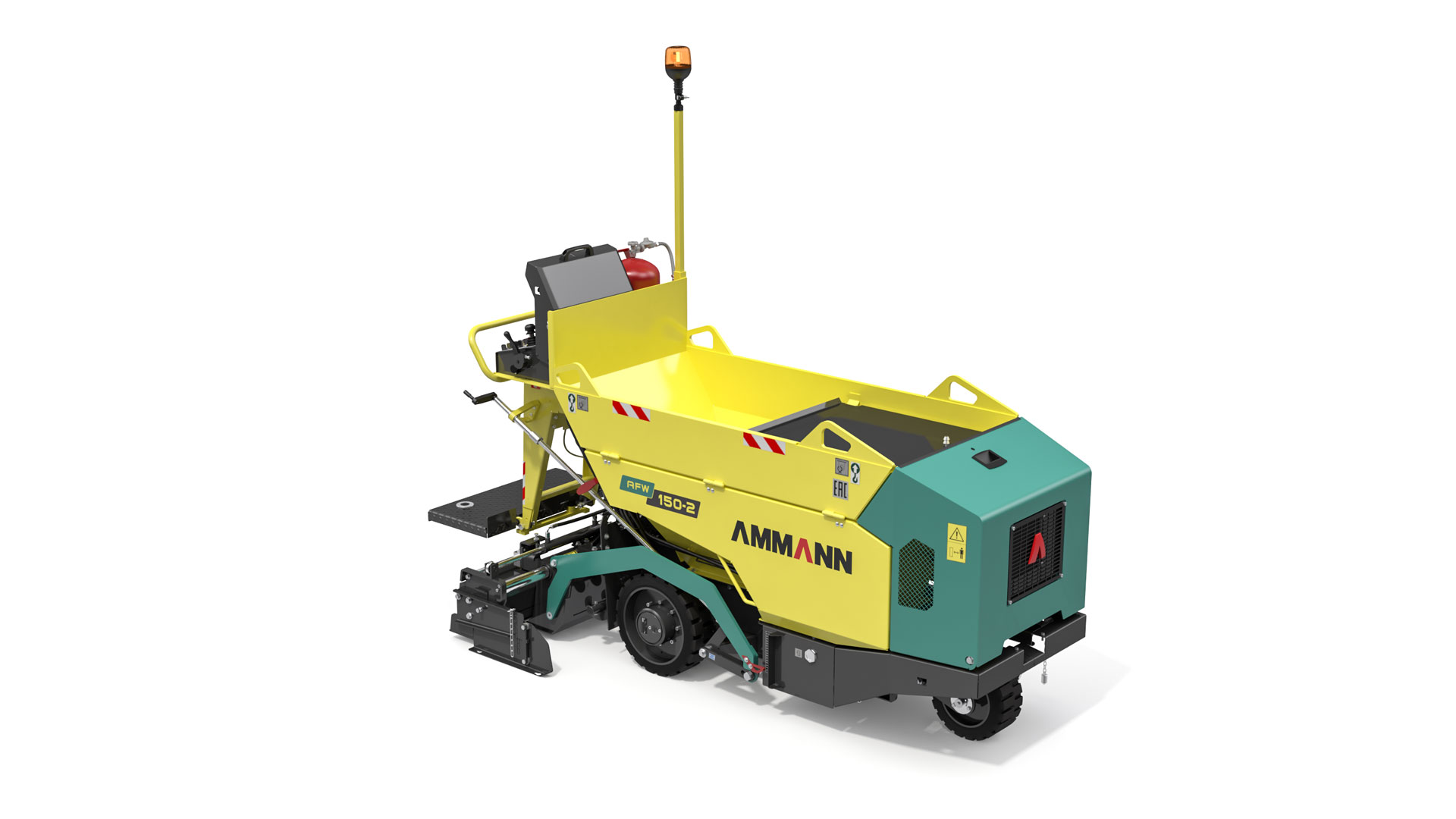

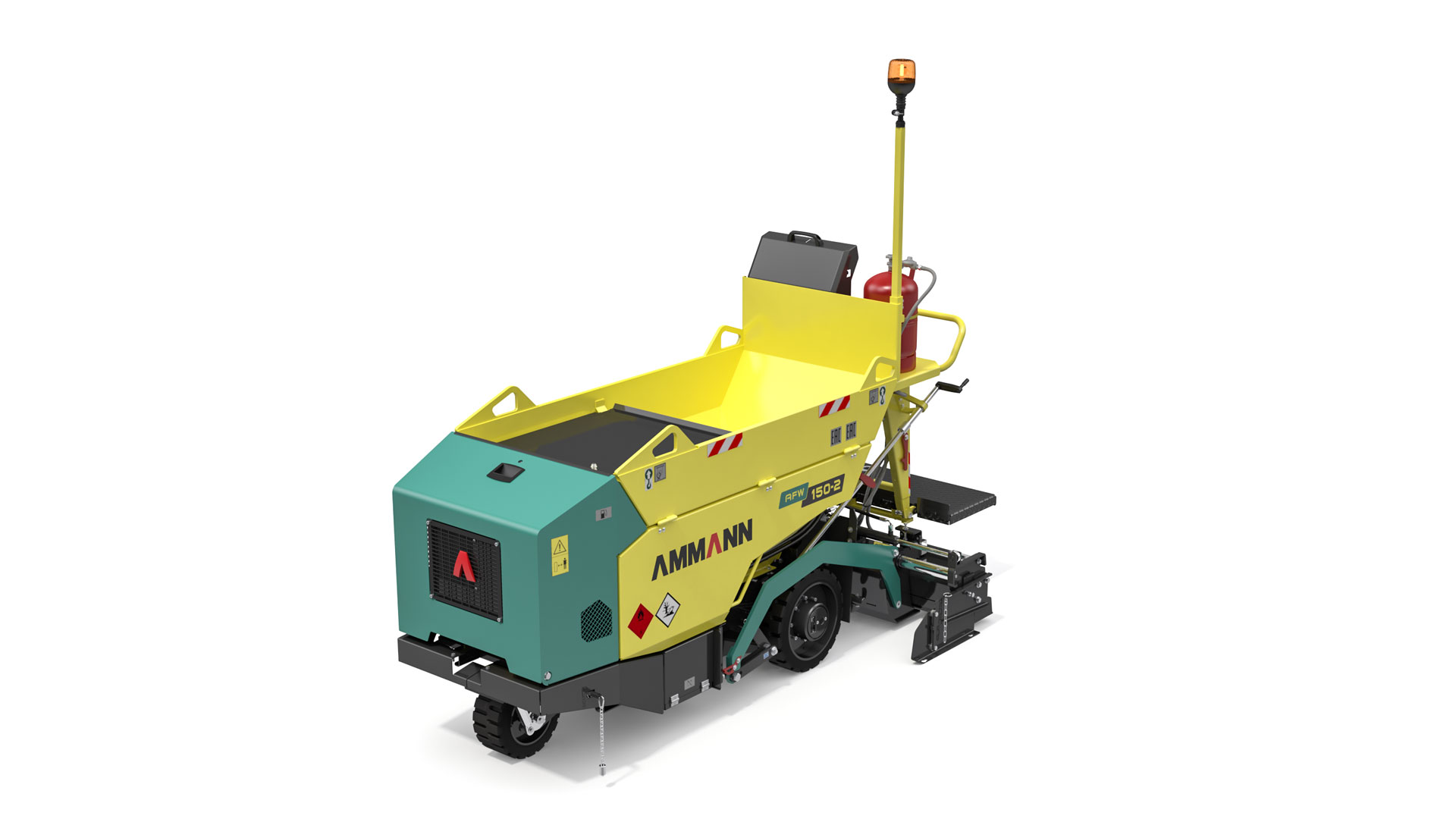

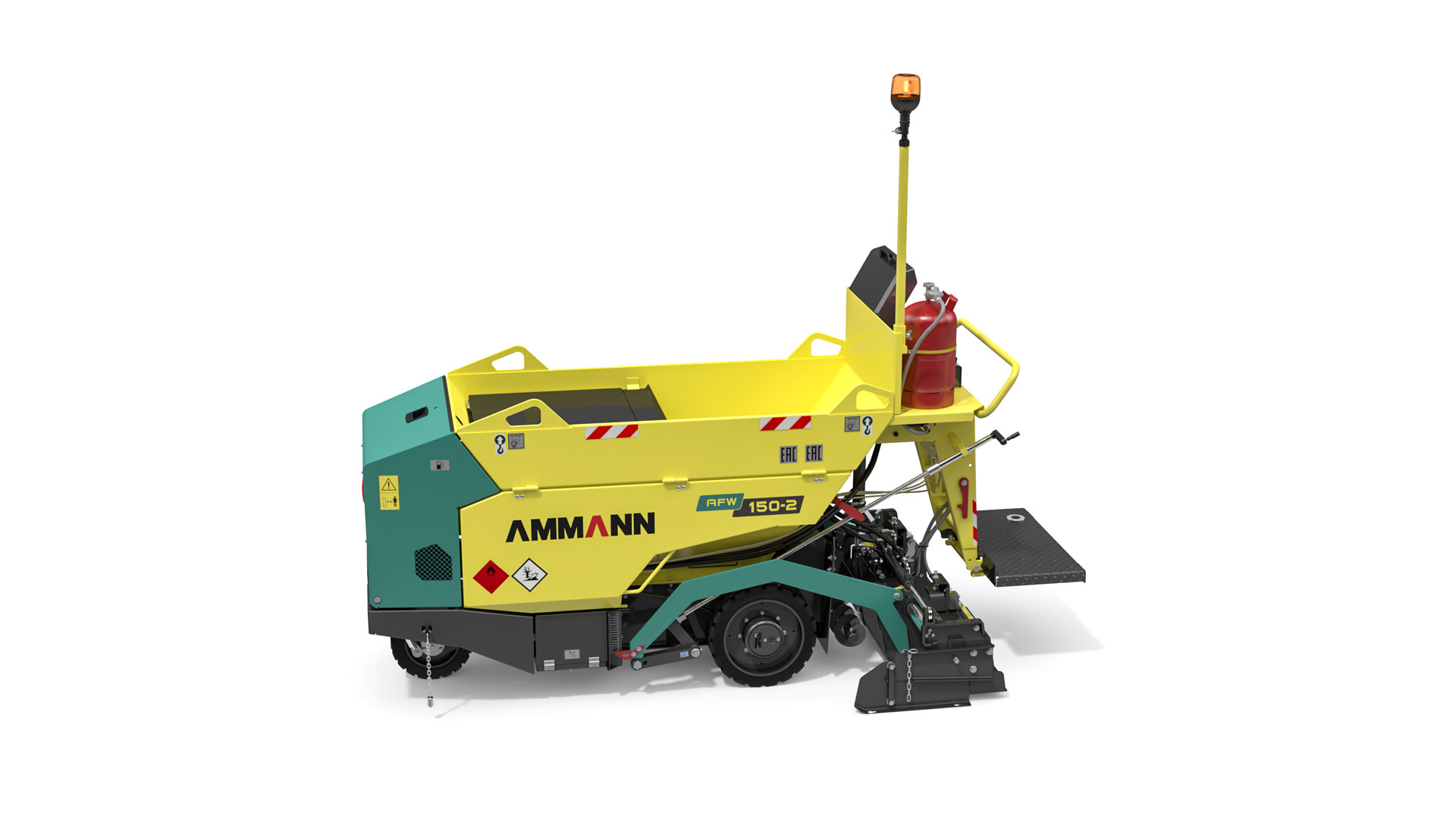

The AFW 150-2 features a unique, three-wheeled, drive concept and a reliable engine delivers the power necessary to excel.

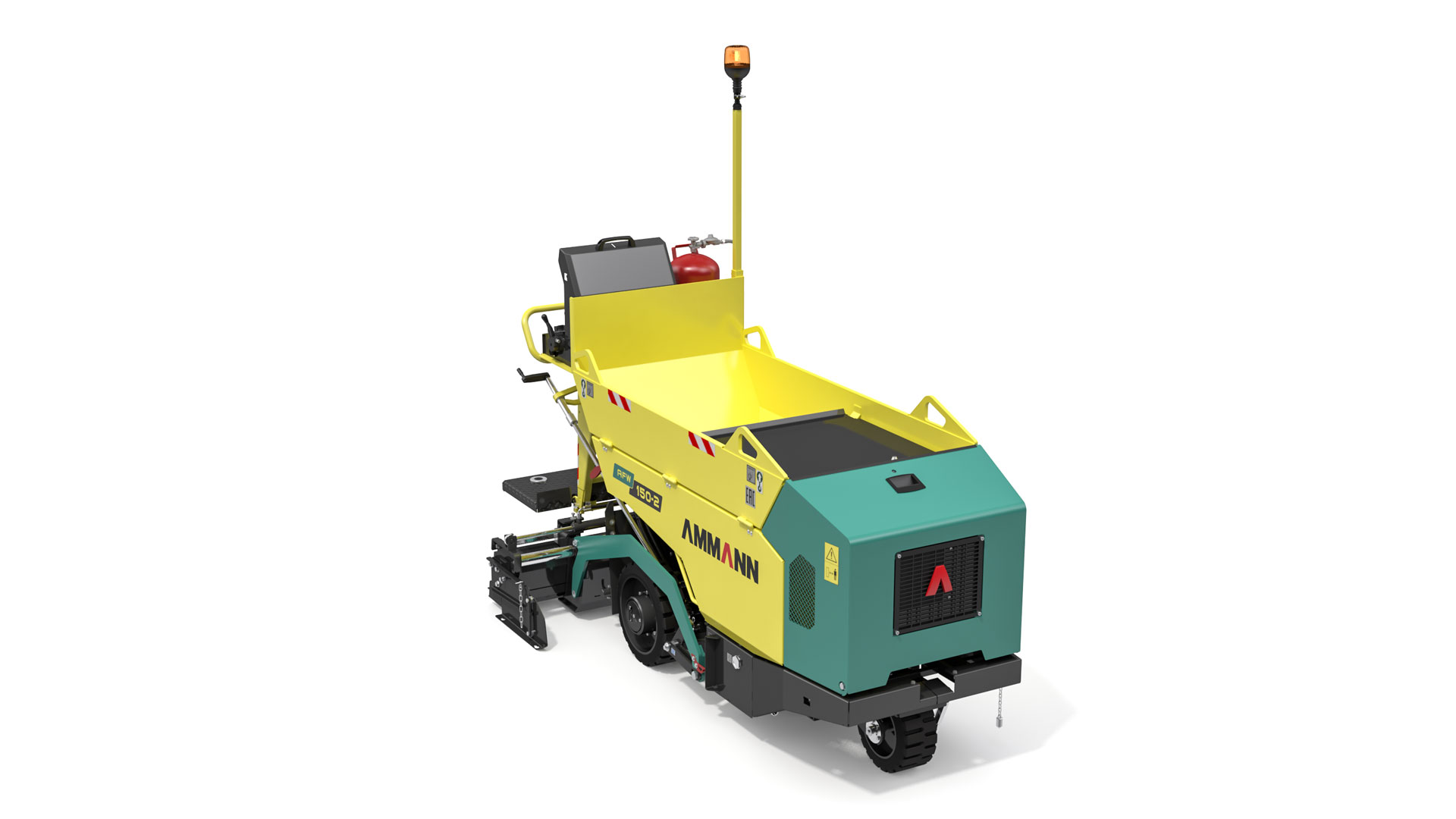

The EU Stage V / U.S. Tier 4F Hatz 1B50E diesel engine provides high reliability and optimal power to get the job done. Lateral air inlets ensure reliable cooling and prevent loose material from entering the engine or cooling unit.

The narrow dimensions and manoeuvrability of this unique paver help it excel on small jobsites. The propelled rear axle delivers traction while the front wheel allows precise manoeuvring, even around tight corners.

Optional twin wheels for the back axle boost traction and grip on difficult terrain.

AFW 150-2 MINI PAVER

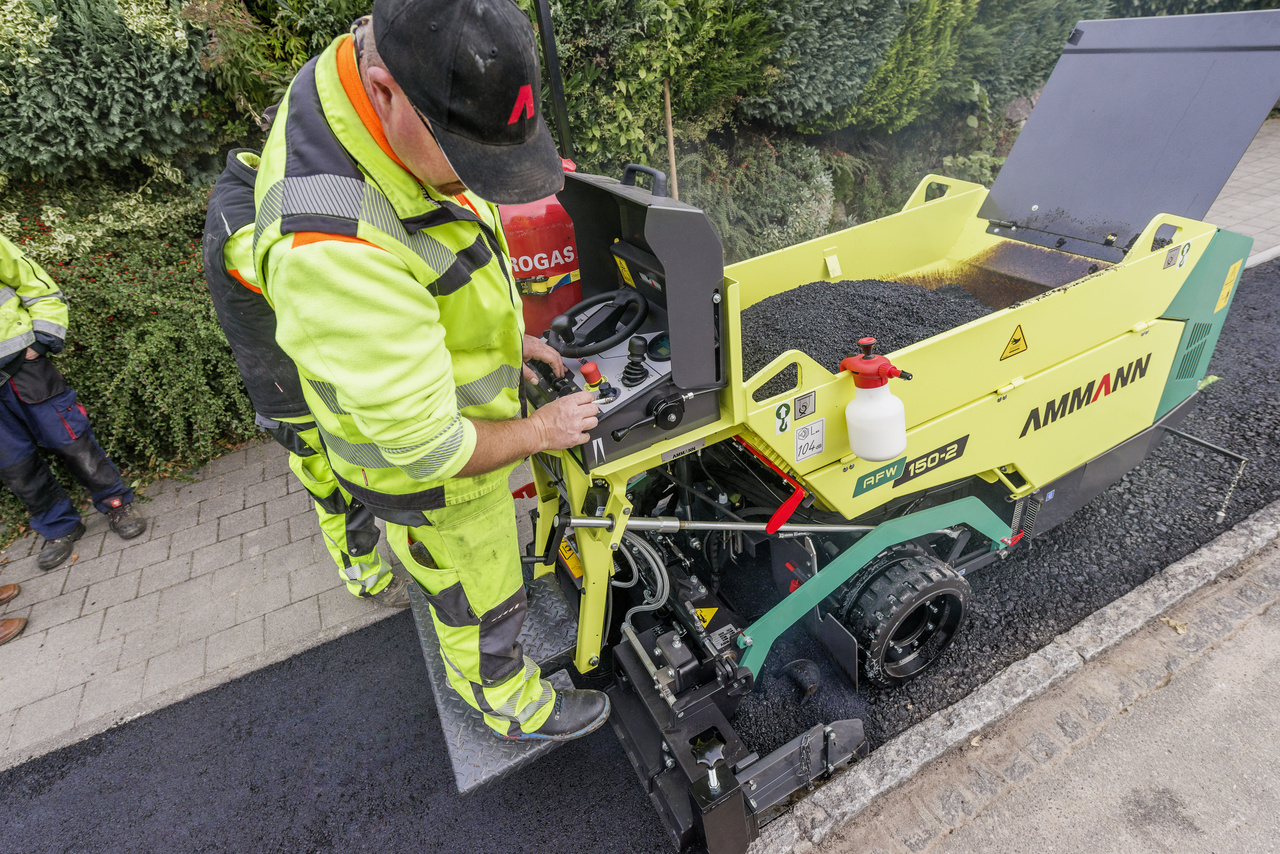

Simple operation

A single operator can run the AFW 150-2. All machine controls are located on or around the operator platform so they’re easy to reach. The width and attack angle of the screed can be adjusted from the operator platform as well.

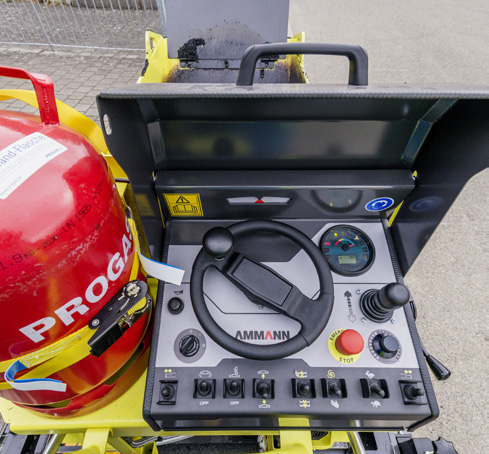

Intuitive dashboard

The operator platform of the AFW 150-2 offers intuitive controls in ergonomically friendly locations. Toggle switches are used to provide optimal control.

A centrally located colour display provides clear and constant feedback of the paver’s status. A properly sized steering wheel enables control.

AFW 150-2 MINI PAVER

Flexibility for any challenge

The screed angle of attack can be mechanically adjusted as it is on larger pavers, helping the operator quickly react to current conditions and the mix.

The screed allows for a crown profile from - 2.0 up to + 2.0 per cent.

AFW 150-2 MINI PAVER

Simple material loading

Material flow is essential to both quality and productivity. The AFW 150-2 Mini Paver provides consistent delivery to the screed so the operator can keep the machine moving forward – while leaving a smooth mat behind.

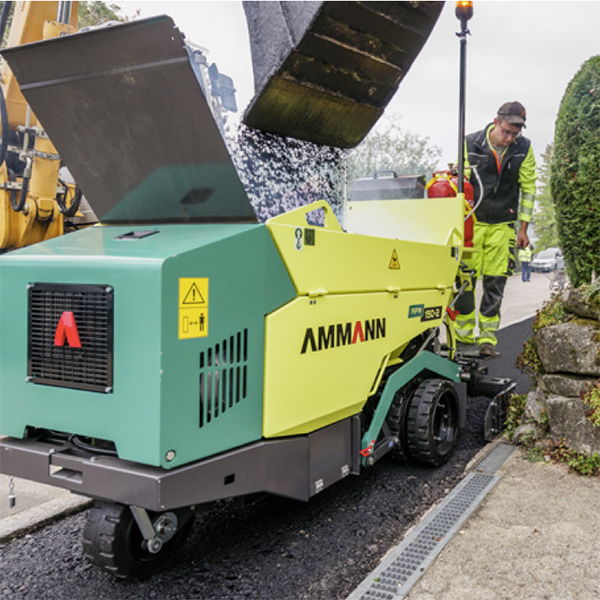

The AFW 150-2 often works on jobsites too narrow for large trucks. That’s why the hopper is designed for simple filling from the side. Optional hopper flap and hopper filling help make loading even easier and increase capacity.

AFW 150-2 MINI PAVER

Consistent material flow

The hopper accepts material from the side, which gives the paver its unique slim design. With a volume of 0.6 m³ (21 cu. ft), the hopper stores enough material to continue working in difficult-to-load areas.

Optimal material distribution

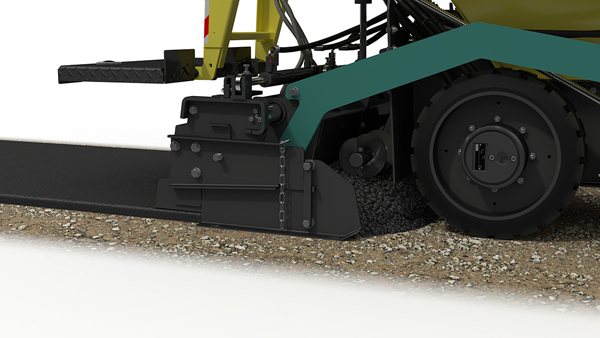

A strong, mechanically controlled material conveyor ensures proper flow to the auger and screed. The large auger, with a diameter of 120 mm (4.7 in), is automatically controlled with mechanical sensors. This creates consistent material distribution over the entire width of the screed and enables paving thicknesses of up to 100 mm (3.9 in) – even when working at maximum widths.

A LED light illuminates the auger compartment, giving the operator full control under all conditions.

AFW 150-2 MINI PAVER

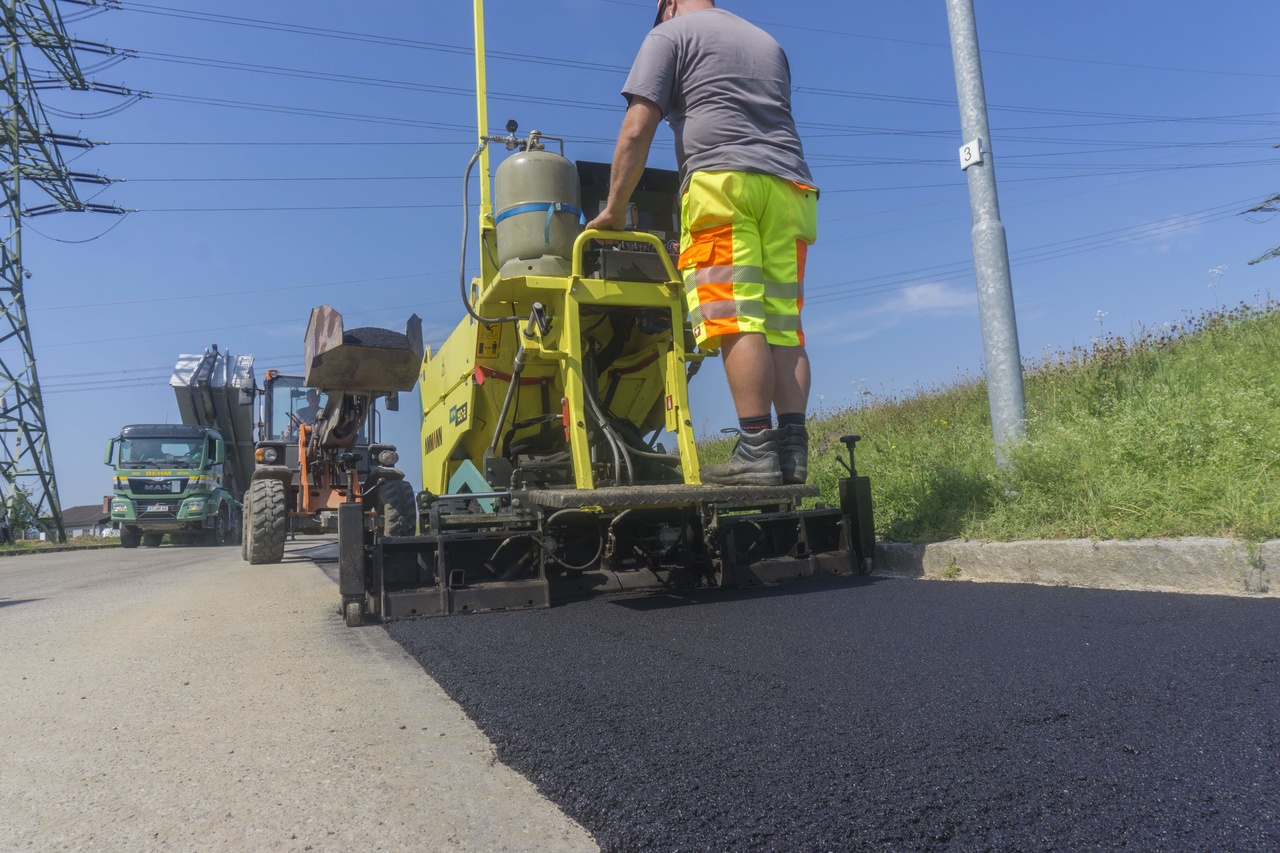

Improved paving results

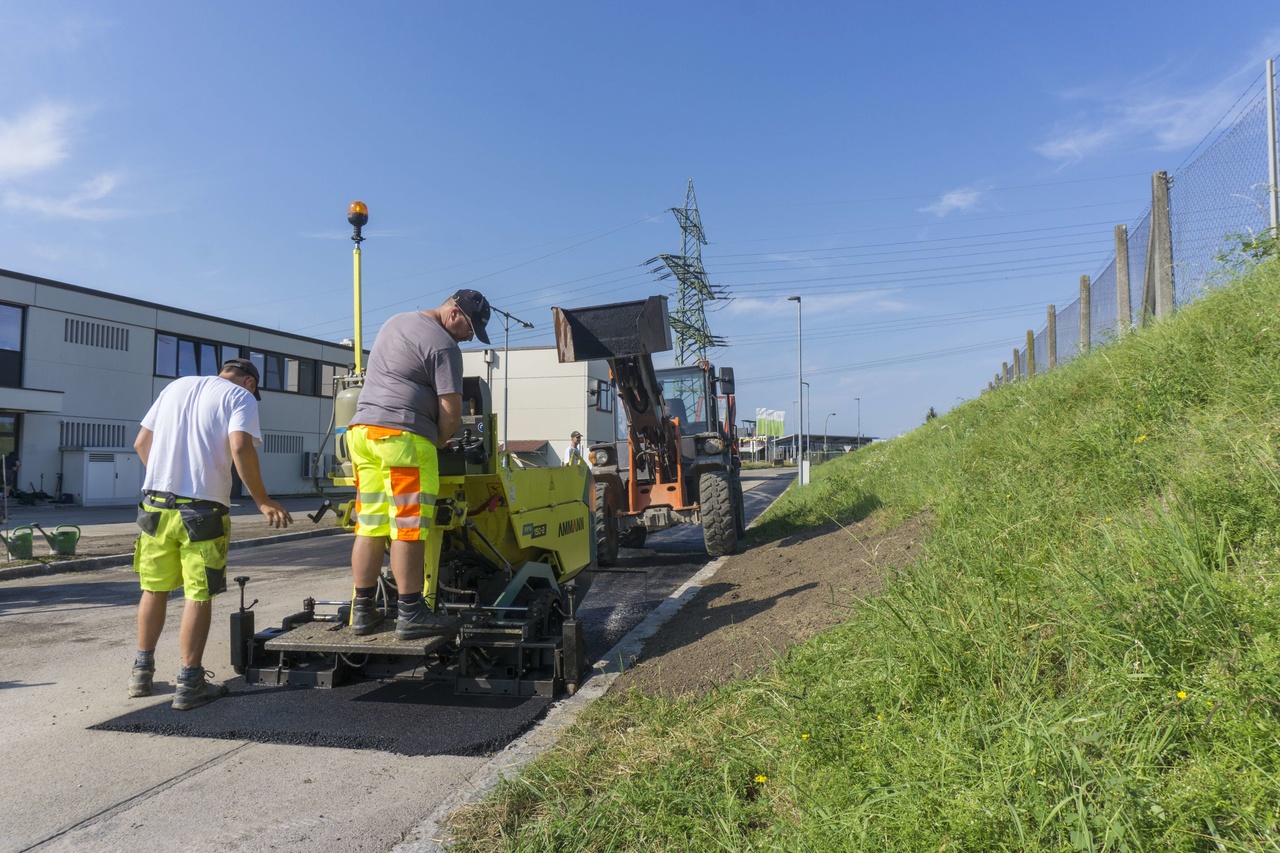

Manual paving always leaves a risk of uneven surfaces and other quality issues that can require costly repair work. This is where the AFW 150-2 steps in. The mini paver provides consistent material distribution, and its quality screed leads to exceptional paving results – far beyond what could be achieved through manual paving.

SB 1300 G Screed for great mat quality

The hydraulically extendible SB 1300 G screed from Ammann allows for standard paving widths up to 1300 mm (51.2 in). Mechanical extensions can increase the widths to 1650 mm (65 in).

Vibration system

The screed is available with an optional vibration unit to improve pre-compaction of the paved mat.

Quick heat up saves time

The reliable gas heating system is controlled directly from the main operator dashboard. A sensor keeps the operator informed about the temperature at all times.

AFW 150-2 MINI PAVER

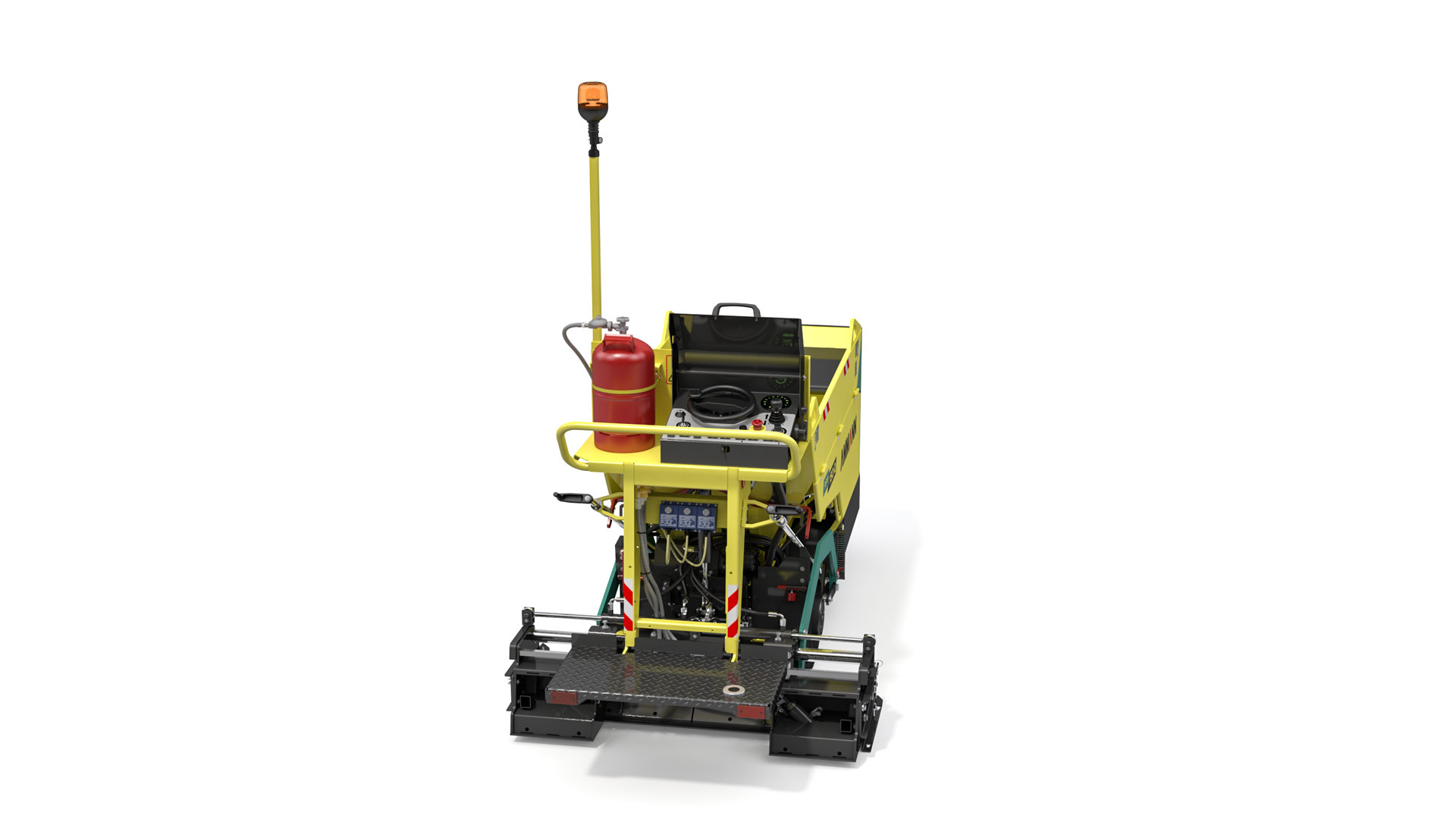

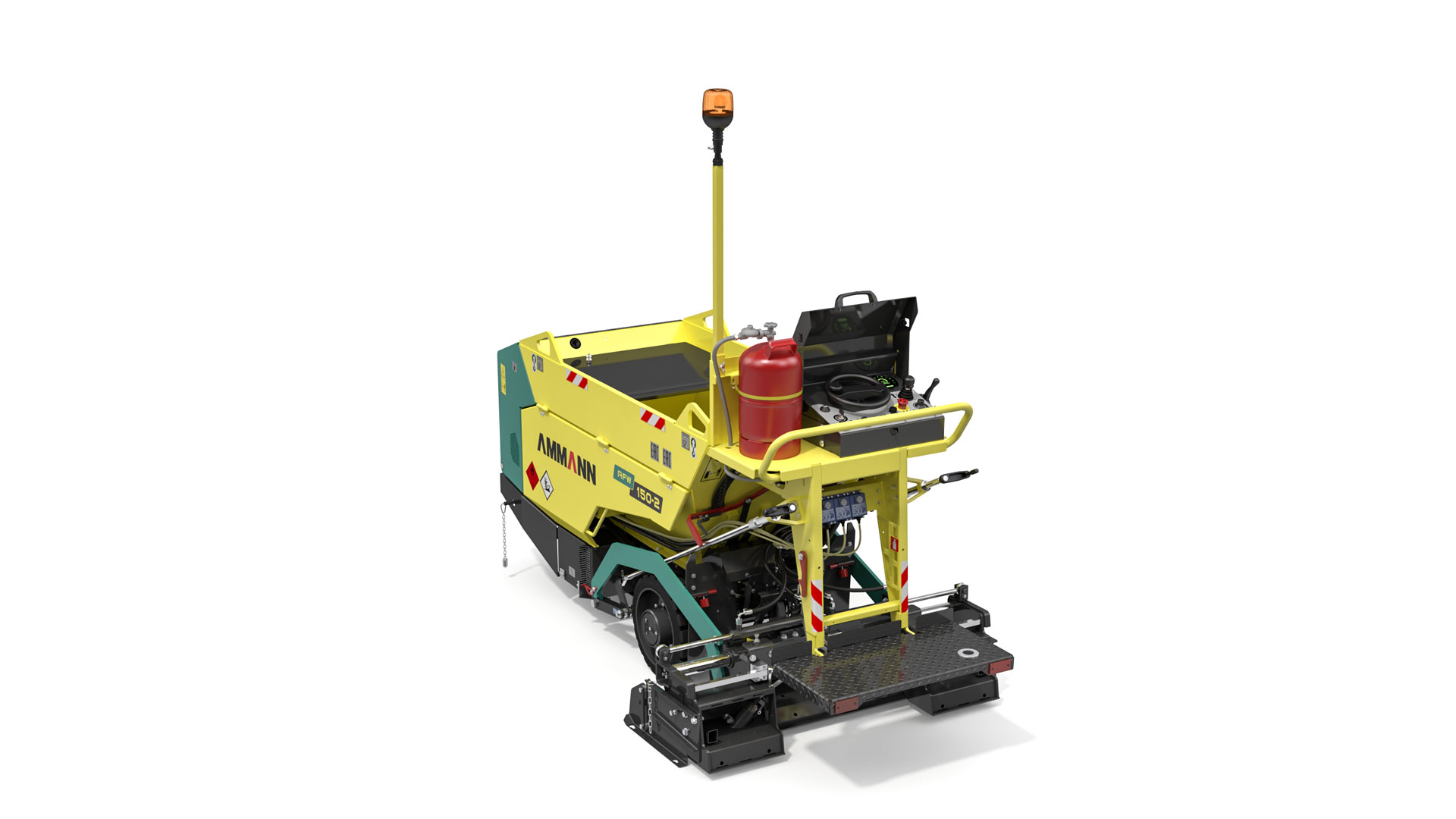

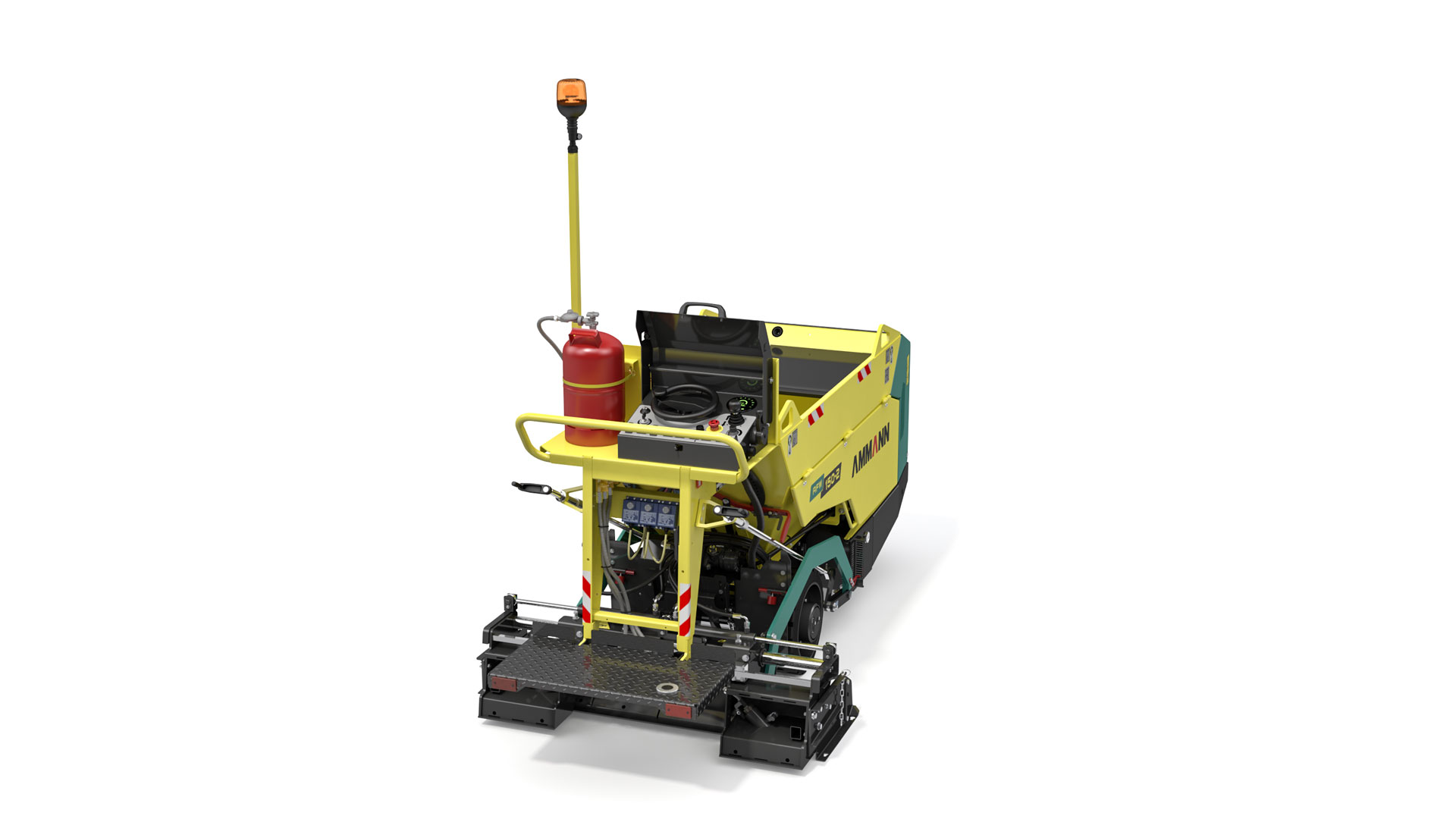

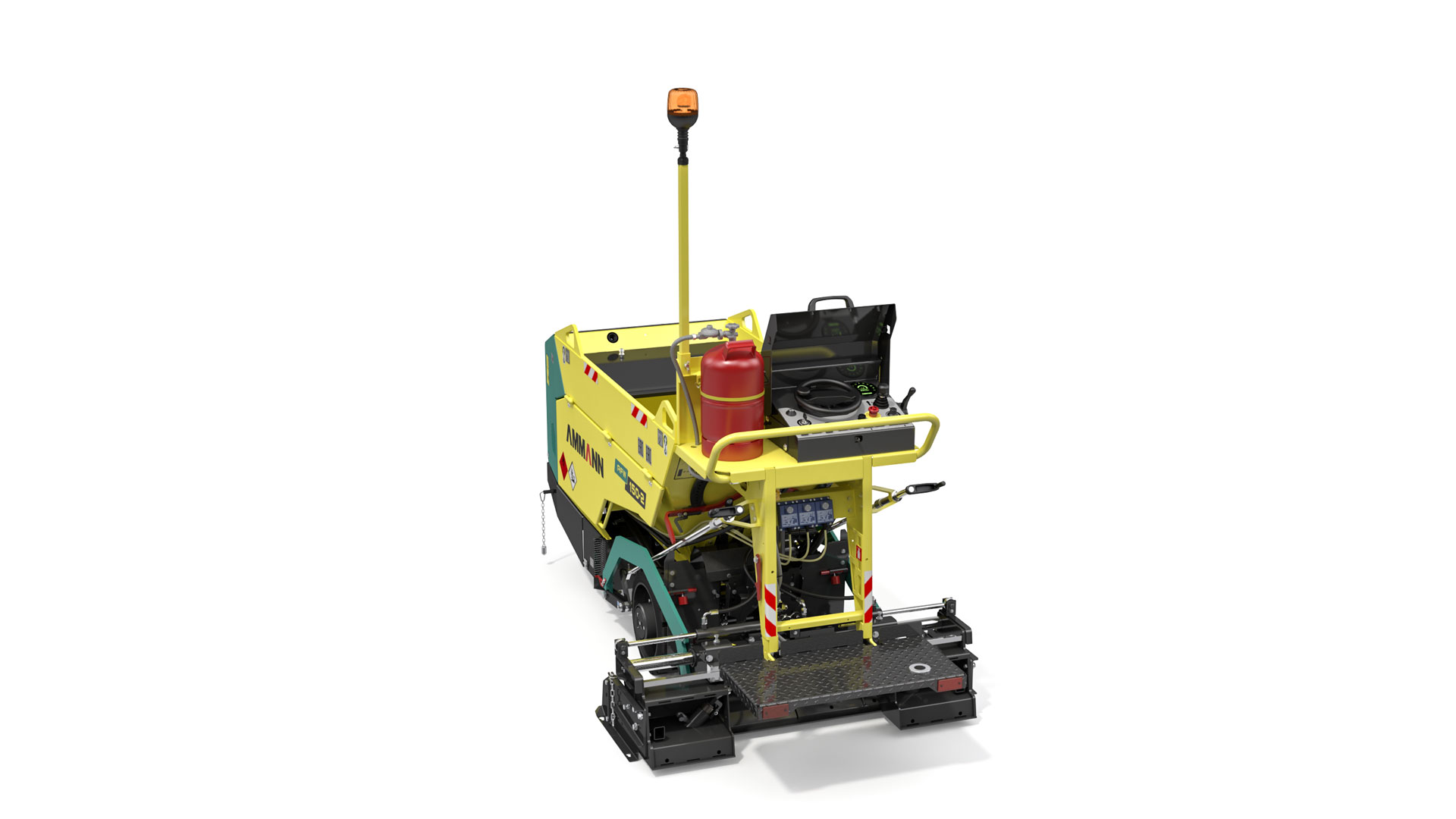

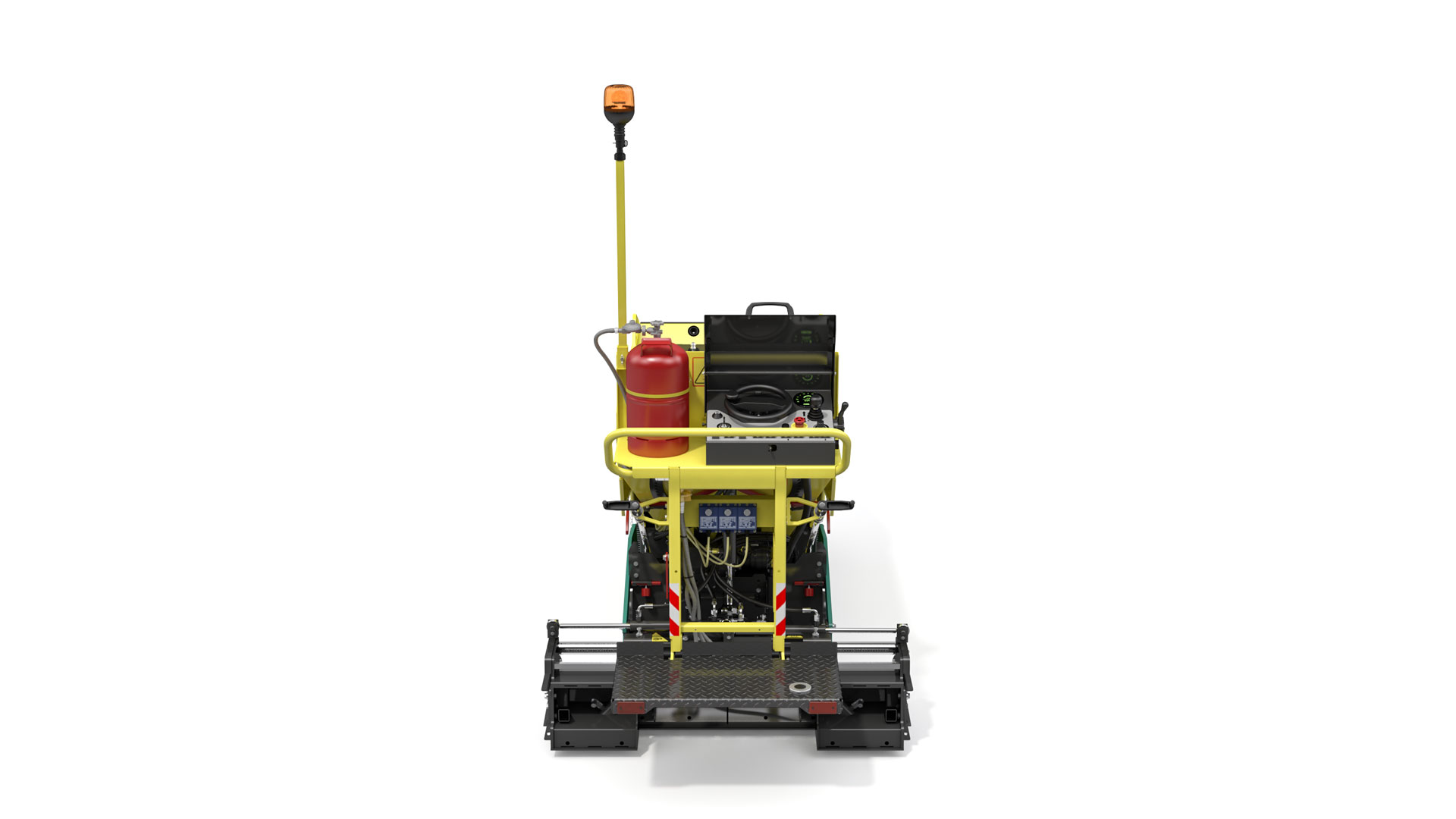

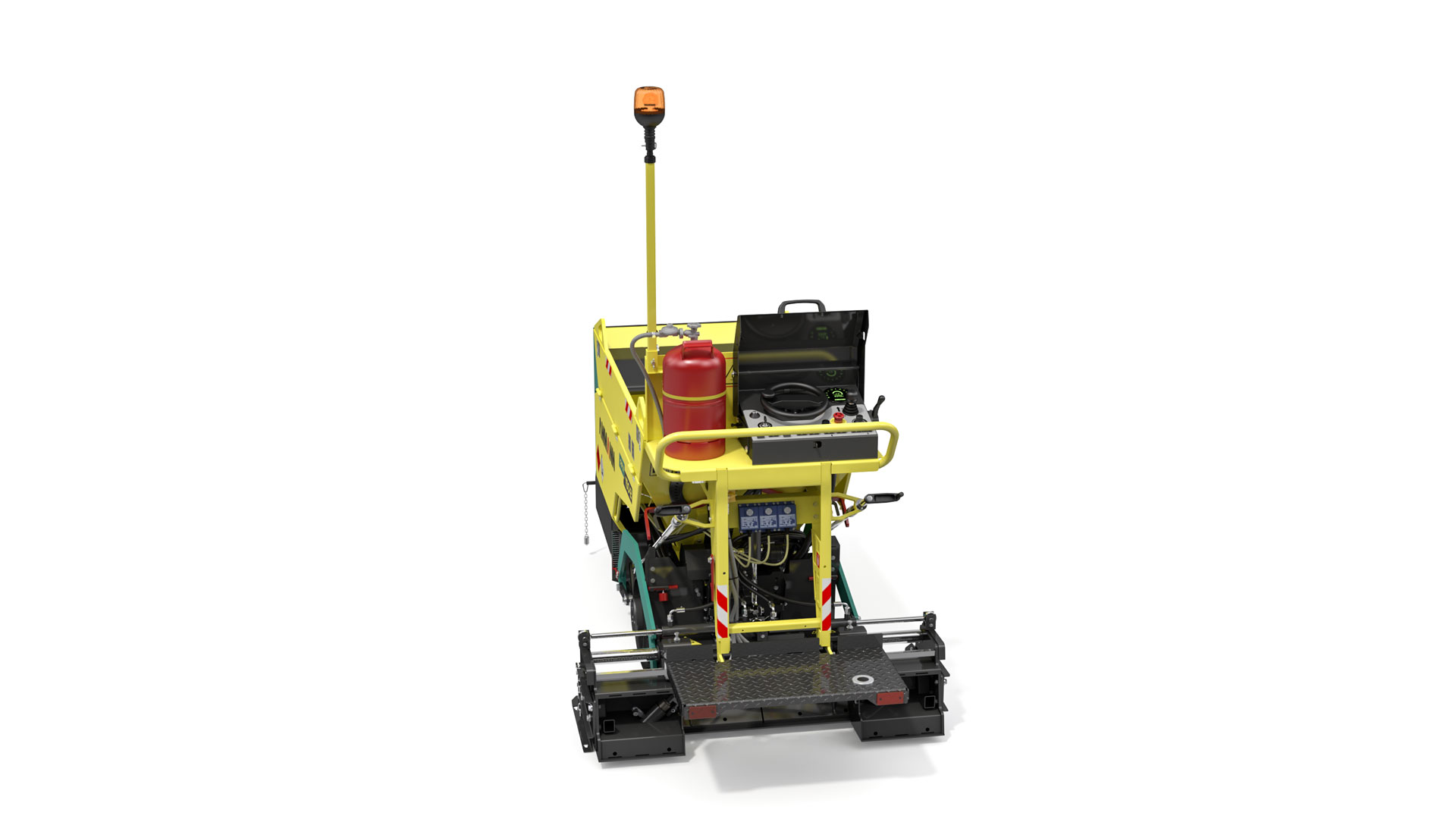

Operator platform

Safety built in

The operator platform features a pressure sensor that recognises the operator standing on the machine. If the operator leaves the platform in case of an emergency, the machine drive is stopped and only continues when the driver is back on the work station.

Great visibility

The machine’s compact design provides clear sight lines to key components and processes. The operator can easily monitor the screed and hopper.

AFW 150-2 MINI PAVER

ServiceLink

Delivering the Data that Matters!

Ammann ServiceLink is a digital data management tool that provides customers with the information they want the most: machine location, battery status and operating hours. Data transfer is automatic thanks to new hardware, and access to the information is only a click away.

Manage your equipment – anytime, anywhere – with Ammann ServiceLink. This comprehensive fleet system provides key data for light compaction equipment, heavy compaction machines and asphalt pavers. You can choose which machines to track.

Highlights

• Supplies machine location, operating hours, battery status
• Provides one-click access to data
• Reliably transmits data from machines, no matter where they are
• Compatible with all machines produced by Ammann or other manufacturers
• Streamlines fleet upgrades (retrofit option)
• Easy to install

The hardware is easy to add as a retrofit

Simply attach the TCU and the battery to the machine. The TCU is activated when plugged into the battery. That’s it!
