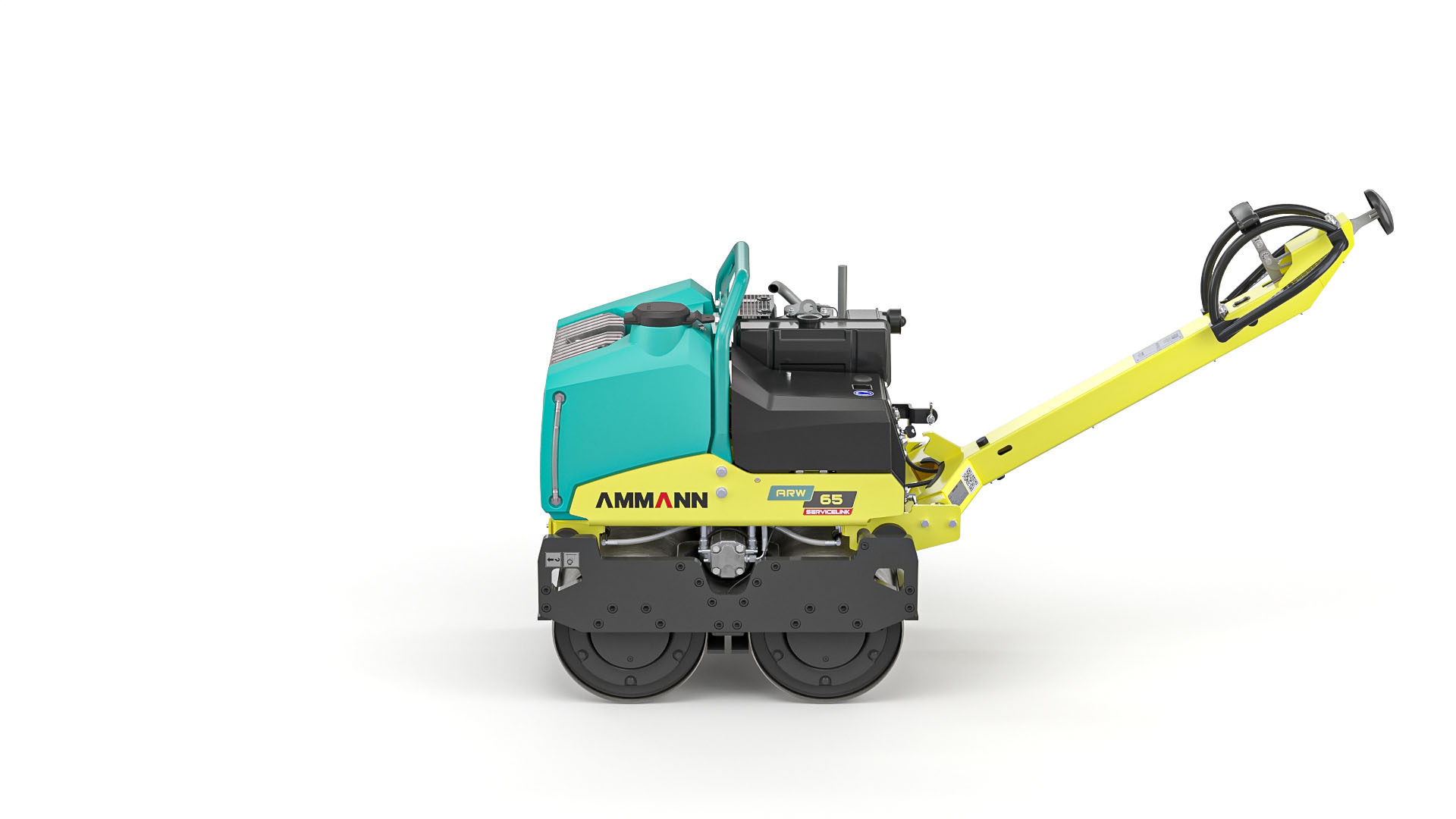

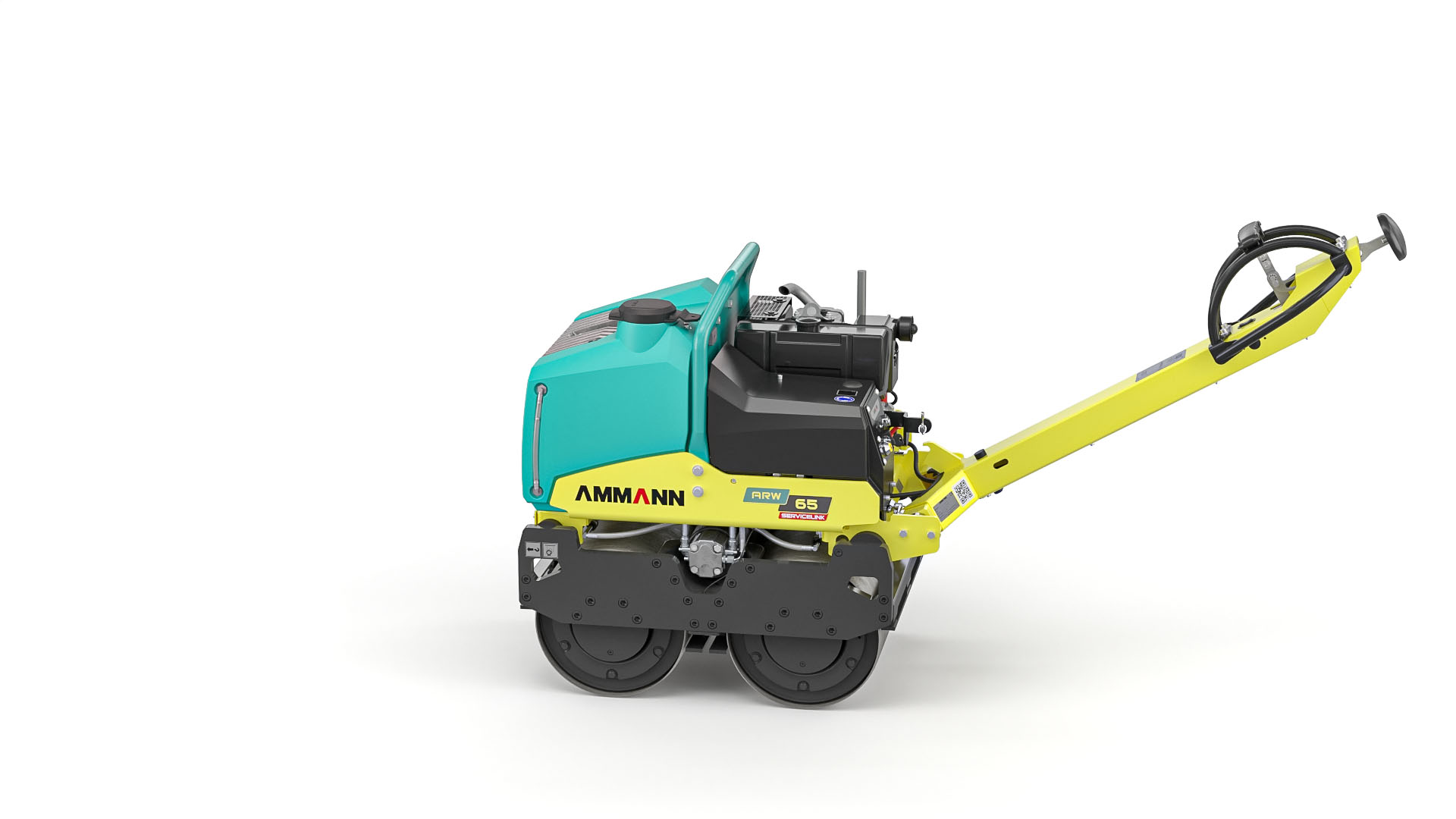

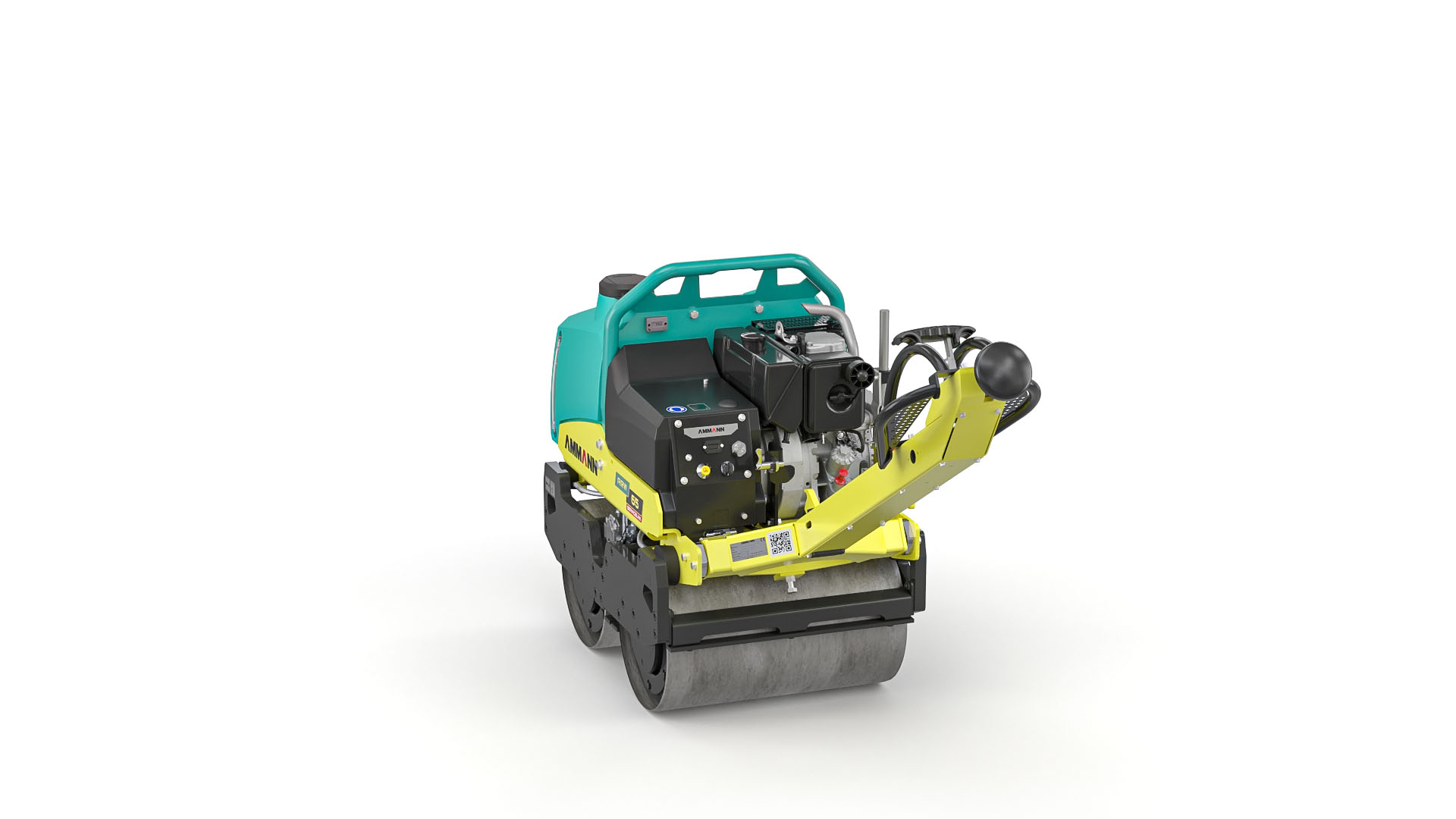

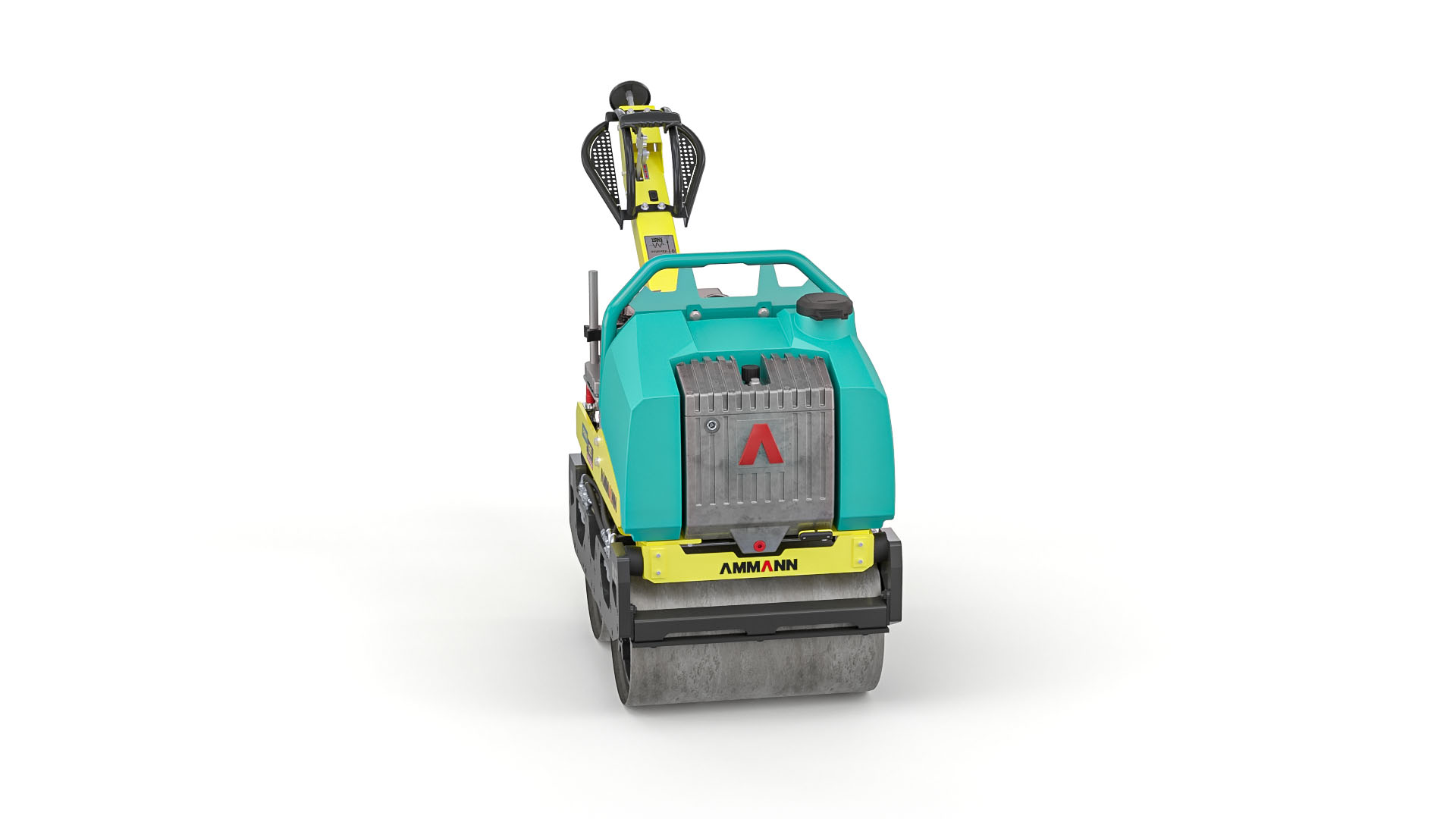

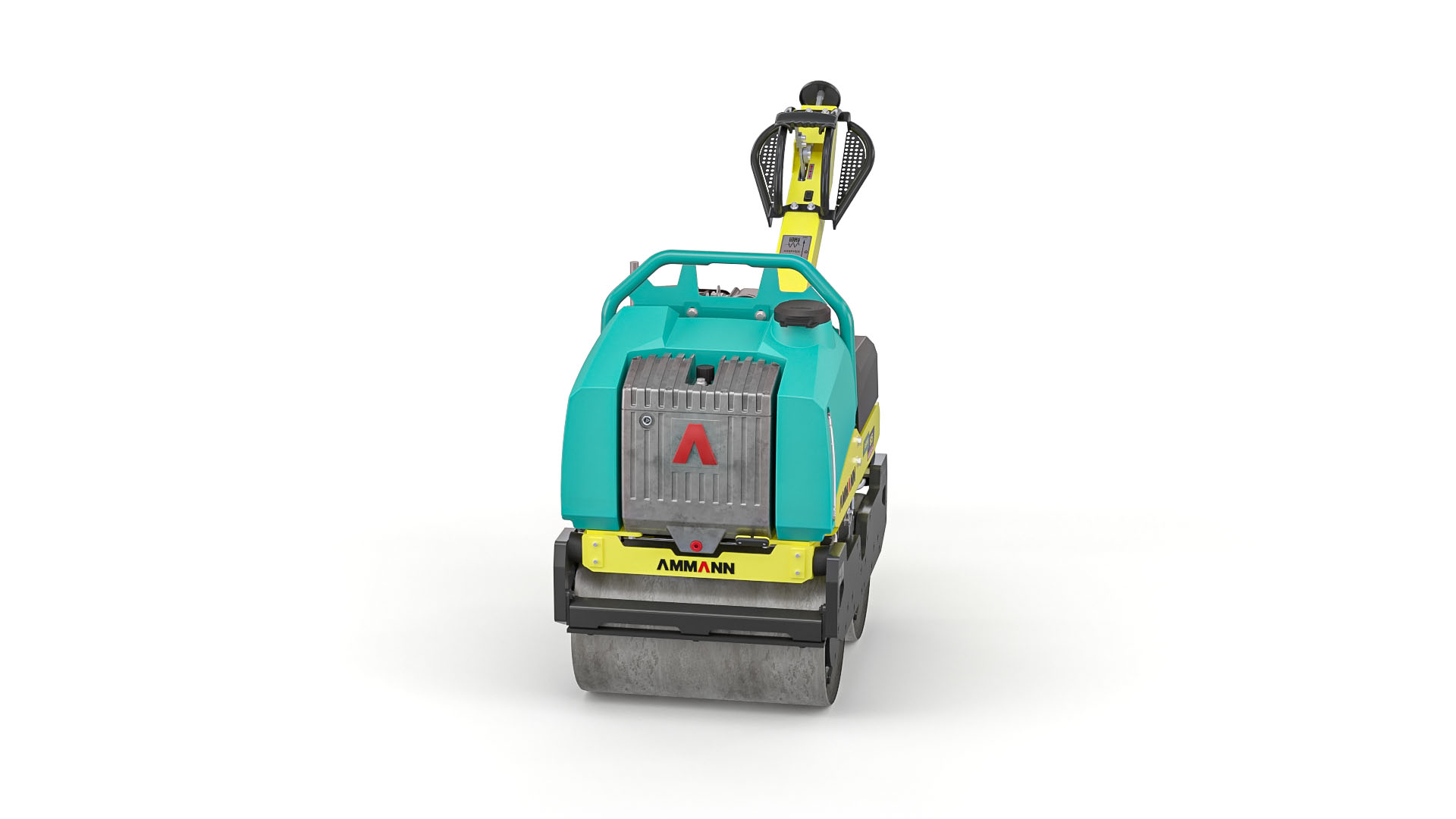

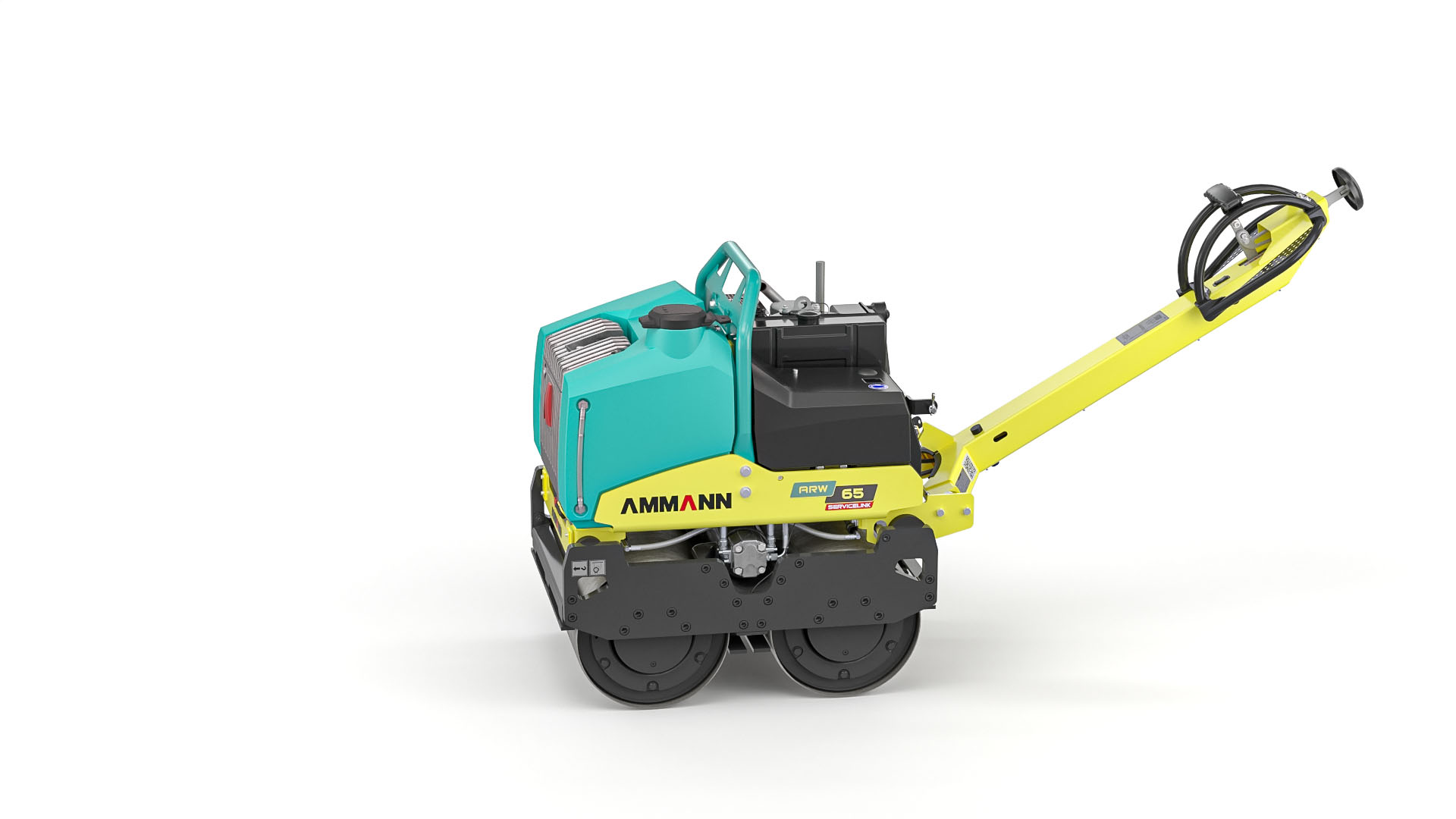

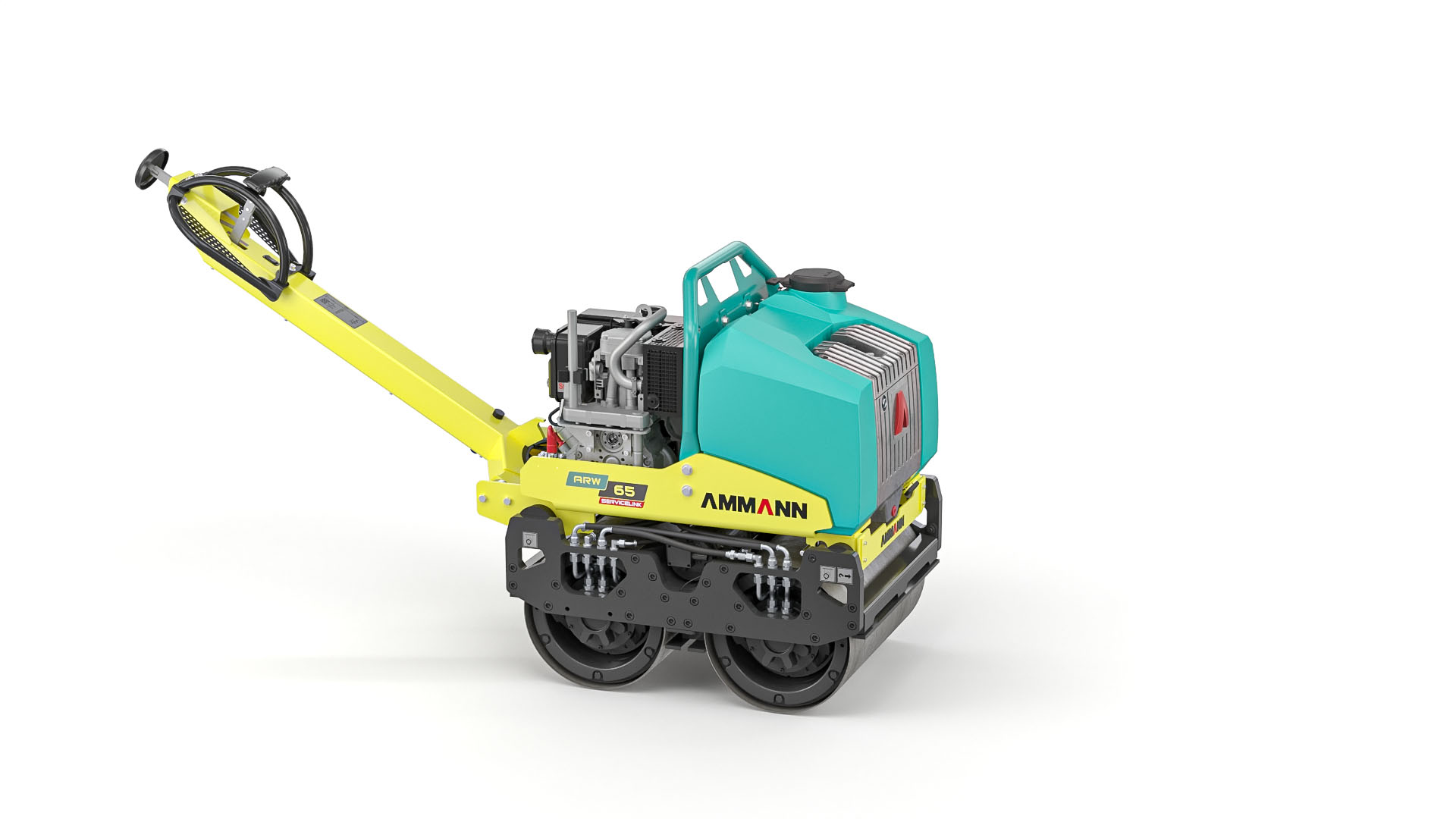

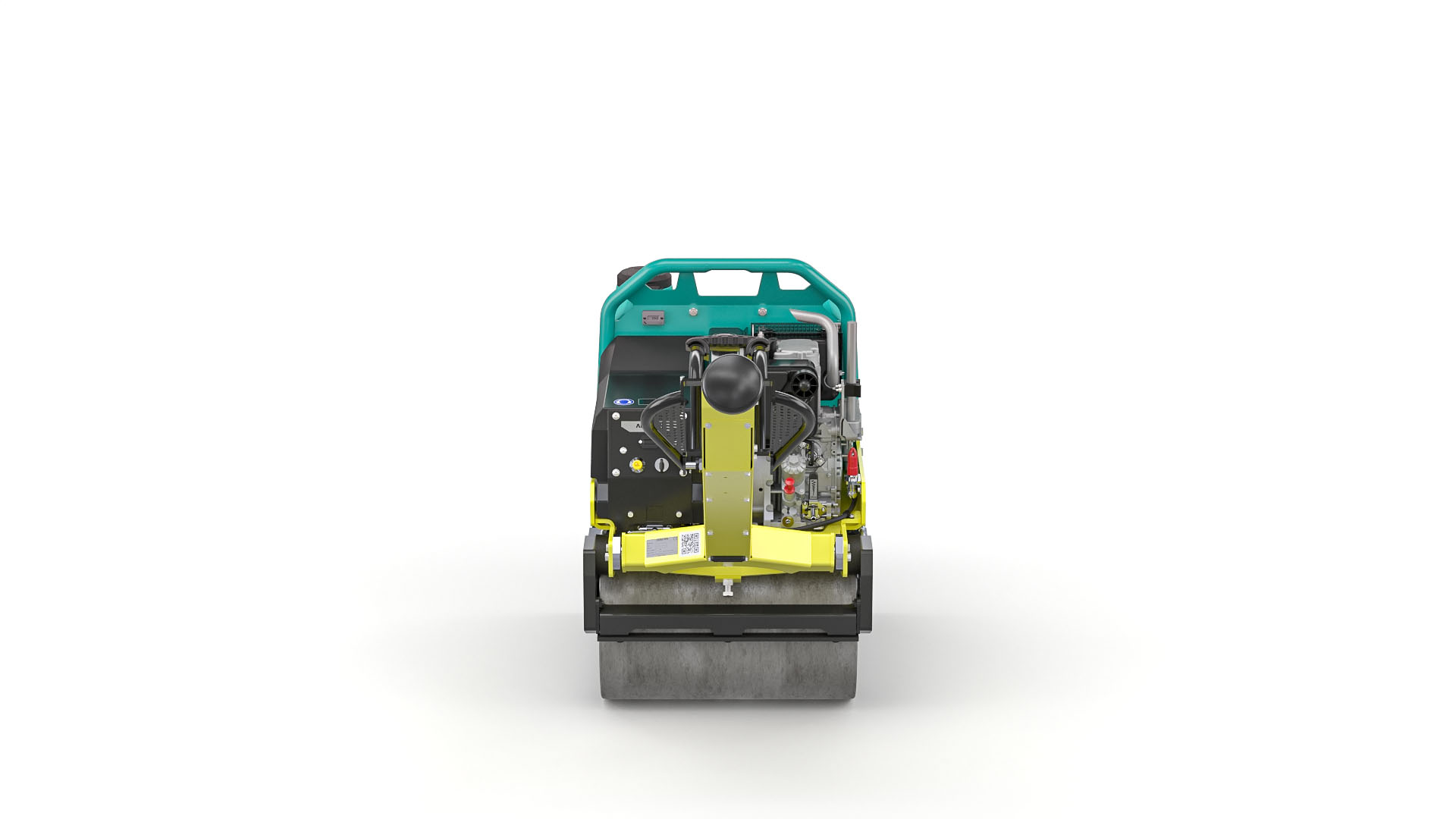

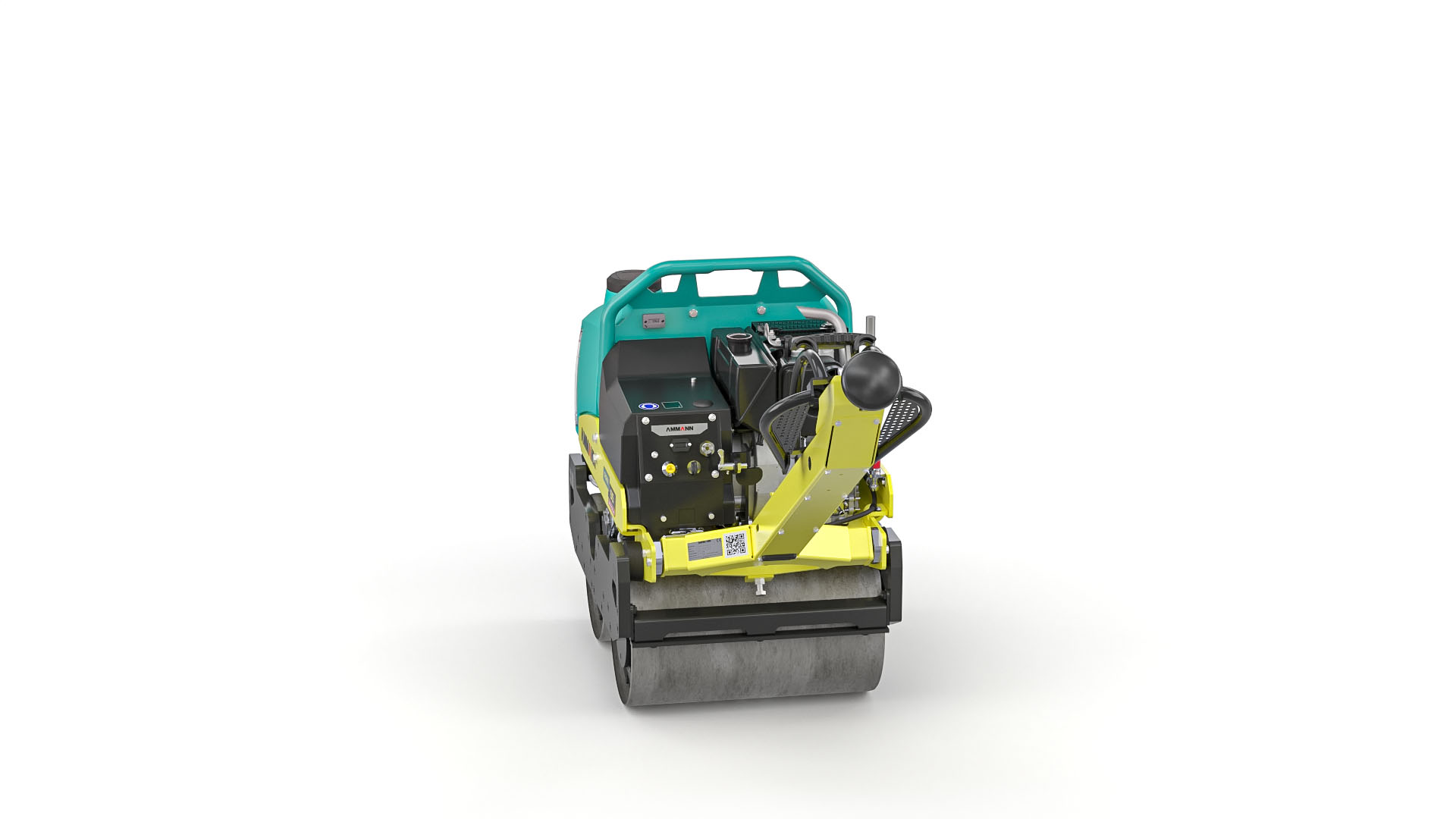

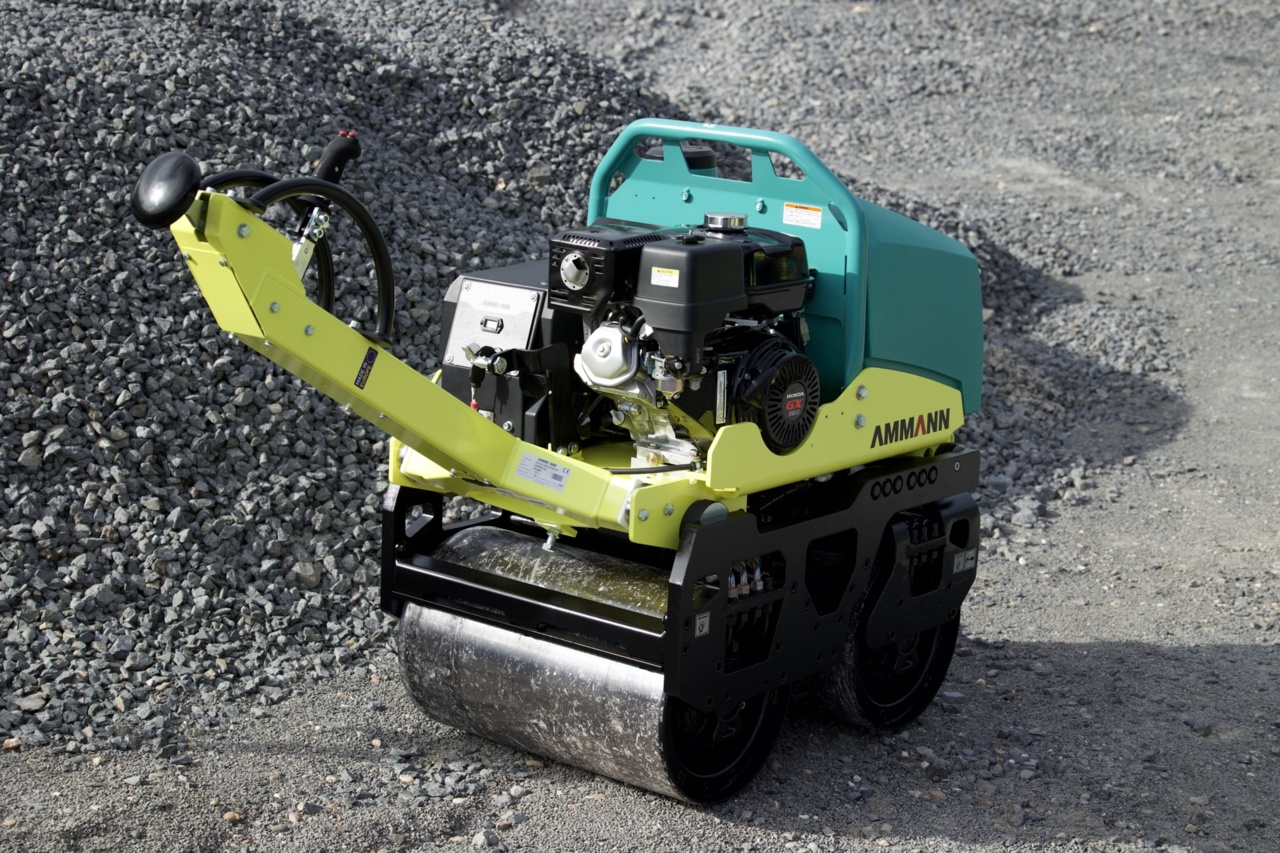

ARW WALK-BEHIND ROLLERS
Working with clay today, and asphalt tomorrow? That’s no problem for Ammann Walk-Behind Rollers.
These compactors combine two applications in a single machine. Operators choose whether to utilise a high-amplitude setting for work on soil and aggregates … or a low-amplitude setting for asphalt. Amplitudes can be changed with a simple flip of a switch.
The machines provide straightforward operation and precise control.
As for service costs … the fully hydraulic drive system works without a centrifugal clutch and V belt – and the maintenance that go with them.
Ammann walk-behind rollers are offered with two alternative diesel engine types. Both deliver great power and meet global emissions standards.
Ready to learn more? Click on the product hotspots or the chat contact.
ARW WALK-BEHIND ROLLERS

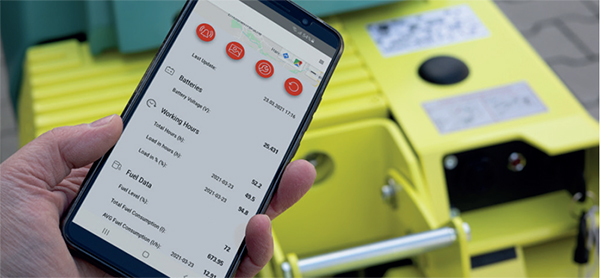

ServiceLink
Delivering the Data that Matters!
Ammann ServiceLink is a digital data management tool that provides customers with the information they want the most: machine location, battery status and operating hours. Data transfer is automatic thanks to new hardware, and access to the information is only a click away.
Manage your equipment – anytime, anywhere – with Ammann ServiceLink. This comprehensive fleet system provides key data for light compaction equipment, heavy compaction machines and asphalt pavers. You can choose which machines to track.
Highlights
- Supplies machine location, operating hours, battery status
- Provides one-click access to data
- Reliably transmits data from machines, no matter where they are
- Compatible with all machines produced by Ammann or other manufacturers
- Streamlines fleet upgrades (retrofit option)
- Easy to install
The hardware is easy to add as a retrofit
Simply attach the TCU and the battery to the machine. The TCU is activated when plugged into the battery. That’s it!
ARW WALK-BEHIND ROLLERS
Flexibility for your machine pool

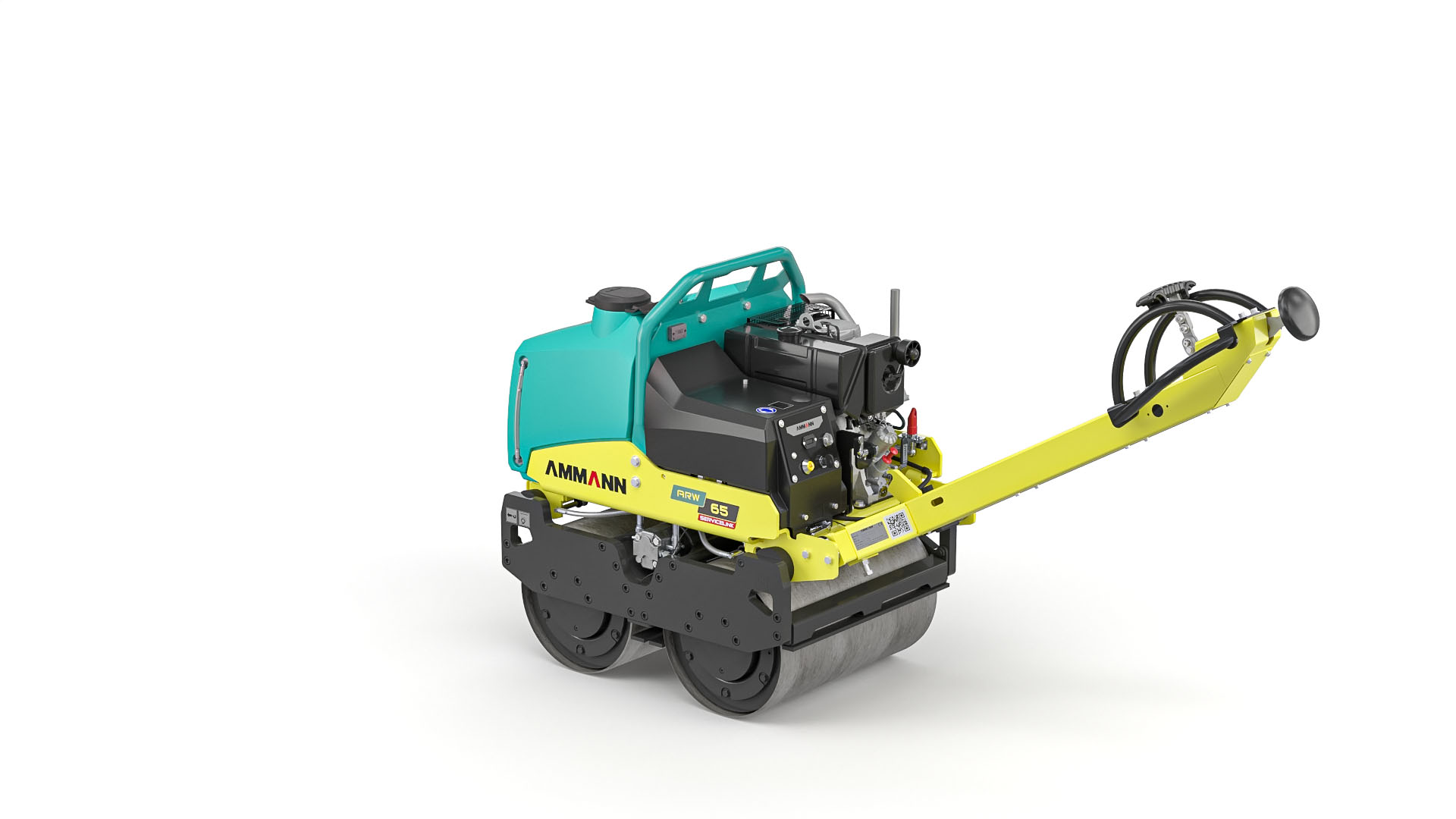

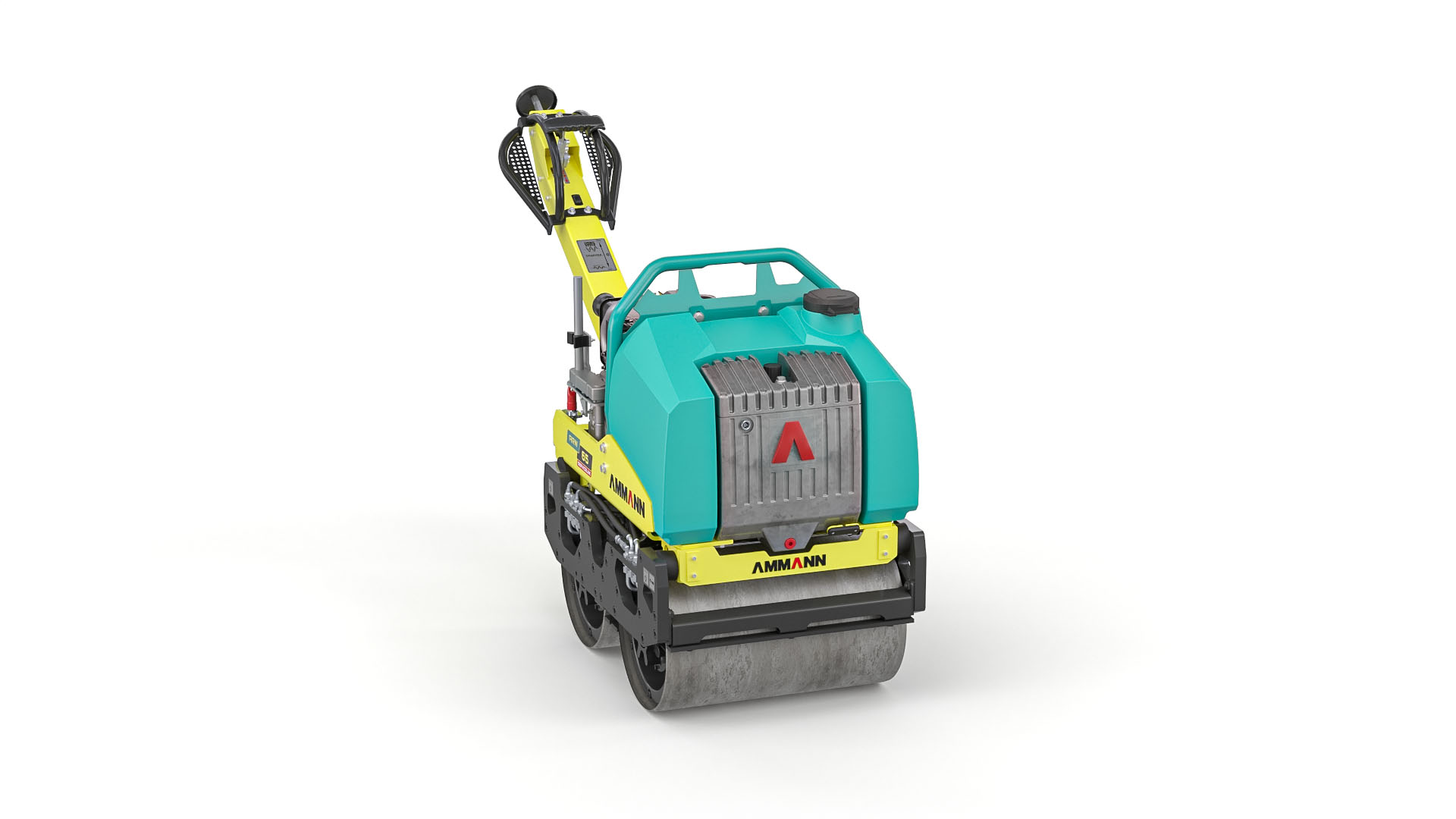

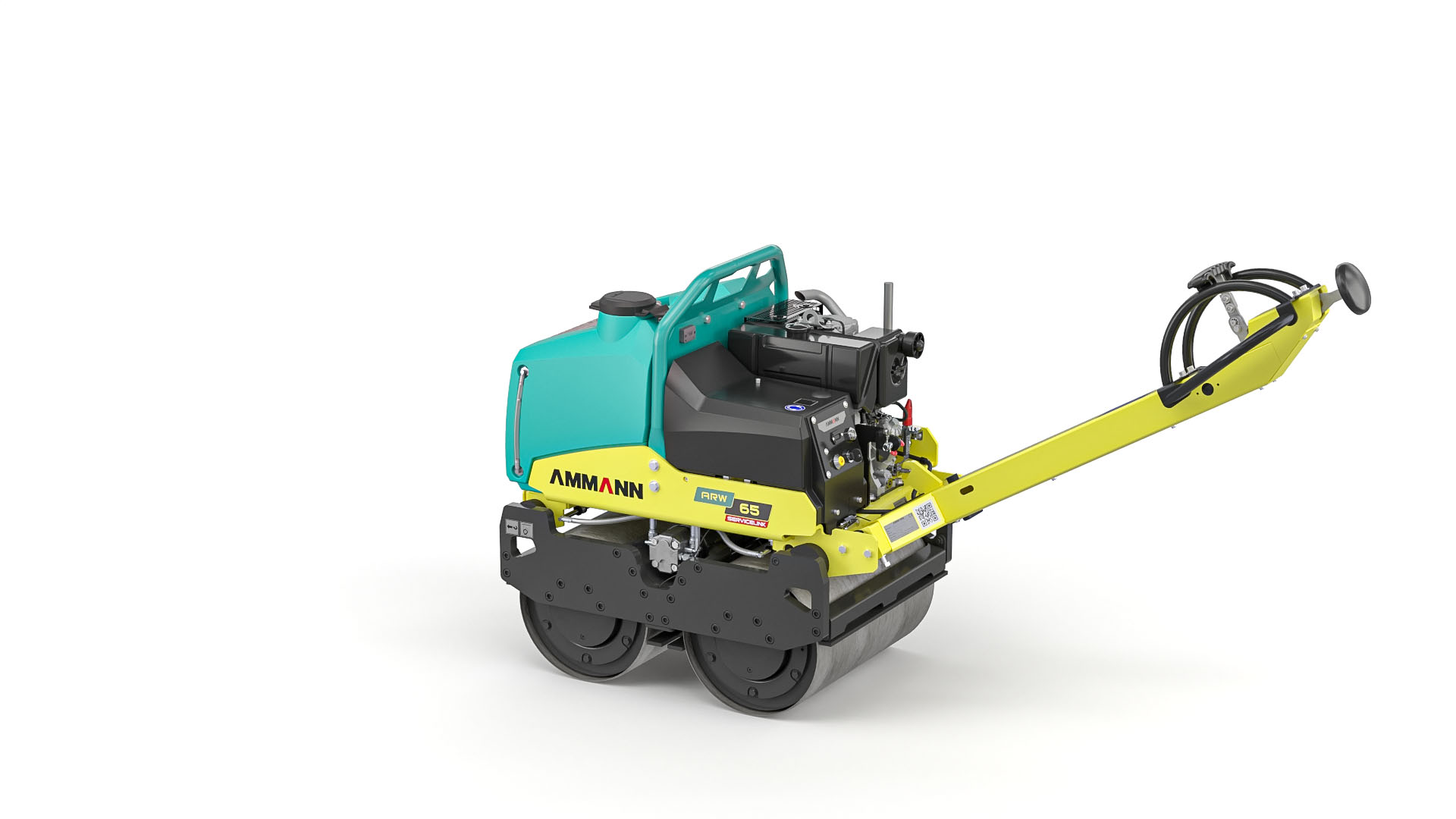

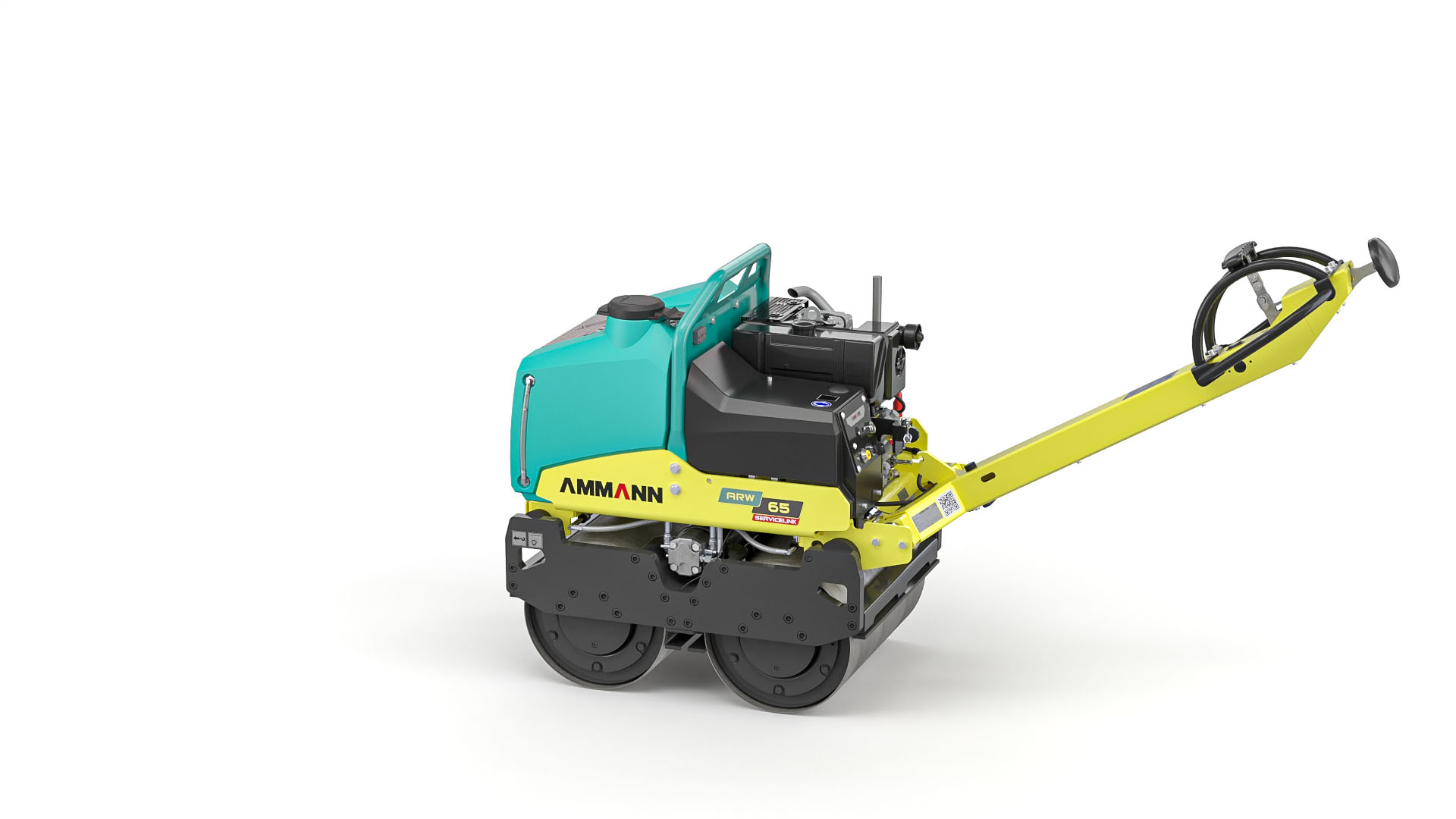

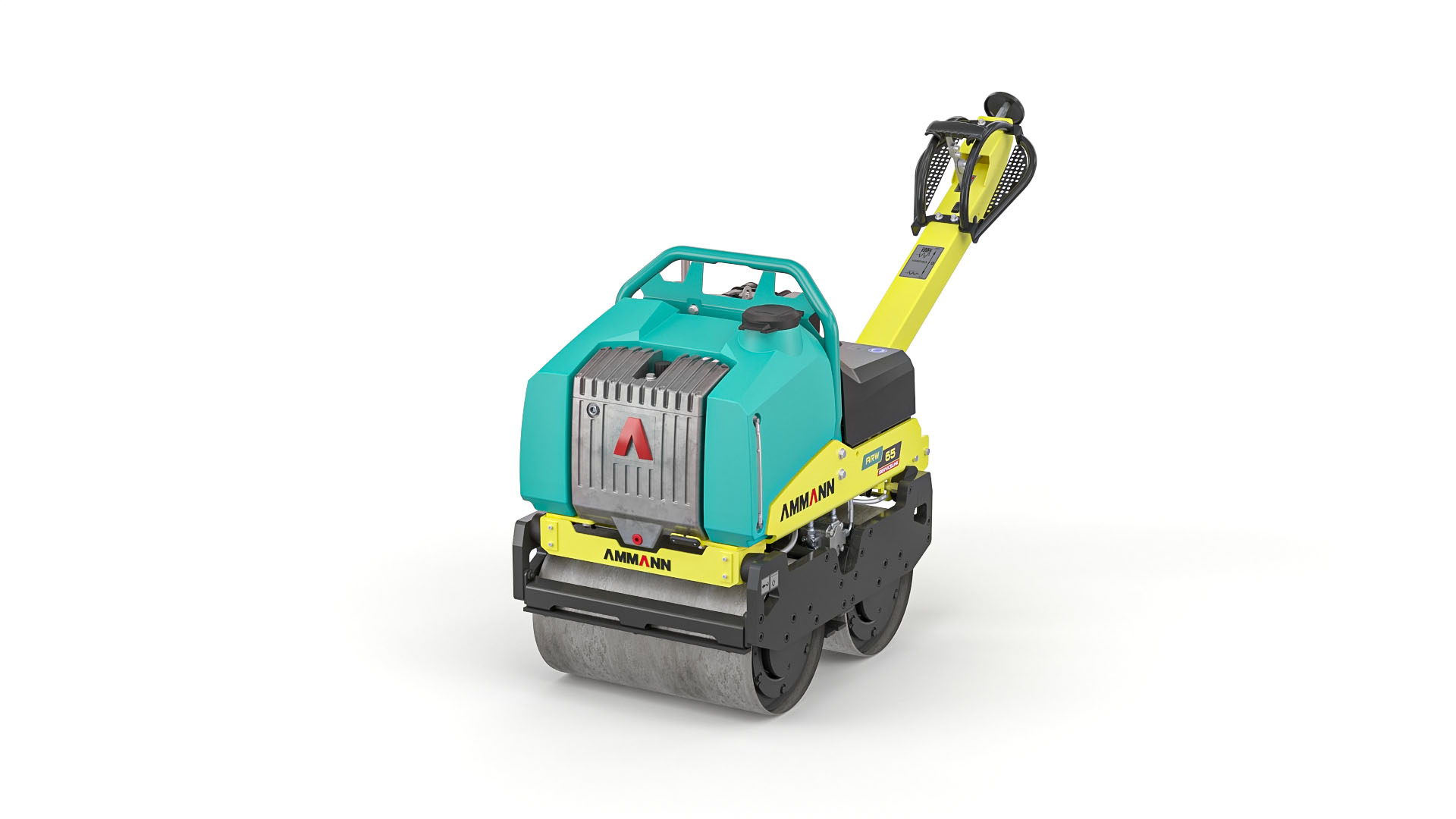

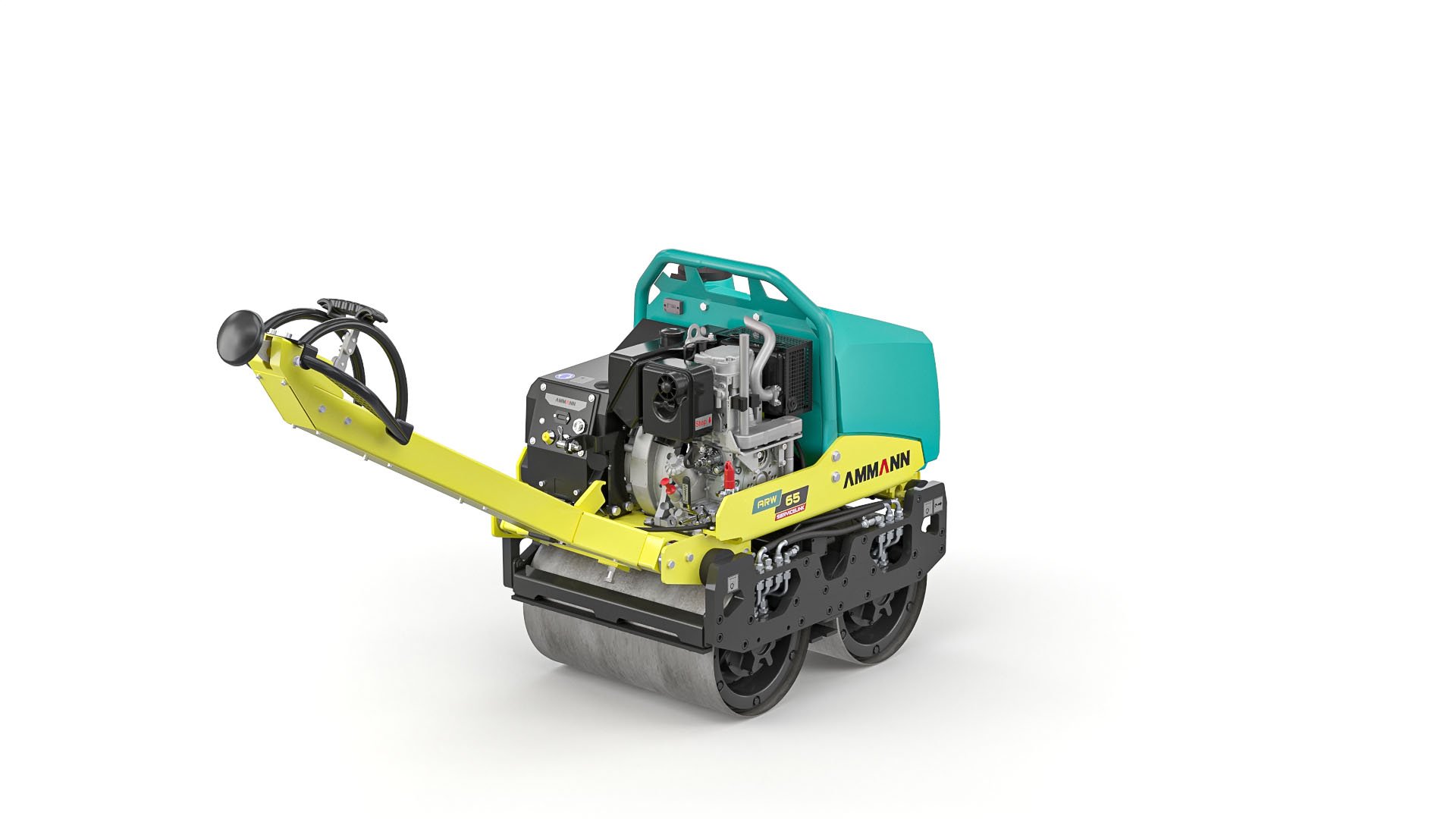

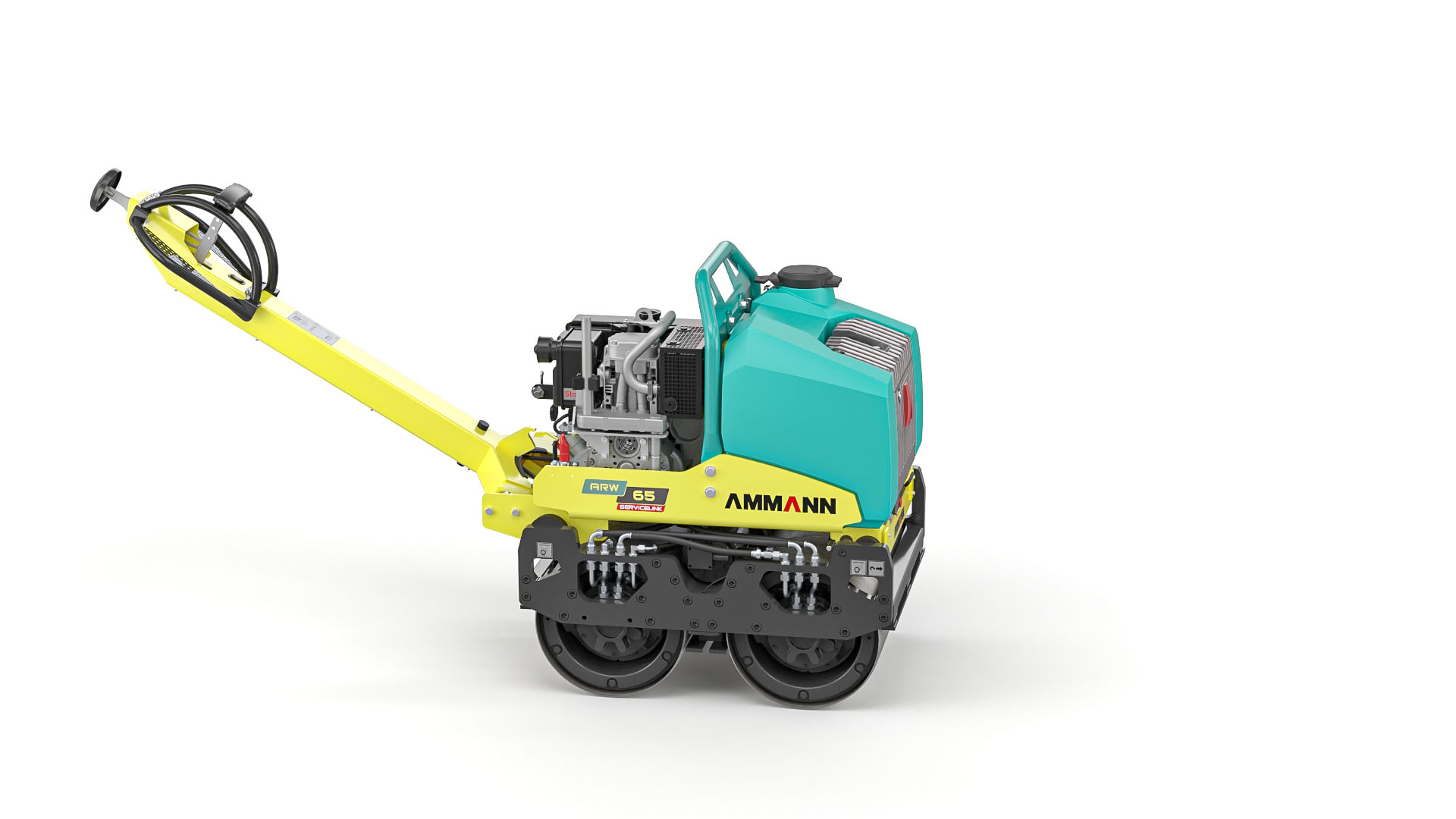

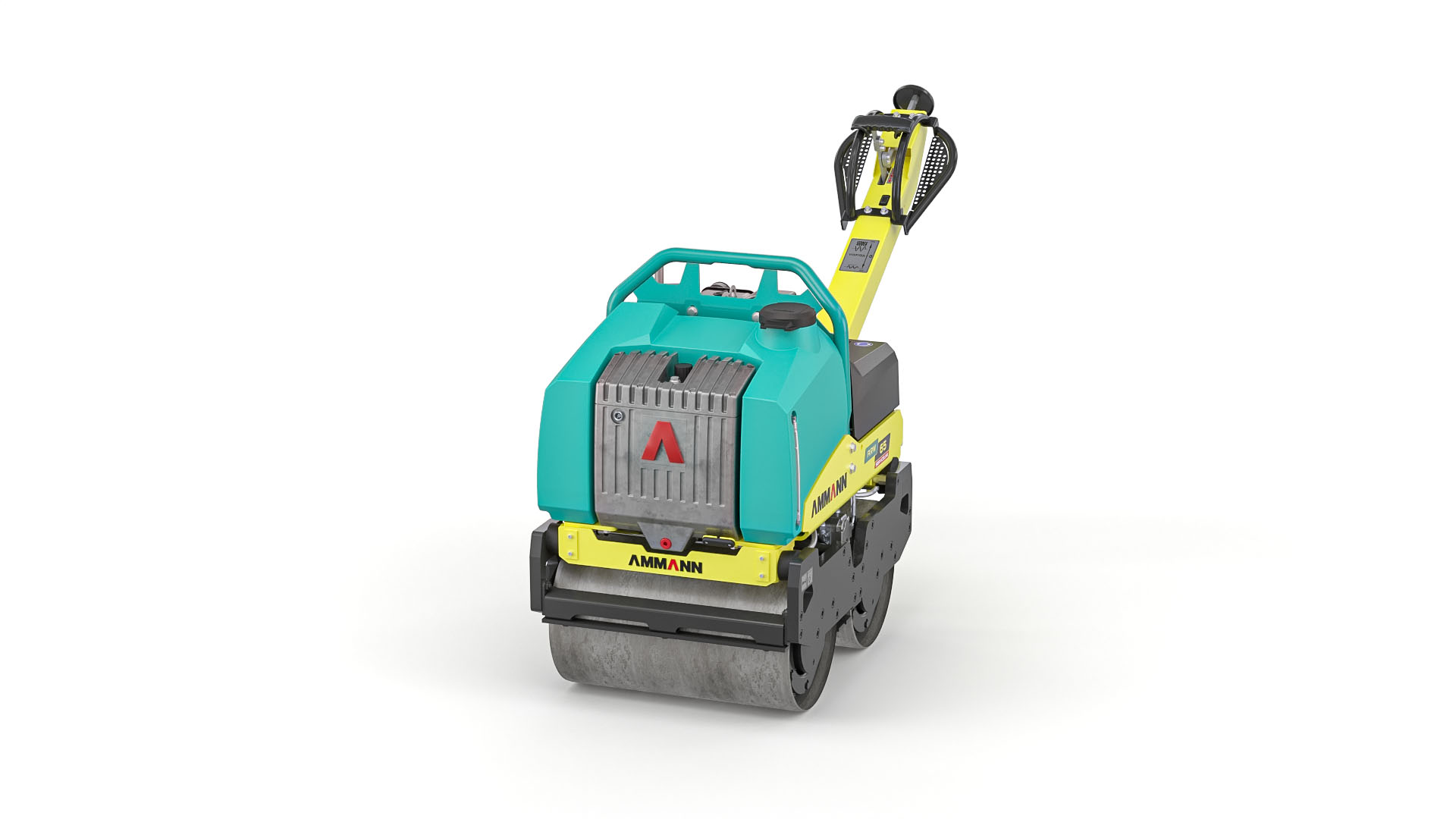

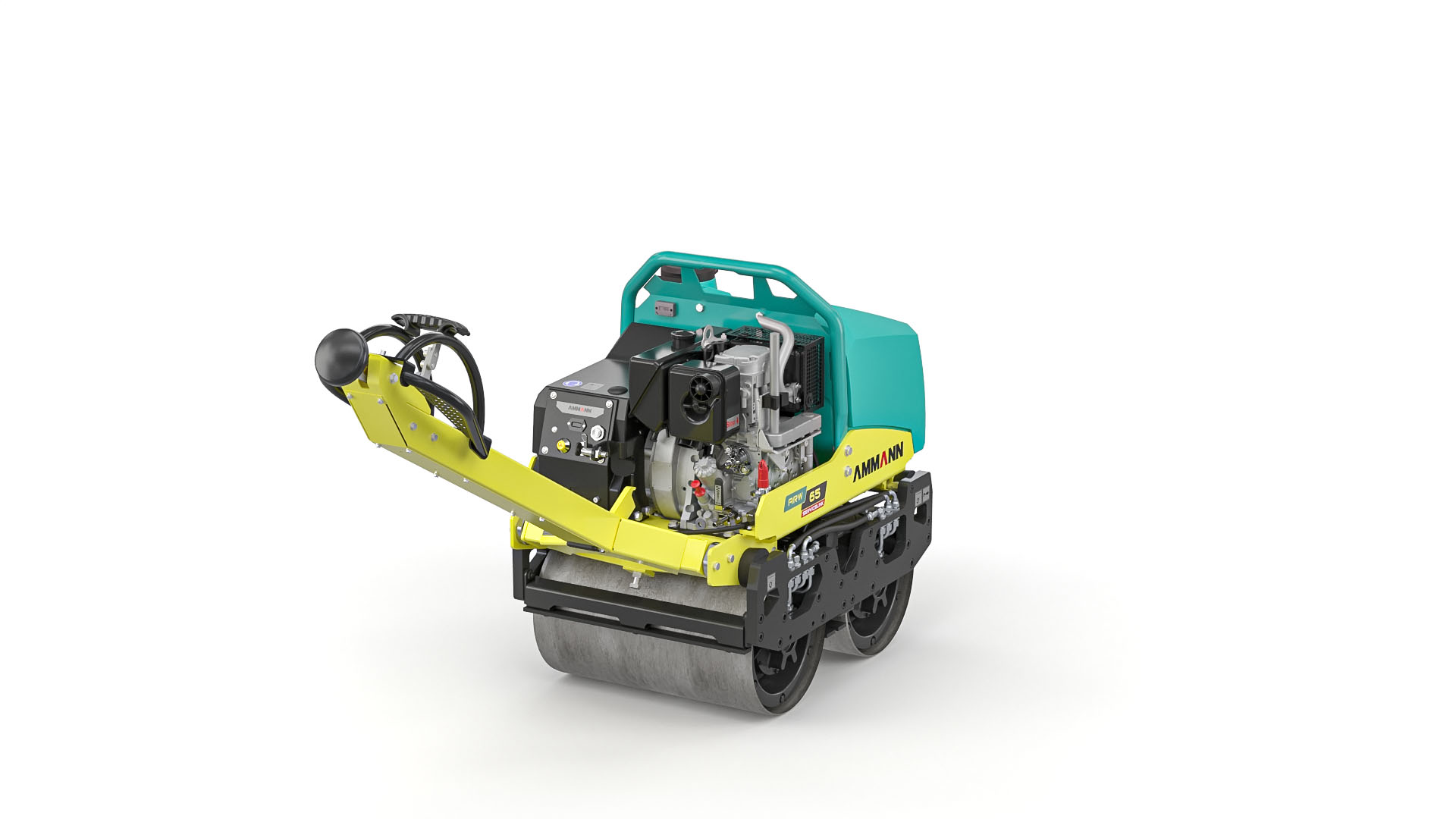

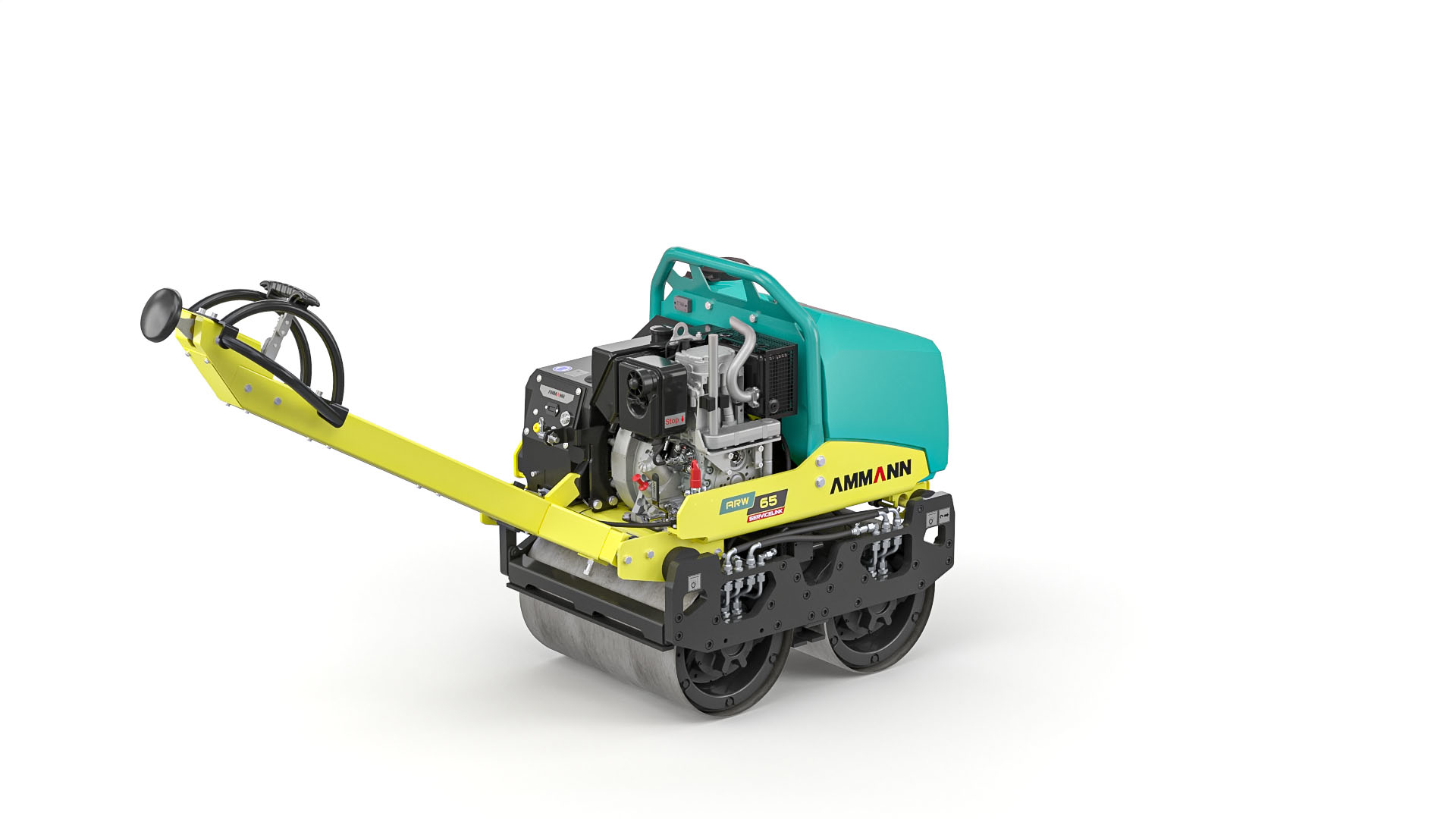

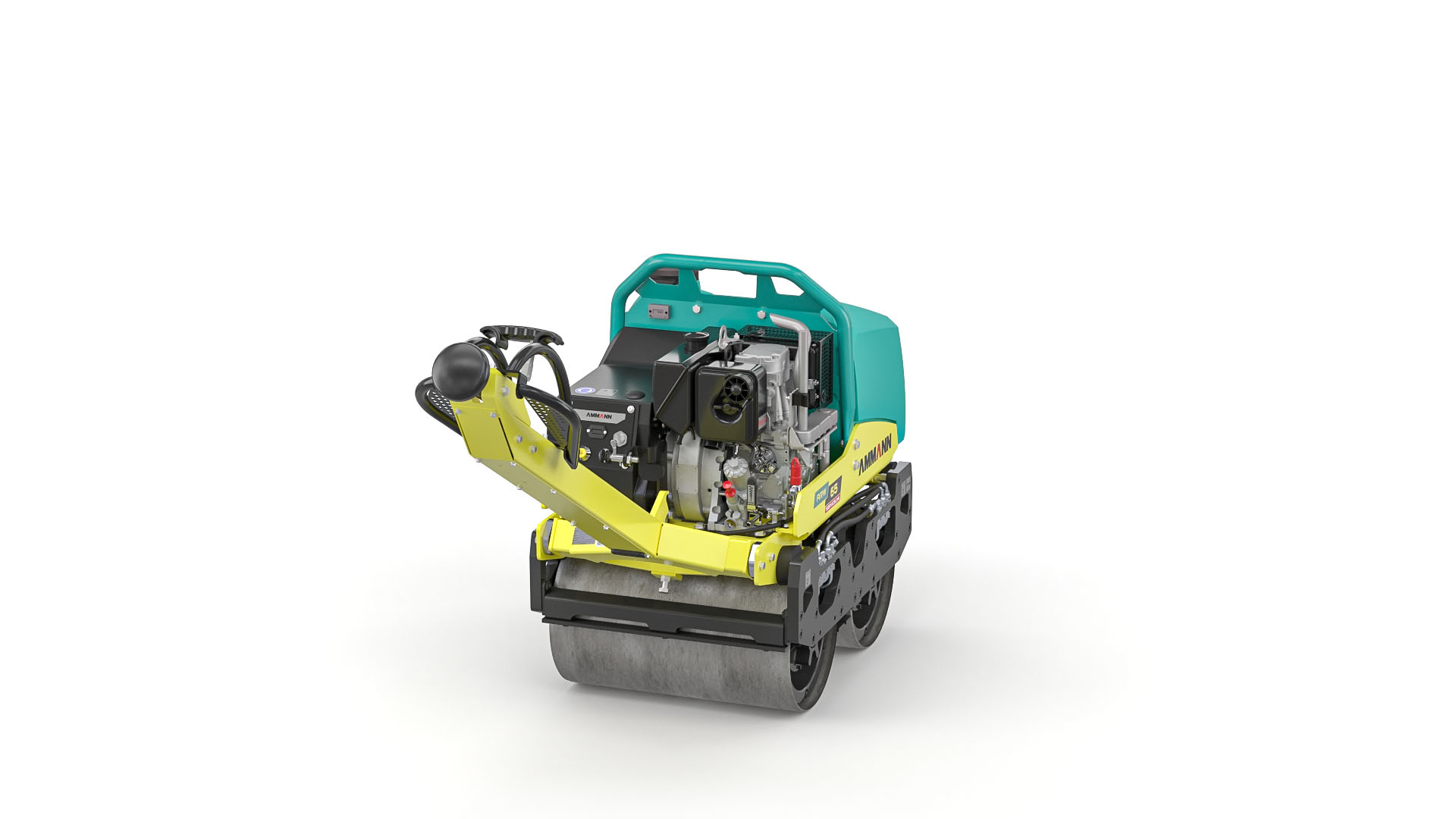

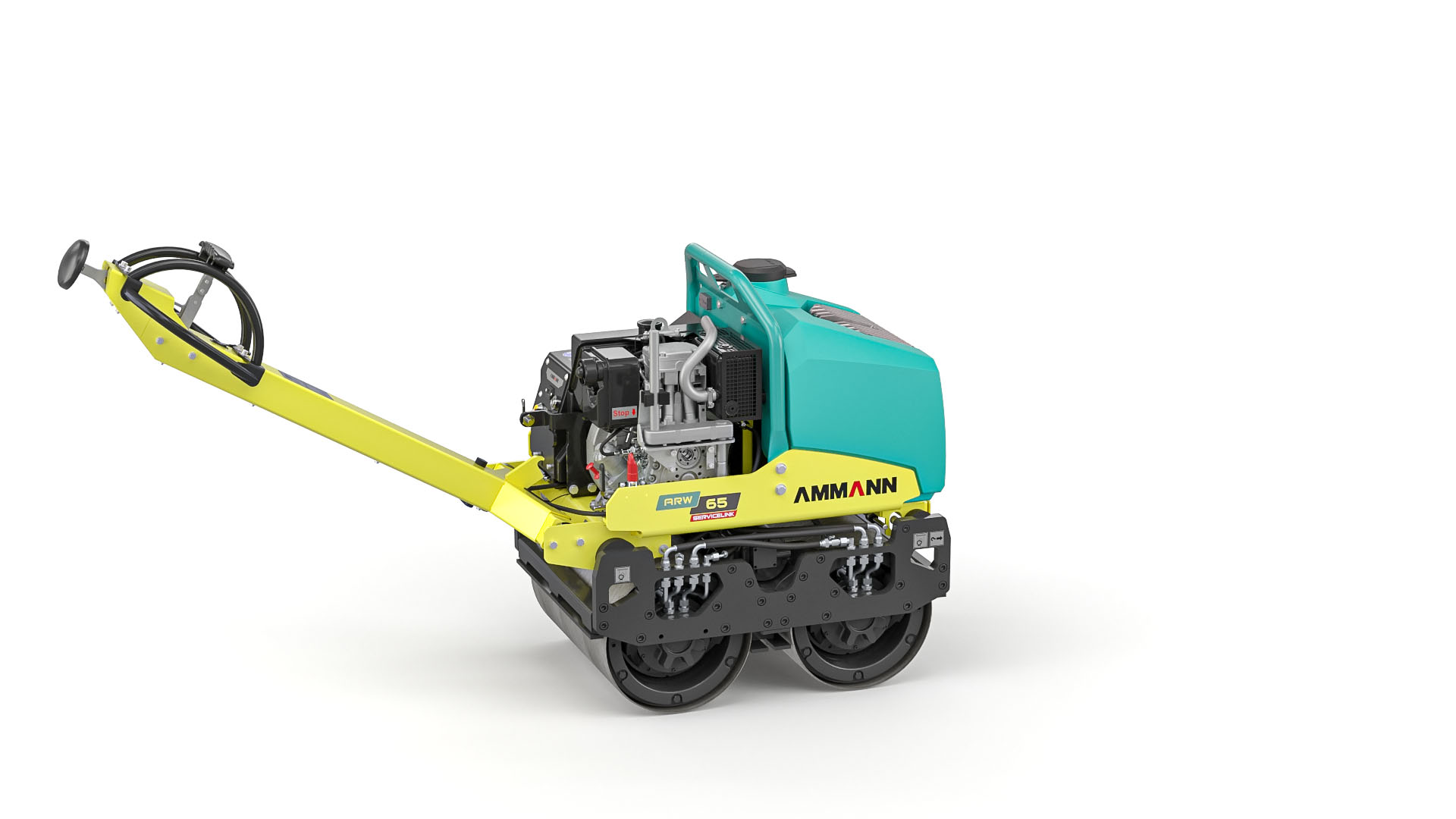

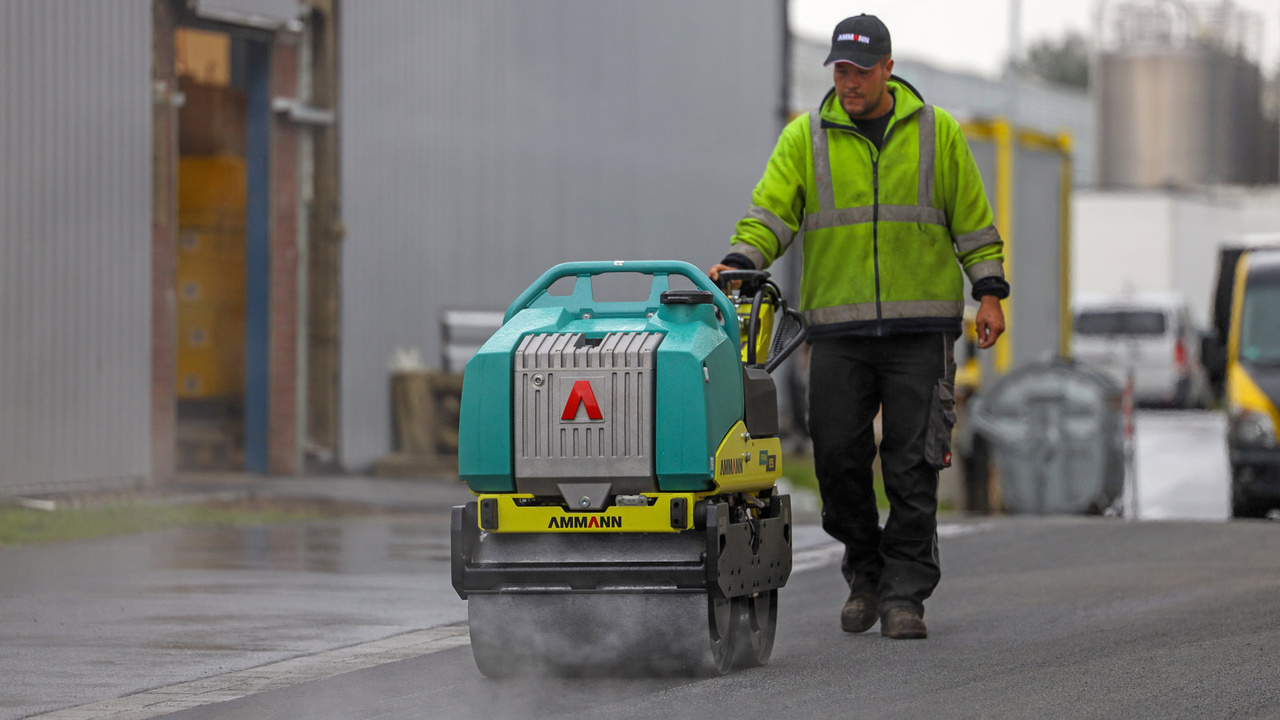

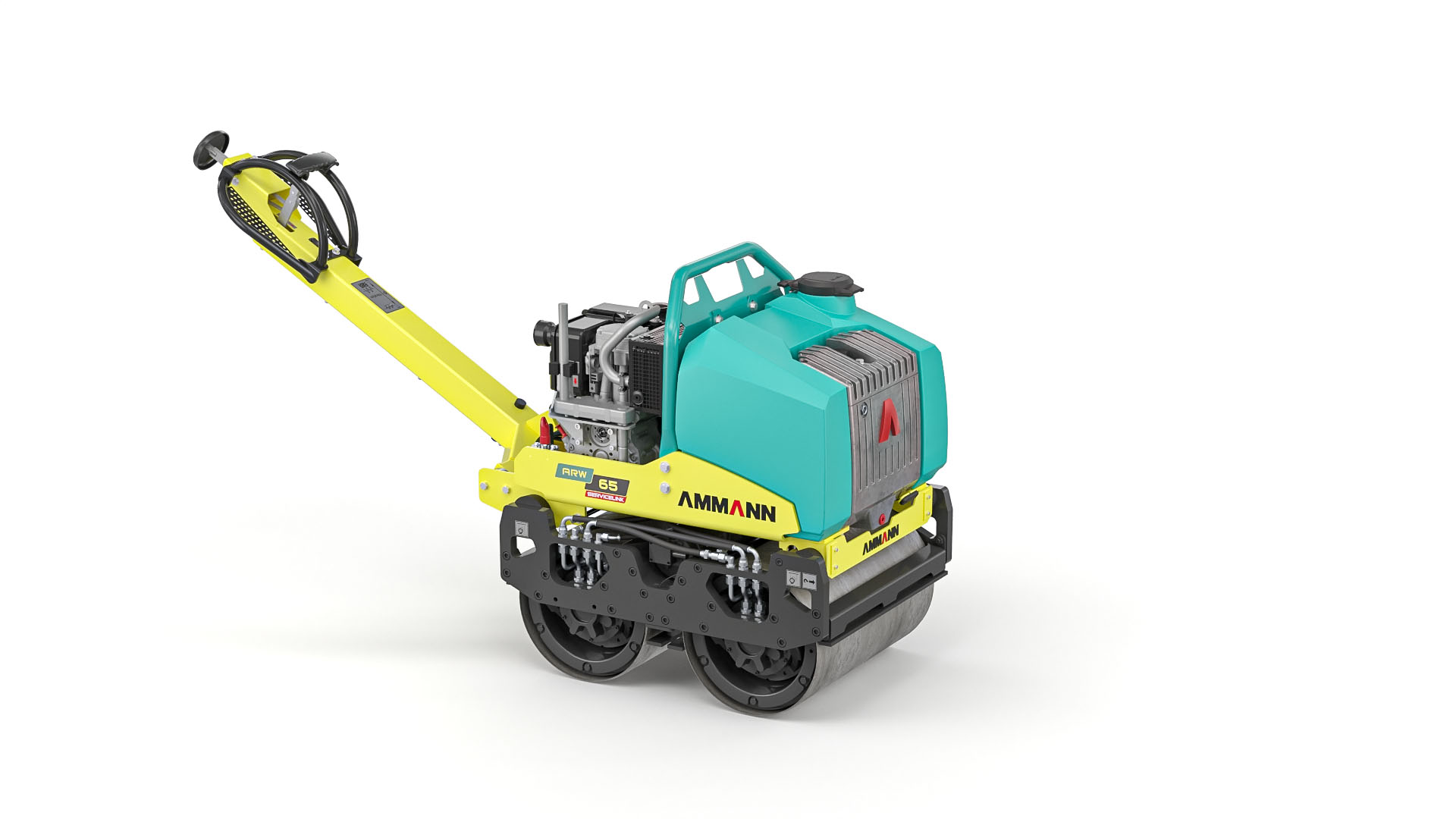

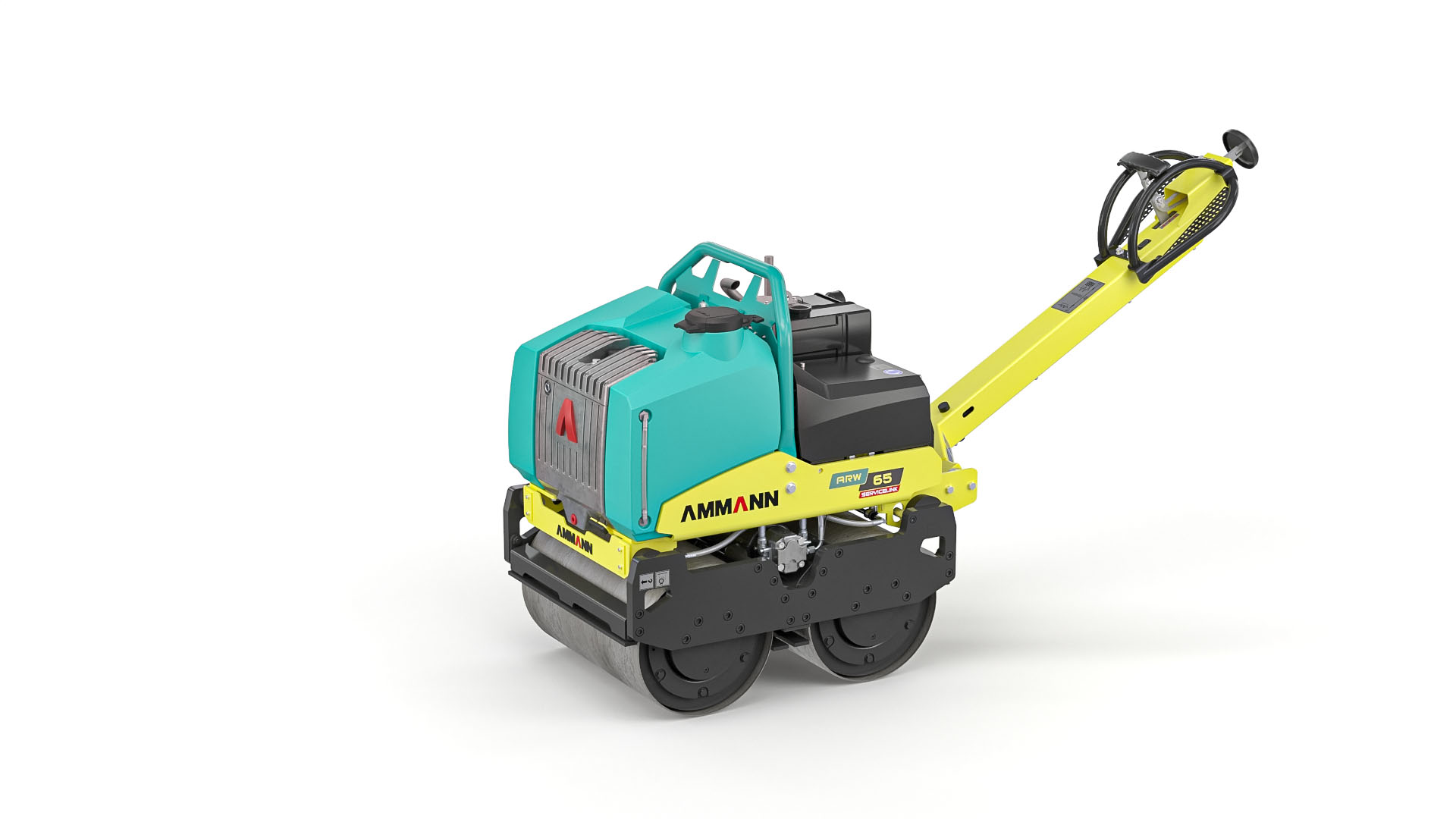

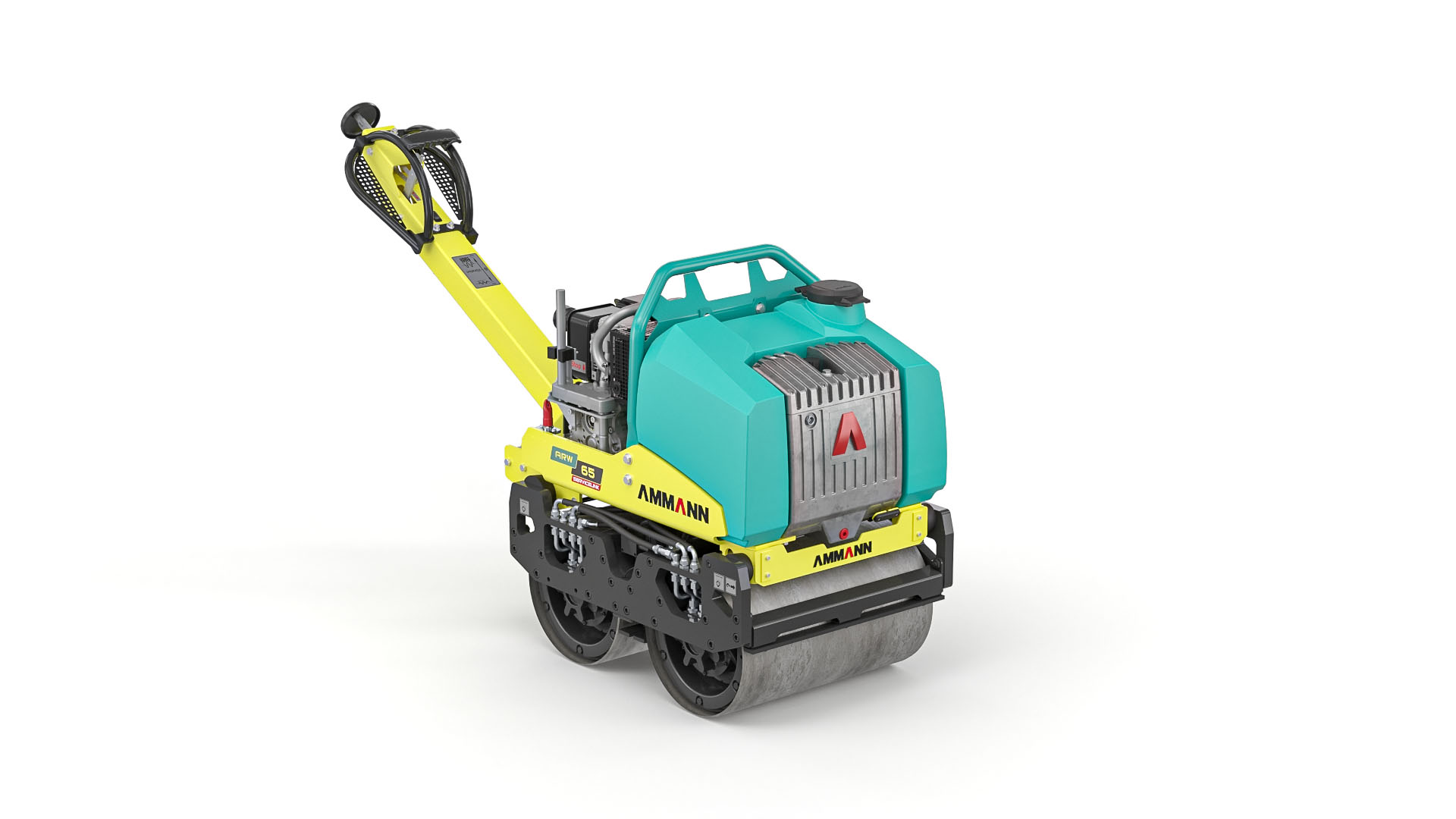

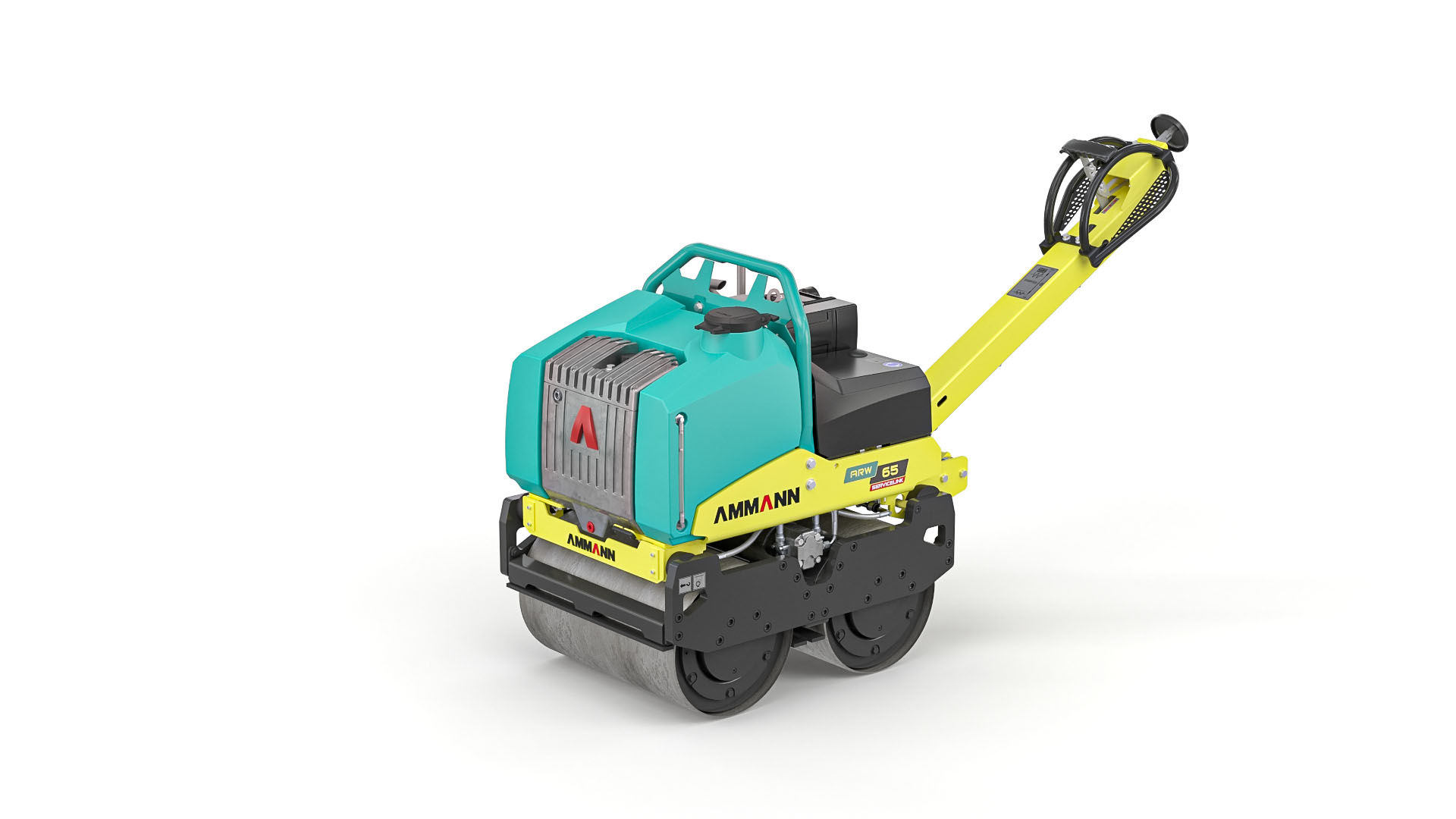

The ARW 65 is one of the most versatile machines on the market. It delivers optimum compaction results on substructures and asphalt surfaces.
Walk-behind vibratory rollers from Ammann offer two applications in one machine. The operator can choose between a high amplitude for working on substructures and a low amplitude for compacting asphalt and bituminous material.

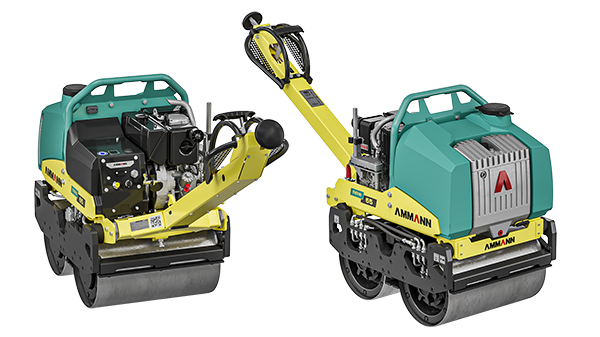

ARW 65 - Walk-behind rollers are available with two different diesel engines.
ARW 65-S - Walk-behind rollers are available with two different diesel and one Petrol engines.
Both are powerful and fulfill the applicable world-wide emission standards.
ARW WALK-BEHIND ROLLERS

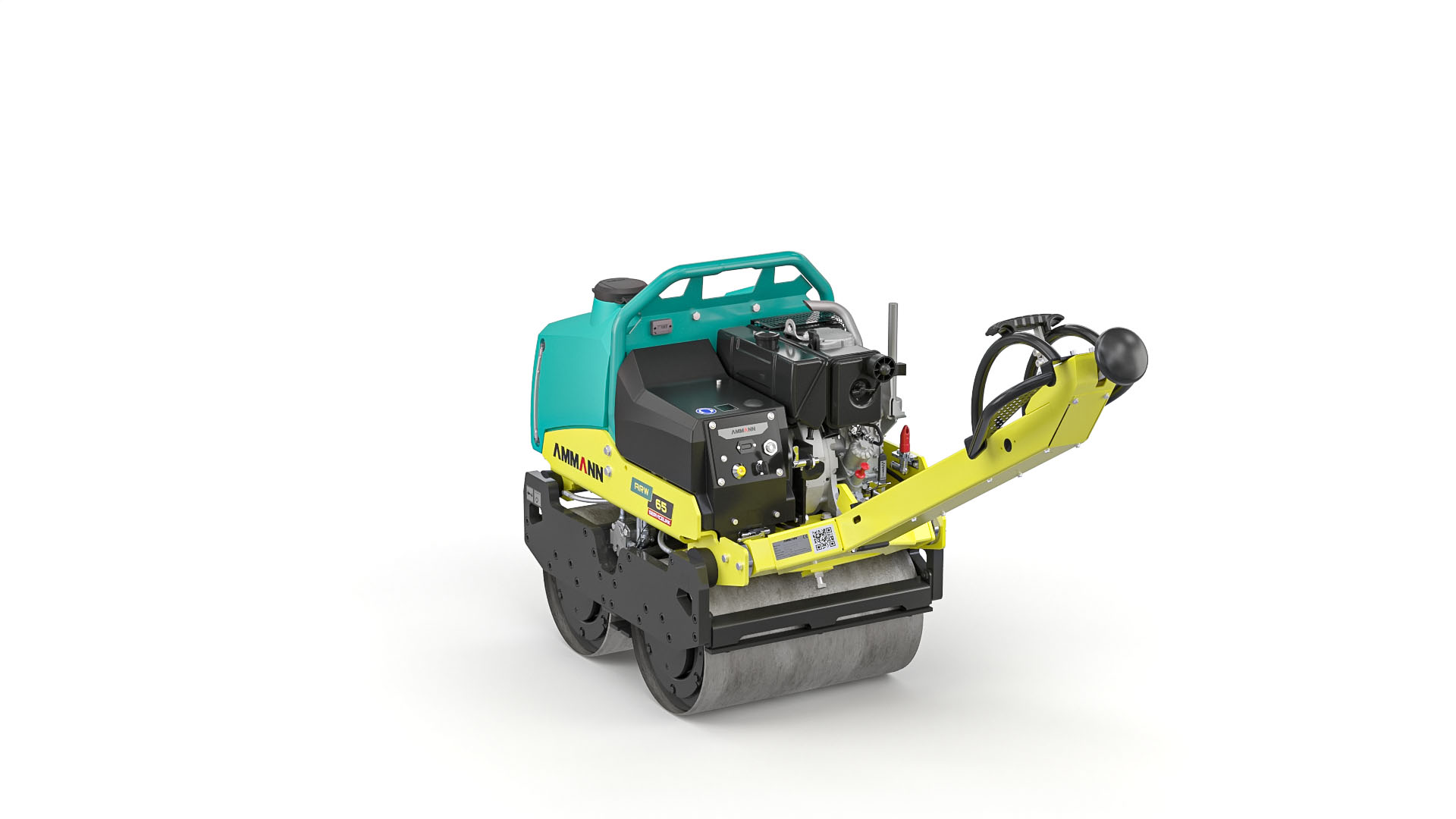

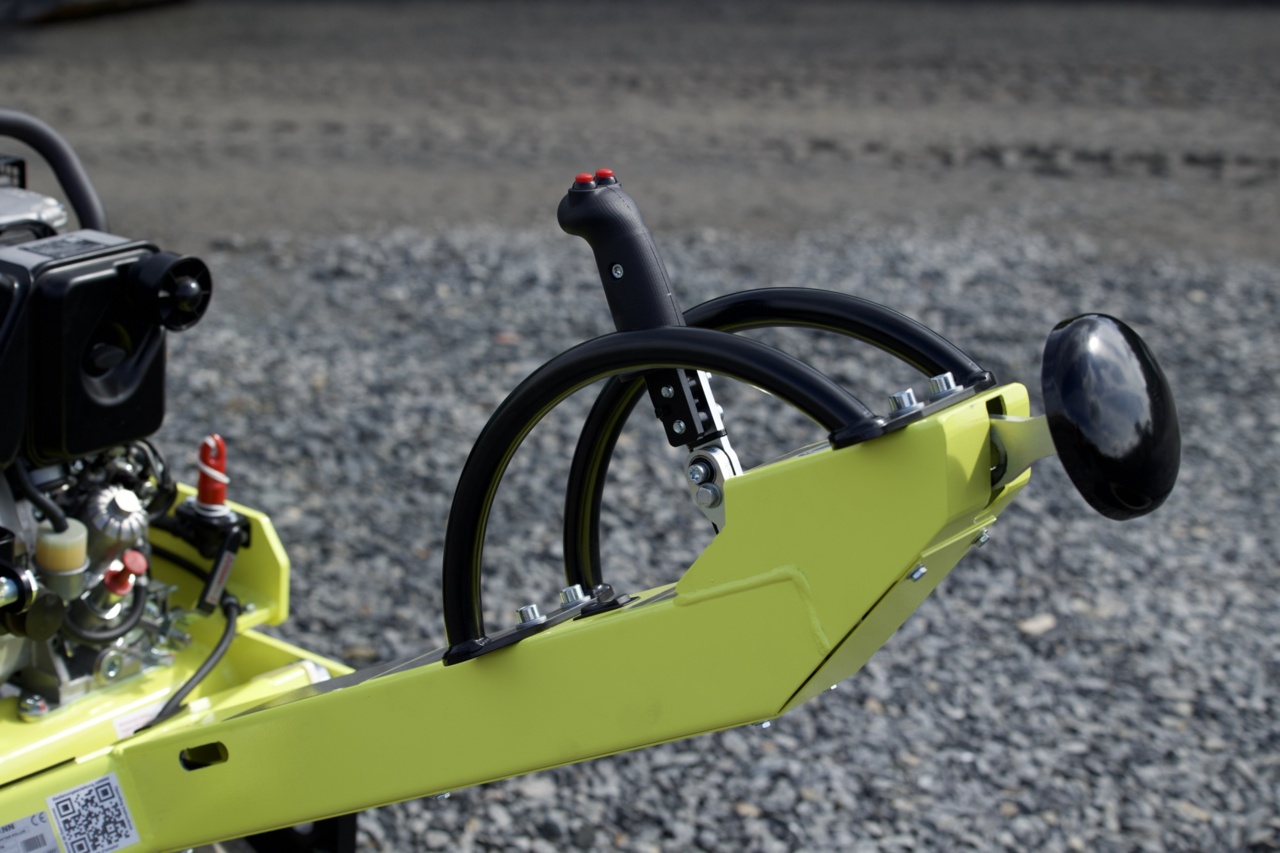

Isolated guide handle
Enables easy control and prevents unwanted vibration from reaching the operator.
Safety first
Safety handle stops machine when operator releases grip and changes direction to forward when the machine comes too close to the operator in reverse mode.
In reverse mode the roller’s speed limit is set to 42 m/min (1.6 mph).

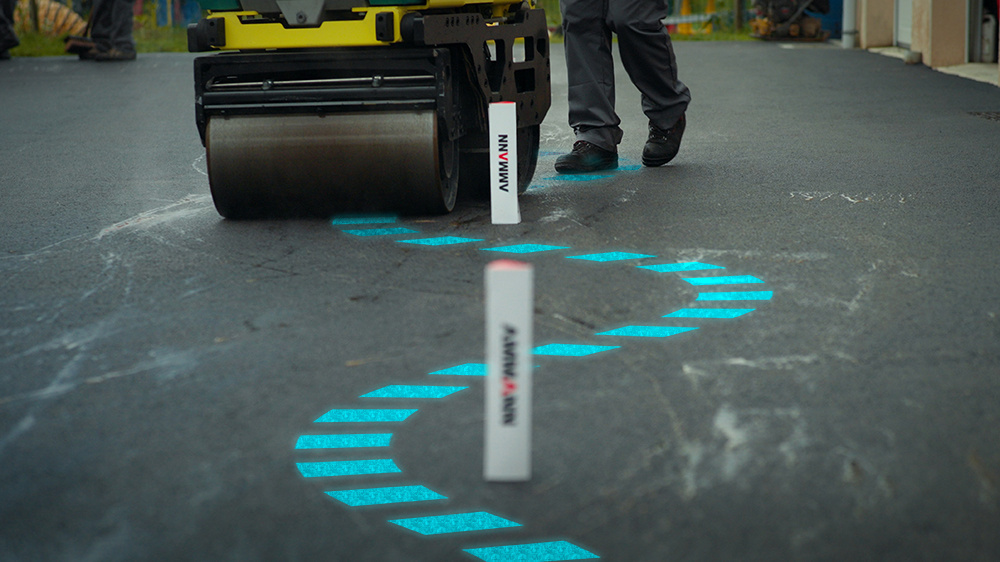

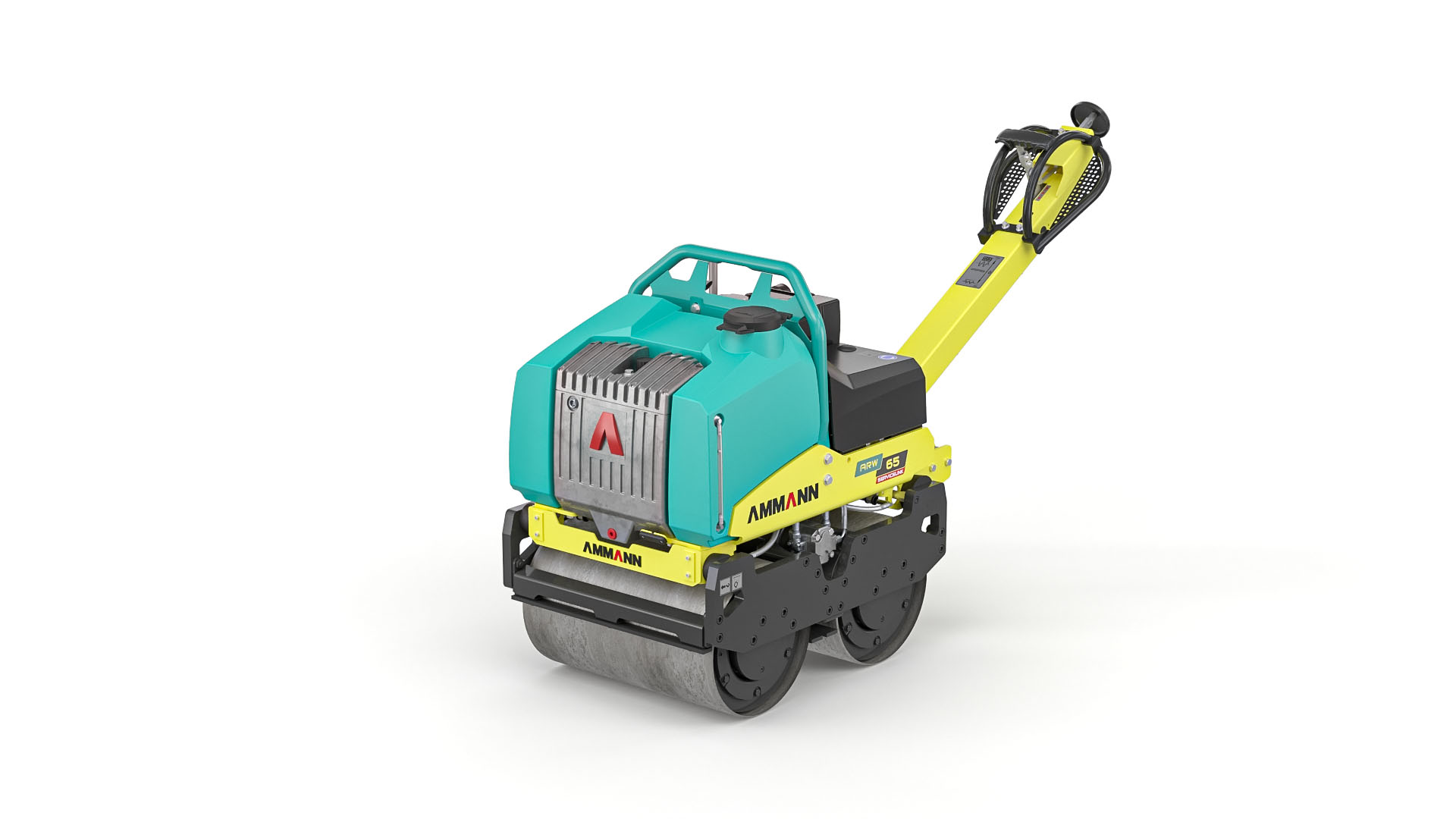

ARW 65-S - 15° steering angle towards the left and right in addition to the forward and backward movement.
ARW WALK-BEHIND ROLLERS

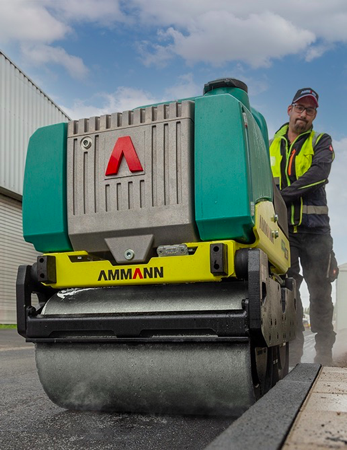

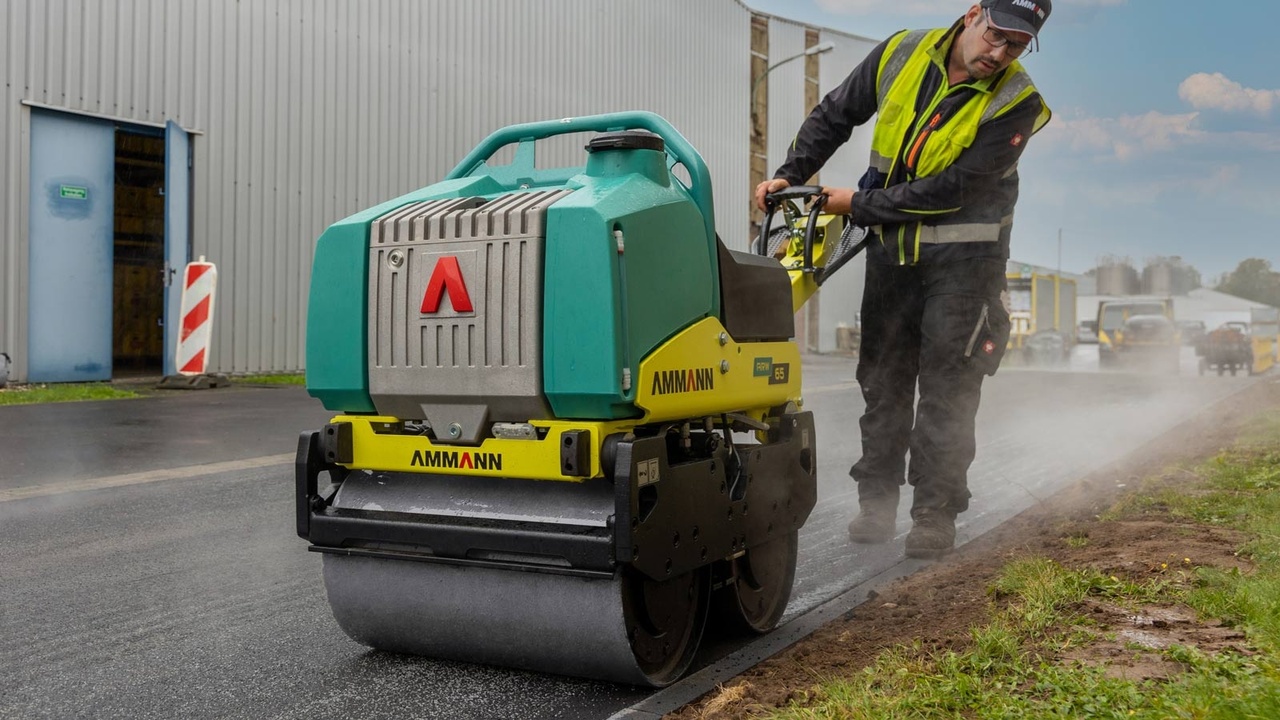

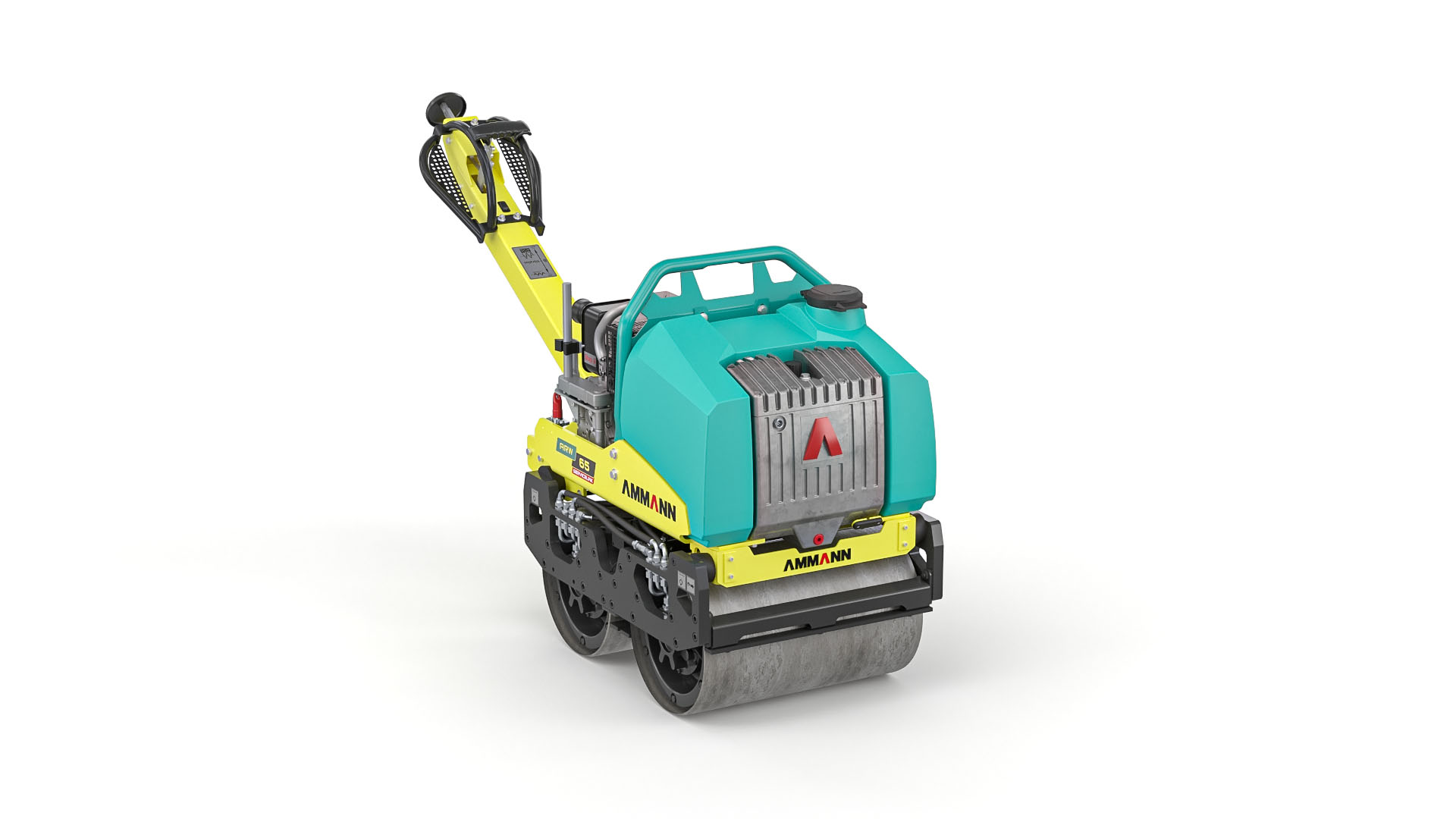

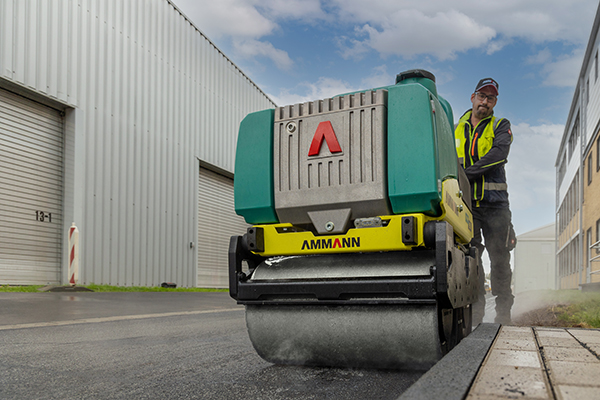

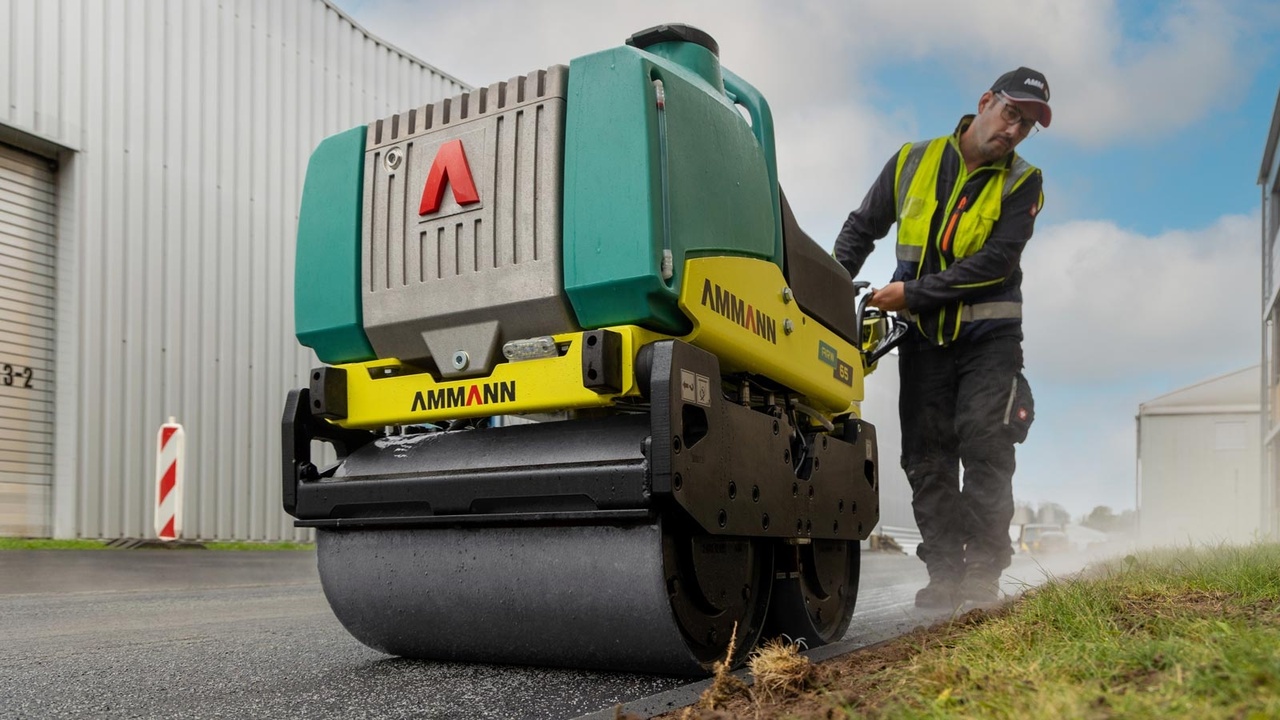

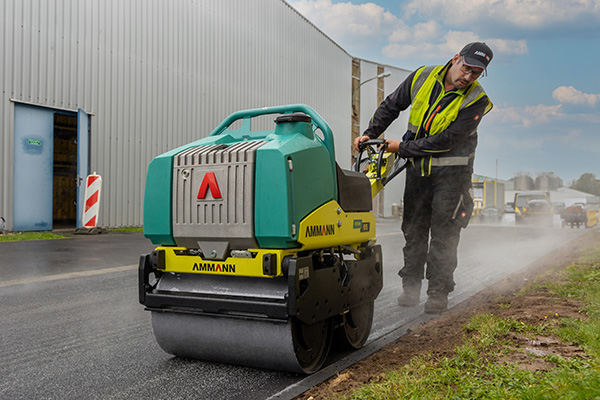

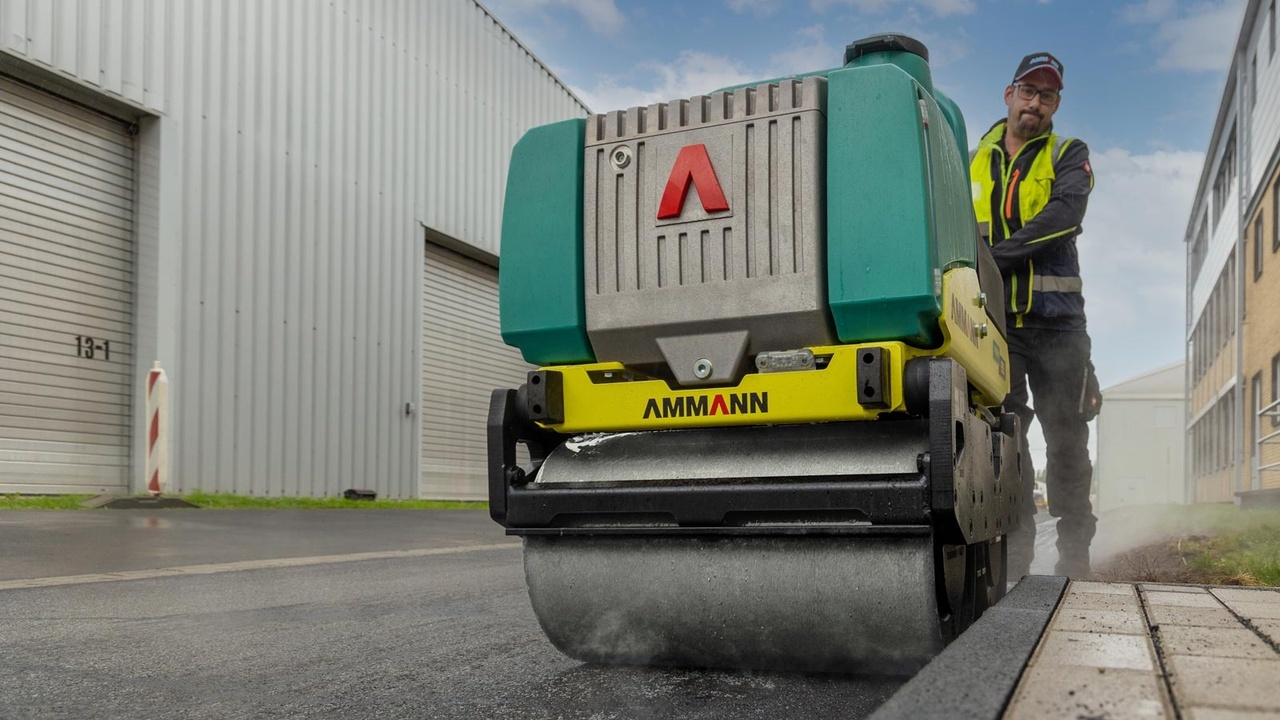

Edge work
The ARW Rollers offer clearance on both drum sides, allowing compaction work extremely close to curbstones, retaining walls and other obstacles.
No extra time-consuming work on edges and in confined areas is needed.
ARW WALK-BEHIND ROLLERS

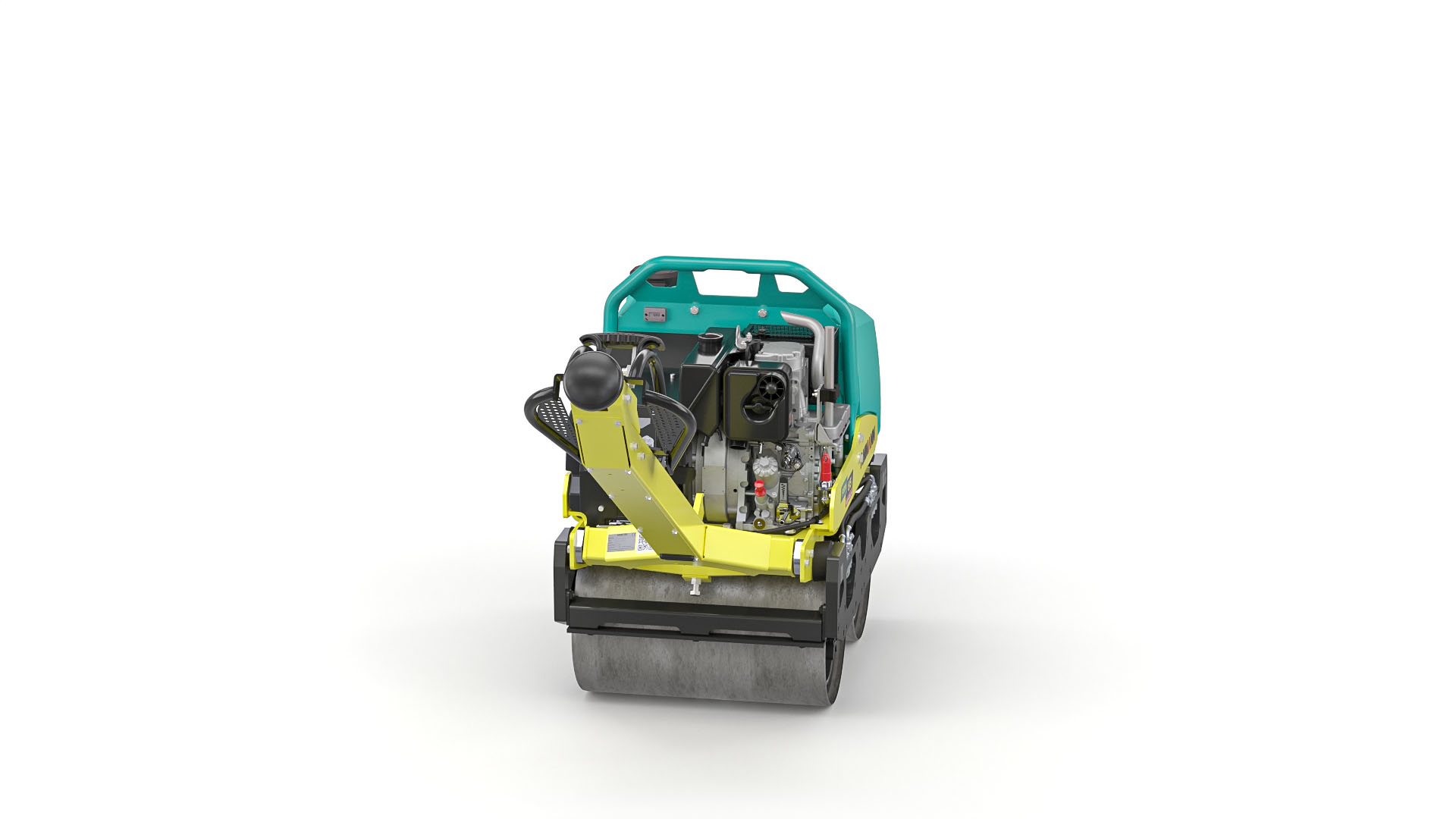

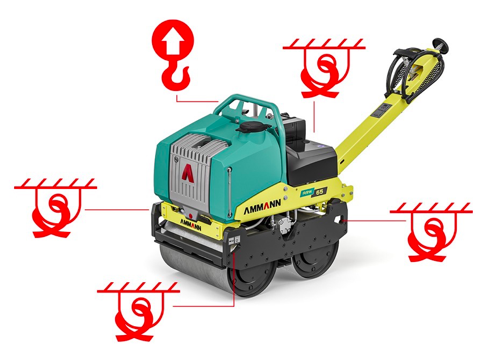

Secure transport & loading
Standard Feature
- Central lifting frame facilitates machine loading operations
- Tie-down slots secure the machine during transportation
Parking brake
An automatic setting prevents the machine from rolling away.
ARW WALK-BEHIND ROLLERS

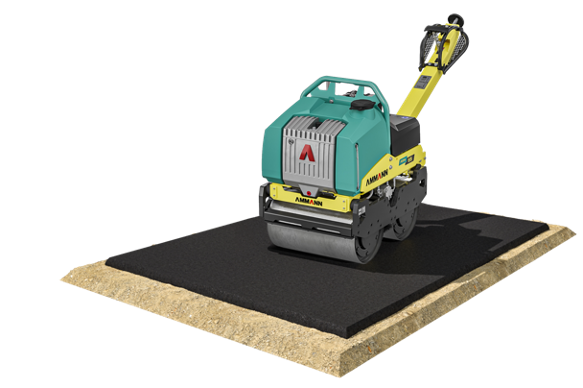

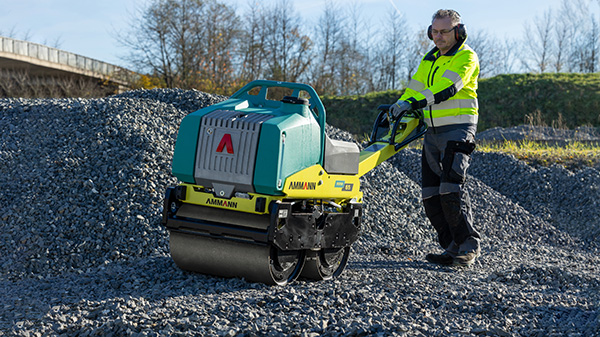

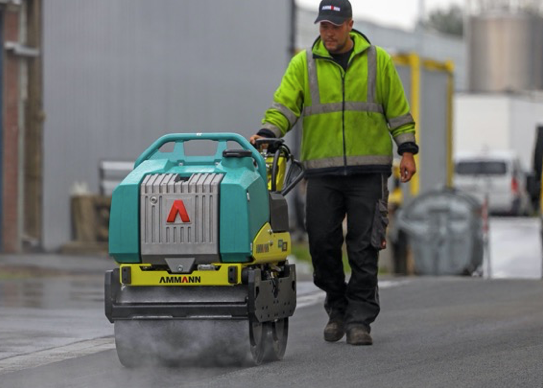

Efficiency on every substrate
The roller is suitable for use on substructures and asphalt surfaces. Adjustable eccentric weights for setting the amplitude and an integrated, generously dimensioned 60-litre water tank as standard guarantee that the machine is always ready for use and can switch quickly from loose substrate to asphalt.
The ARW from Ammann is therefore the ideal addition to any machine pool.
ARW WALK-BEHIND ROLLERS
Powertrain

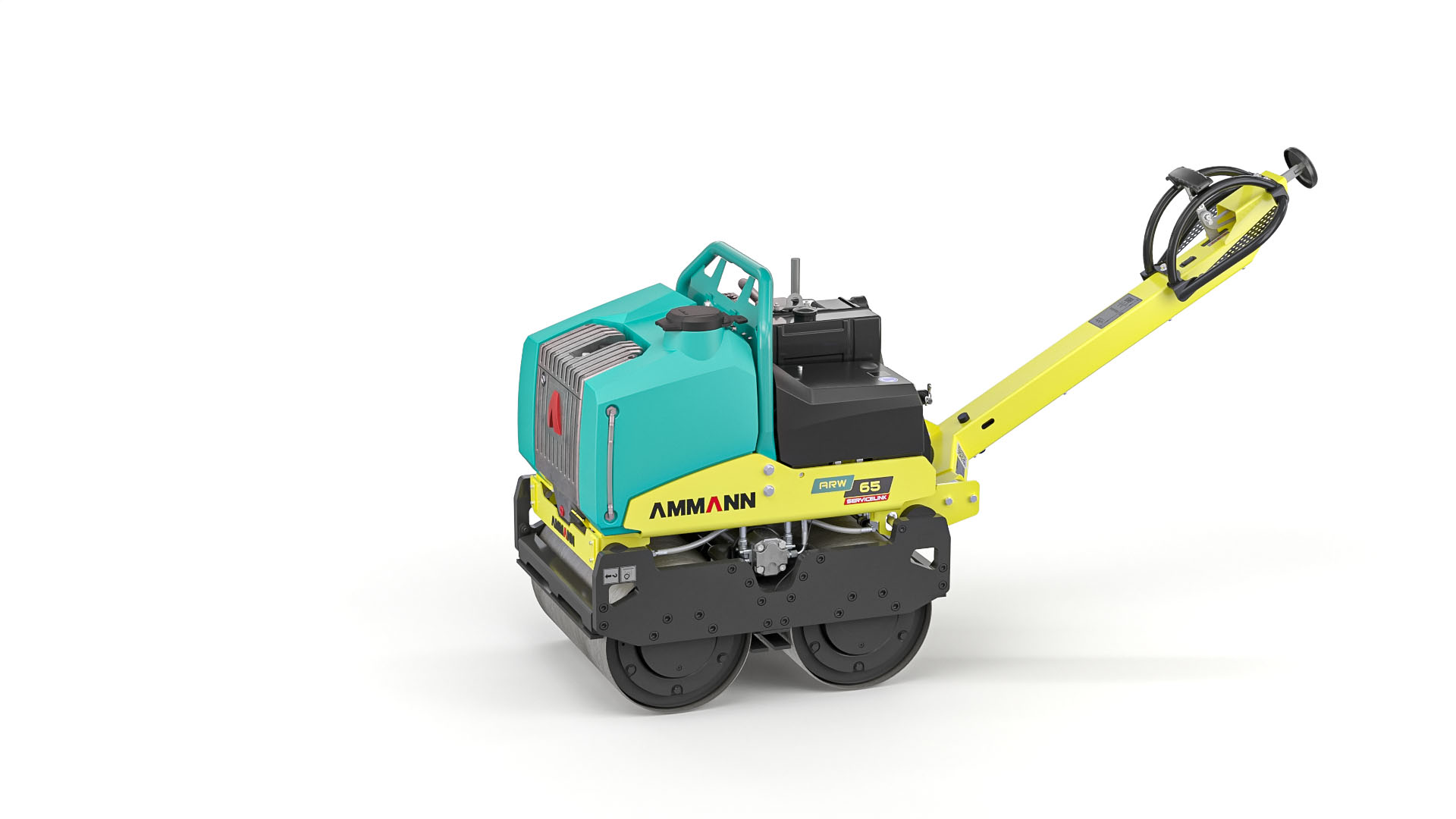

The ARW 65-S is available with engines from Honda (Petrol) and Hatz and Yanmar(Diesel) .
ARW 65-S - The All versions come with an electric starter as standard

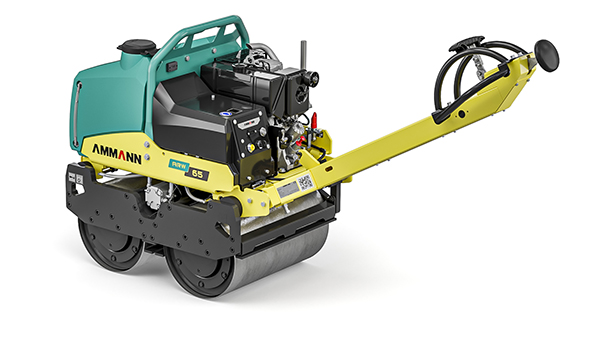

The ARW 65 is available with engines from Hatz and Yanmar.
ARW 65 - The Yanmar version comes with an electric starter as standard.
The Hatz version offers an electric starter as an option.
These powerful diesel engines guarantee good driving properties even in difficult terrain.
Drive System
Delivers high traction and gradeability through individual drive motors in both drums.
ARW WALK-BEHIND ROLLERS

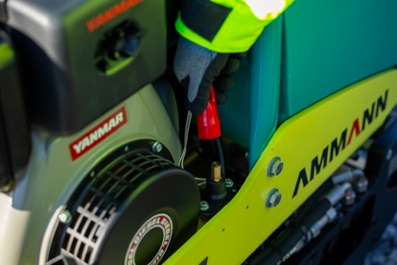

Serviceability
Simplified maintenance work
Daily maintenance work does not require special tools.
Drive without wear parts
The fully hydraulic drive system works without a high-maintenance centrifugal clutch and V belt.
ARW WALK-BEHIND ROLLERS
Productivity
Quality and productivity are prerequisites for good construction machines. Ammann machines offer both and stand out through ease of operation.

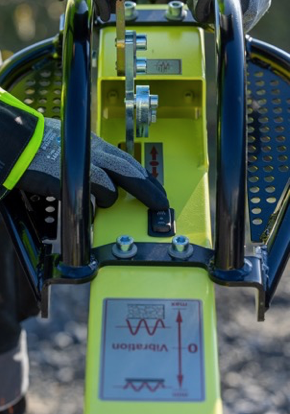

2 Amplitude settings
Enables different applications such as asphalt work or compaction work on substructures or nonbonded base layers.
Fully hydraulic machine
The hydraulic drive ensures variable speed adjustment and smooth starting/stopping action – essential when working on asphalt
Good side clearance
Precise working next to walls and kerbs.

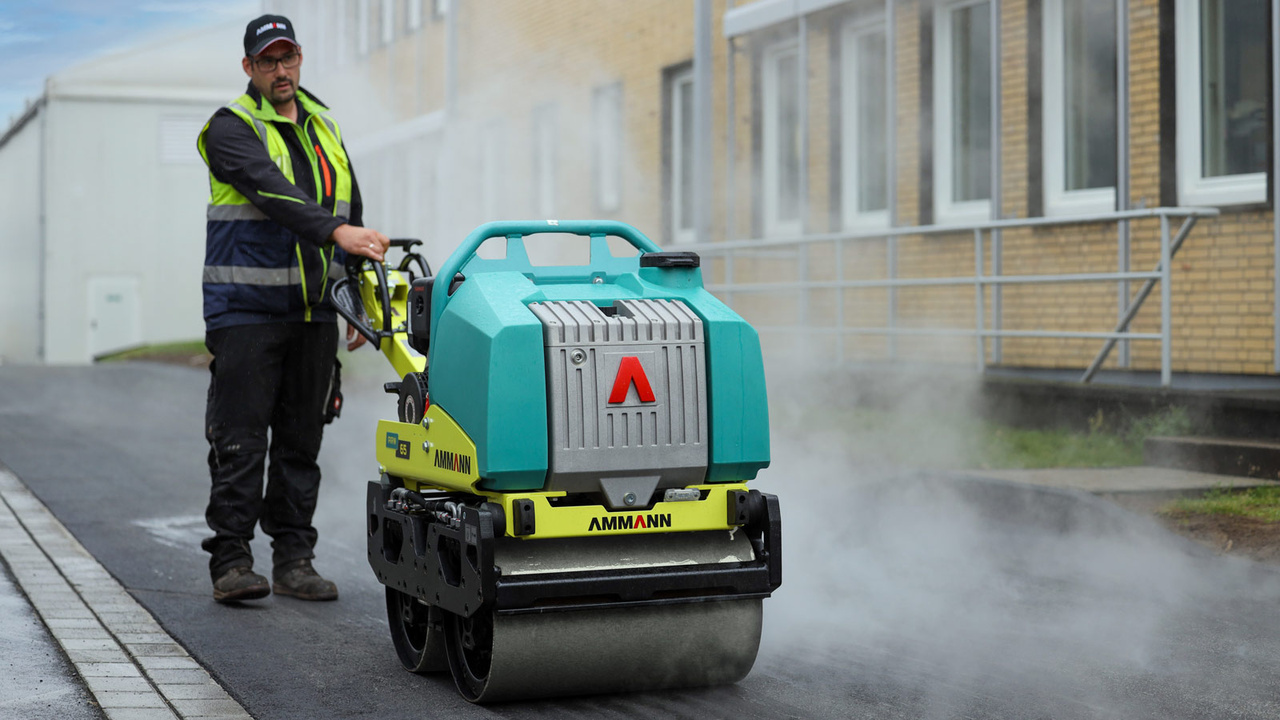

Integrated sprinkler system
Prevents asphalt from caking on the drums.
ARW 65-S - The effortless lateral movement, enabled by the 15° steering angle that allows movement in every direction, is a significant advantage. Body weight is not required to direct the machine, which is often the case with competitive models. This improvement keeps operators fresh, eliminates surface irregularities, and provides consistency throughout the shift.
ARW WALK-BEHIND ROLLERS

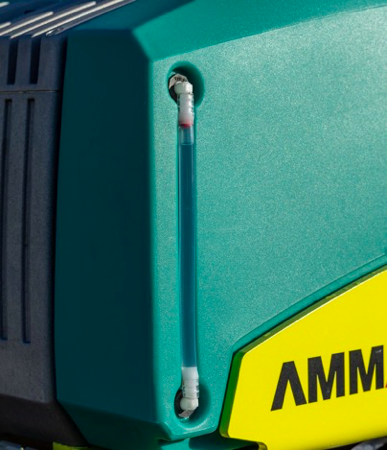

Water level indicator
On Asphalt
- Operators will appreciate the water level indicator located on the left front side
- Easy to check the water supply when working on asphalt
ARW WALK-BEHIND ROLLERS

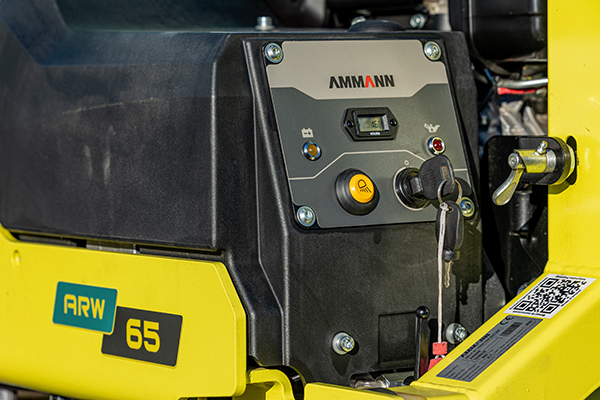

Control panel
The new control panel features an expanded display with hour counter and water sprinkling system on/off switch positioned within easy reach.
Hours- run meter (optional)
The next service date can be scheduled well in advance thanks to a continuous display of hours run.
Electric start (standard on the Yanmar version, optional on the Hatz version)
Starting the machine is easy with the E-starter. Cranking the machine before starting work is no longer necessary.
